Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Green
SKU: #378044
Part: #HBL400MGN
UPC: 783585112299
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Green
SKU: #378044
Part: #HBL400MGN
UPC: 783585112299
Description

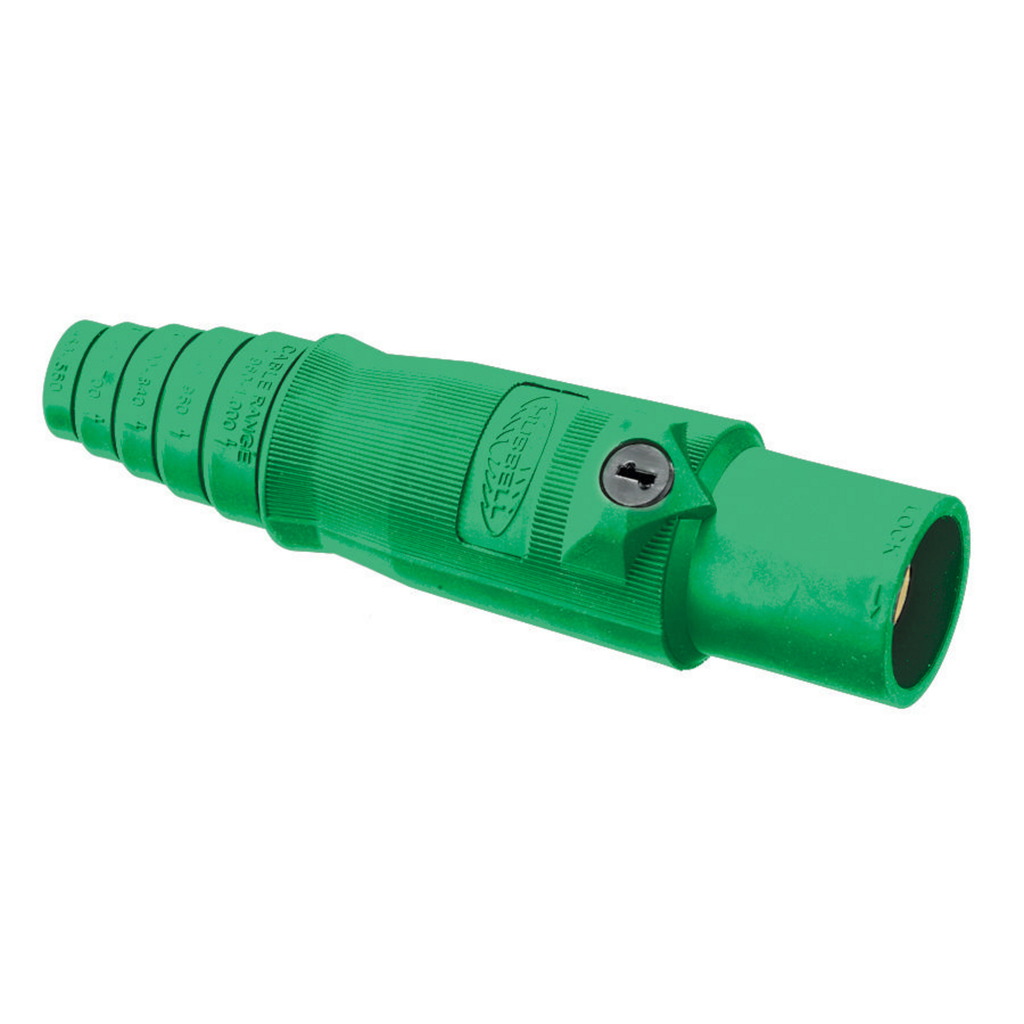

Heavy Duty Products Single Pole Male Plug 400A 600V AC/DC
This industrial-grade single pole male plug is designed for high ampacity connections in electrical distribution and wiring applications. It supports a 400 ampere current rating with voltage capability up to 600V AC/DC, making it suitable for heavy-duty power connections. The device features a single conductor with double set screws for secure wiring and is cord mounted with a Listed SC/PPC type cord. Its composite material housing and green color provide durability and easy identification in electrical installations.
Specifications
- Amperage Rating: 400 A
- Voltage Rating: 600V AC/DC
- Number of Poles: 1-Pole
- Number of Wires: 1-Wire
- Connection: Pressure Terminal Screws
- Mounting: Cord Mounted
- Cord Type: Listed SC/PPC Type
- Material: Composite
- Color: Green
- Width: 2.5 in
- Product Weight: 0.7 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- Manufacturer: Bryant
- Manufacturer Part #: HBL400MGN
- UL Enclosure Types: 3R, 4X, 12
- Industry Standards: National Electric Code (NEC), ANSI/NFPA 70
- UL and cUL Listed
- EU RoHS Compliant
- Country of Origin: China
Features
- Insulgrip® style housing for superior gripping
- Non-conductive retaining screw locks contacts in place
- Large raised alignment arrow aids in device mating
- Thermoplastic elastomer base compound for durability
- Brass contact material for reliable conductivity
- Nylon retaining screw material for secure fastening
