Product Substitutes
Description
Features
Insulgrip® Style Housing for Superior Gripping
Non-Conductive Retaining Screw locks contacts in place
Large Raised Alignment Arrow aids in the mating of devices
Specifications
Country of Origin: China
Current / Amperage Rating: 300 A
Width: 3.060 in
Each - Width: 3.060 in
Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Performance: Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #6 to 2/0 AWG
Amperage Rating: 300 A
Color: White
Standard: National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Type: Plugs
Voltage Rating Description: 600V AC/DC
Style: Male
Description - Invoice: SINGLEPOLE, 300A MALE PLUG, WHITE
Freight Class Code: 06168002
Harmonization Code: 8536698000
Image Actual Or Representative: A
MSDS Flag: No
Replaced Catalog Number: HBL200PTW
Series: Series 16
Base Unit of Measure: EA
BOX SIZE: 9.300x14.700x12.500 (in)
Carton - Gross Weight per Pack: 8.500 lb.
Carton - Number of Sub Packs: 10
Carton - Pack Description: Carton
Carton - SCC-14 Next Lower Level Sub Pack: 783585112145
Out of stock,
Call 1-866-853-4768 for availability and price.
Most out of stock items can be ordered and are usually available to ship in 1-3 business days. Popup
ULE Group is a national leader in electrical, power, and lighting distribution. For over 25 years our family-owned and New York operated company has been a trustworthy partner of choice for top contractors in the New York Metropolitan area and we have successfully grown our portfolio to include landmark construction projects throughout the United States. Guided by values like integrity and teamwork, ULE Group believes that its best customers are looking for more than just a supplier. They are looking for a problem-solving partner that can help them deliver innovative electrical solutions. ULE Group's superior service and expertise is available nationwide for projects big and small, we’re committed to being the partner that will get the job done.

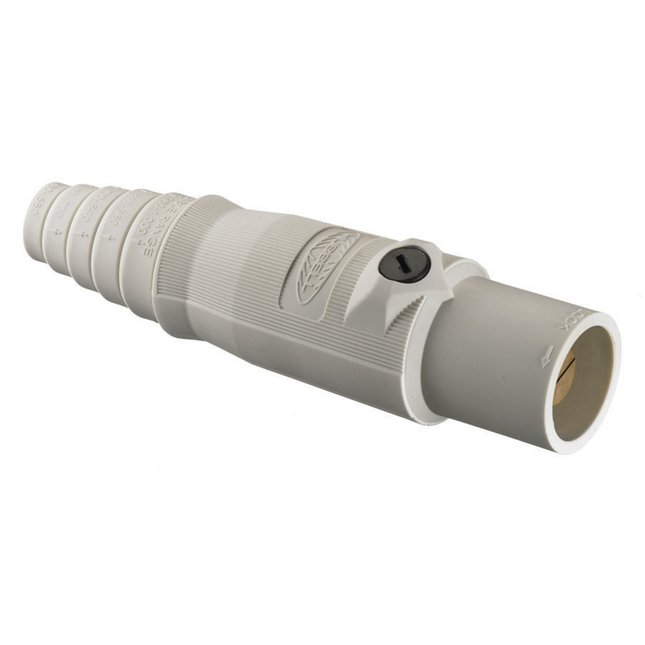

Bryant SKU #143101 Part #HBL300MWHeavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, White
