Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, White
SKU: #143349
Part: #HBL400FW
UPC: 783585112244
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, White
SKU: #143349
Part: #HBL400FW
UPC: 783585112244
Description

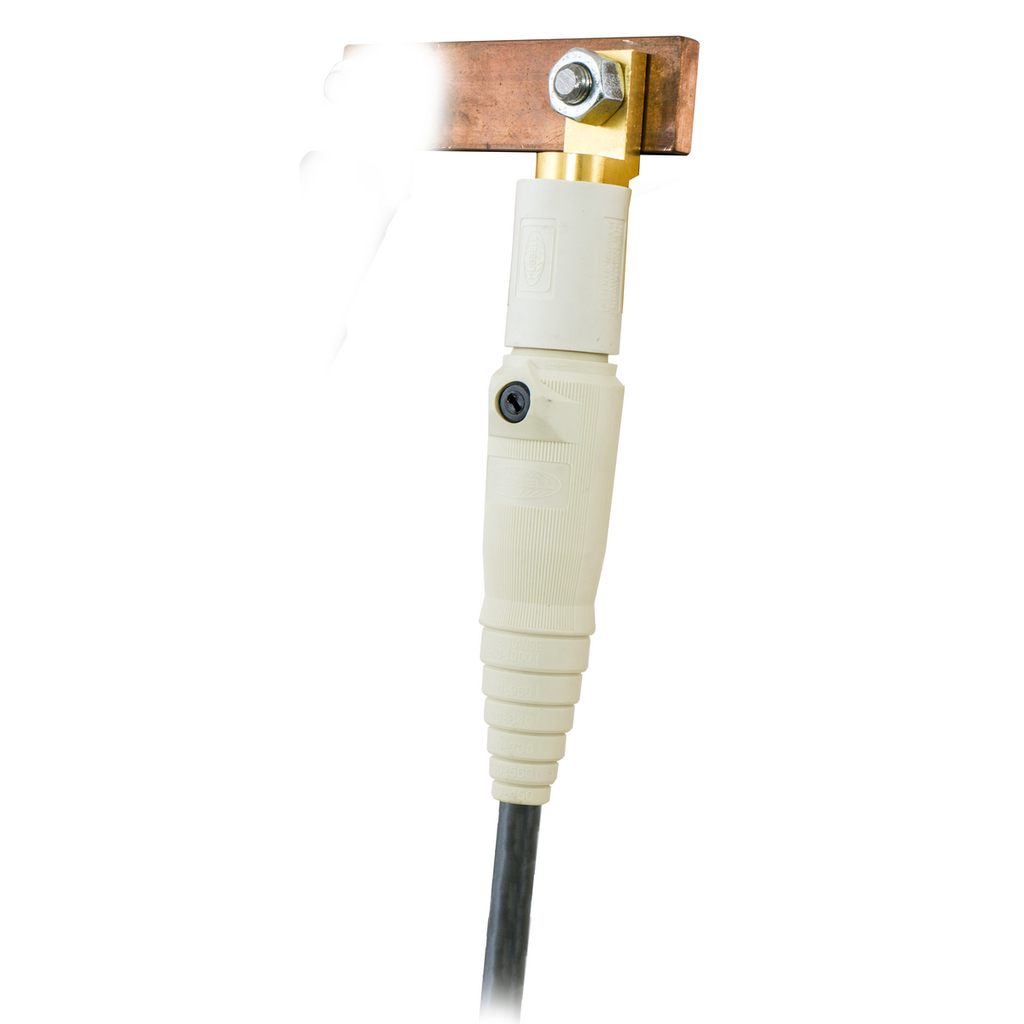

Heavy Duty Products Single Pole Female Plug 400A 600V AC/DC
This industrial-grade heavy duty single pole female plug is designed for high ampacity connections in electrical distribution and lighting solutions. Suitable for use in indoor dry environments unless otherwise protected, it supports a maximum amperage of 400 amperes and voltage ratings up to 600V AC/DC. The plug is cord mounted and compatible with listed SC/PPC type cords, making it a reliable component for wire and cable assemblies in demanding electrical applications.
Specifications
- Amperage Rating: 400 A
- Voltage Rating: 600V AC/DC
- Number of Poles: 1-Pole
- Number of Wires: 1-Wire
- Connection: Pressure Terminal Screws
- Material: Composite
- Color: White
- Mounting: Cord Mounted
- Cord Type: Listed SC/PPC Type
- Width: 2.55 in
- Product Weight: 0.85 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- NEMA Rating: Non-NEMA
- Manufacturer Part #: HBL400FW
- Country of Origin: China
Features
- Extra long non-conductive inner sleeve for enhanced safety
- Turn and Lock symbol to aid in proper mating of devices
- Easily identifiable cable with cut-off points for secure fit
- Industrial grade construction suitable for heavy duty applications
- Double set screws for secure single conductor connection
