Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Black
SKU: #143331
Part: #HBL400FBK
UPC: 783585113722
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Black
SKU: #143331
Part: #HBL400FBK
UPC: 783585113722
Next day delivery
Description

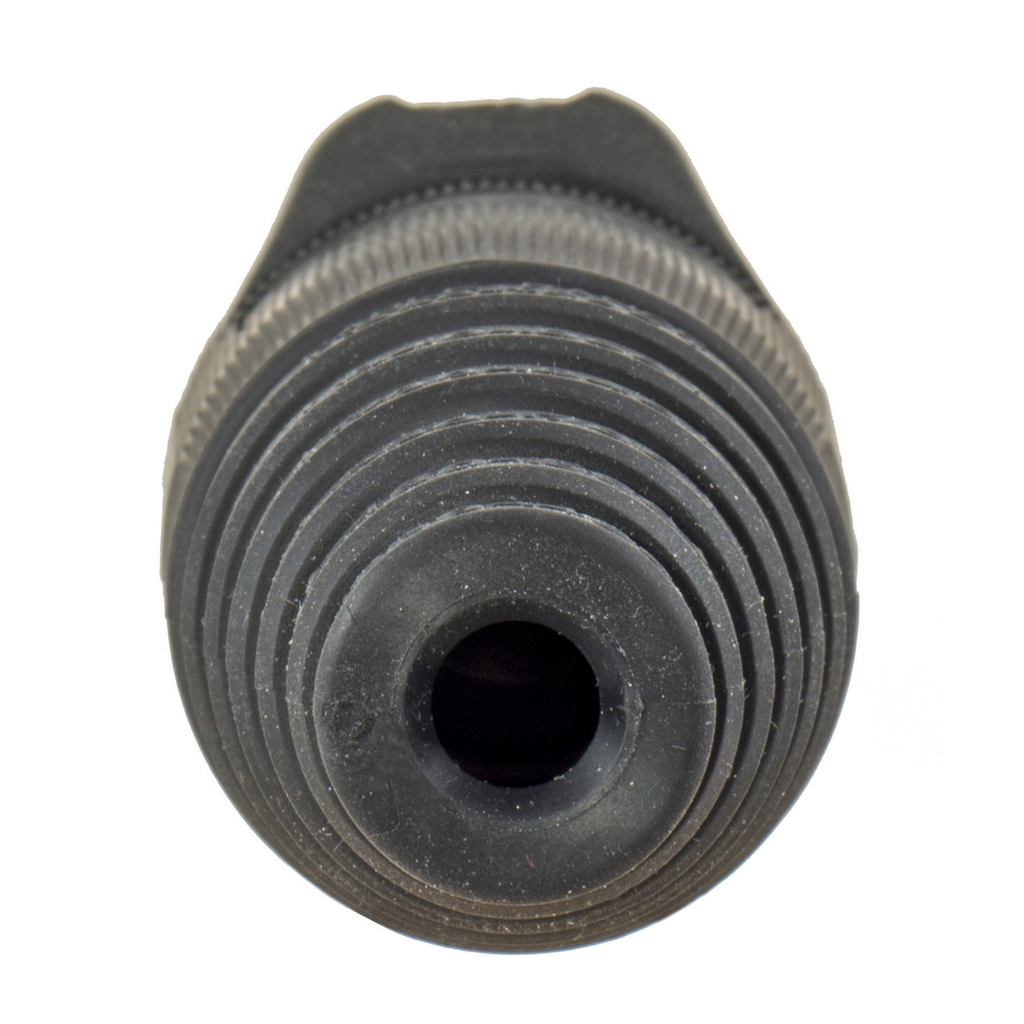

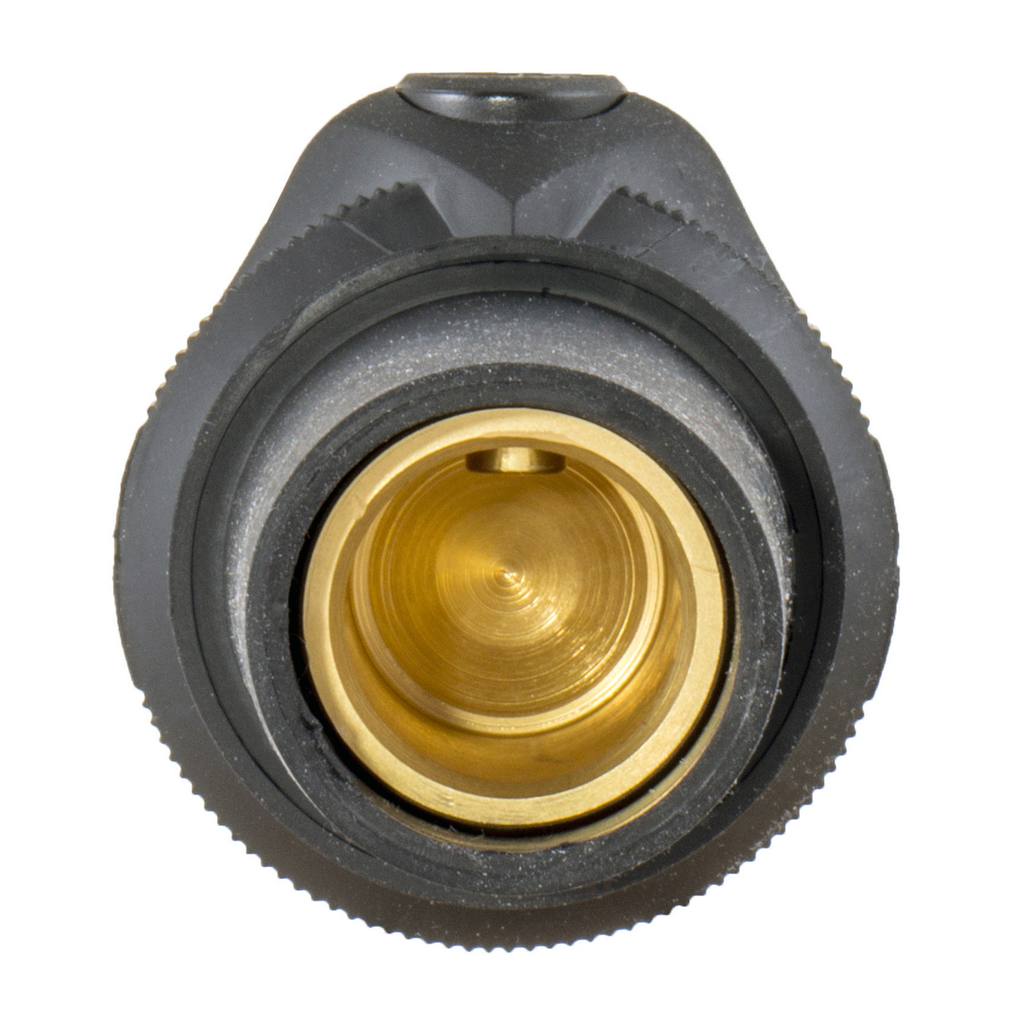

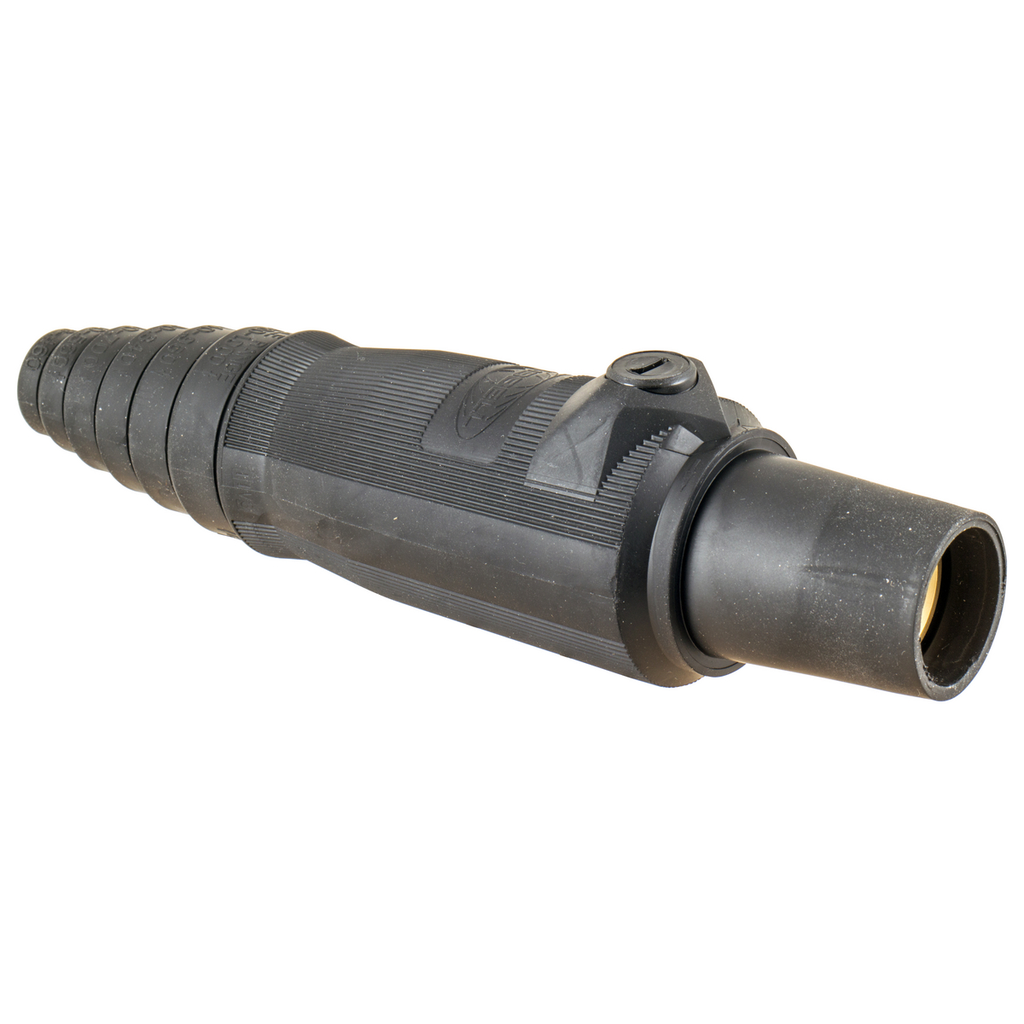

Heavy Duty Products Single Pole Female Plug 400A 600V AC/DC
This industrial-grade single pole female plug is designed for high ampacity connections, suitable for electrical distributors and switchgear suppliers requiring reliable heavy-duty wire and cable solutions. It supports a maximum amperage of 400A and voltage rating of up to 600V AC/DC, making it appropriate for demanding indoor dry environments unless additional protection is applied.
Specifications
- Application: High Ampacity Connections
- Amperage Rating: 400 A
- Voltage Rating: 600V AC/DC
- Number of Poles: 1-Pole
- Number of Wires: 1-Wire
- Connection: Pressure Terminal Screws
- Mounting: Cord Mounted
- Cord Type: Listed SC/PPC Type
- Material: Composite
- Color: Black
- Width: 3.760 in
- Product Weight: 0.75 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- NEMA Rating: Non-NEMA
- Manufacturer: Bryant
- Manufacturer Part #: HBL400FBK
- Industry Standards: NEC (ANSI/NFPA 70), UL and cUL Listed
- UL Enclosure Types: 3R, 4X, 12
- EU RoHS Compliant: Yes
Features
- Extra long non-conductive inner sleeve for enhanced safety
- Turn and Lock symbol aids in proper mating of devices
- Easily identifiable cable with cut-off points for secure fit
- Terminal accommodation supports 2/0 to 4/0 AWG wire sizes
- Brass contact material for reliable conductivity
- Retaining screws made of nylon for durability
- Industrial grade design suitable for heavy-duty electrical applications
