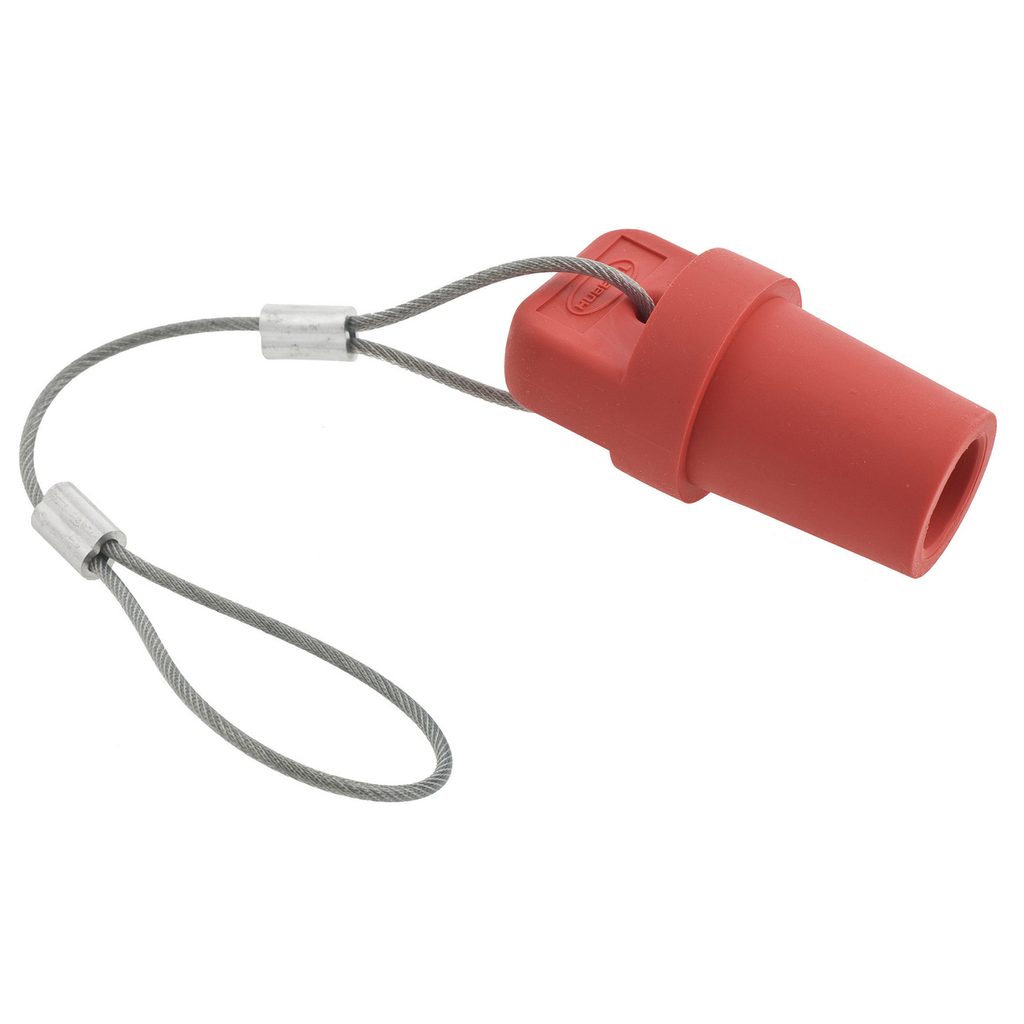

Heavy Duty Products, Single Pole Devices, Industrial Grade, Accessories, Male Device Cap, For 300/400A 600V AC/DC, Single Conductor, Red
SKU: #146457
Part: #HBLMCAPR
UPC: 783585848617
Heavy Duty Products, Single Pole Devices, Industrial Grade, Accessories, Male Device Cap, For 300/400A 600V AC/DC, Single Conductor, Red
SKU: #146457
Part: #HBLMCAPR
UPC: 783585848617
Description
Heavy Duty Products Single Pole Devices Industrial Grade Accessories Male Device Cap for 300/400A 600V AC/DC
This heavy duty male device cap is designed for high ampacity connections in industrial electrical applications. Suitable for single conductor use, it supports 300/400A current ratings at 600V AC/DC. Ideal for electrical distributors and switchgear suppliers requiring durable, industrial-grade accessories for wire and cable protection.
Specifications
- Application: High Ampacity Connections
- Current / Amperage Rating: 400 A
- Voltage Rating: 600V AC/DC
- Number of Poles: 1-Pole
- Number of Wires: 1-Wire
- Material: Composite
- Color: Red
- Mounting: Cord Mounted
- Cord Type: Listed SC/PPC Type
- Connection: Pressure Terminal Screws
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry unless protected by additional means
- Width: 3.210 in
- Product Weight: 0.2500 lbs
- Industry Standards: National Electric Code (NEC), ANSI/NFPA 70
- Certifications: UL and cUL Listed, UL Enclosure Types 3R, 4X, 12
- Country of Origin: China
- Manufacturer: Bryant
- Manufacturer Part Number: HBLMCAPR
Features
- Industrial Grade
- Male Device Cap
- Designed for 300/400A 600V AC/DC single conductor applications
- Composite construction for durability
- Cord mounted for secure installation
