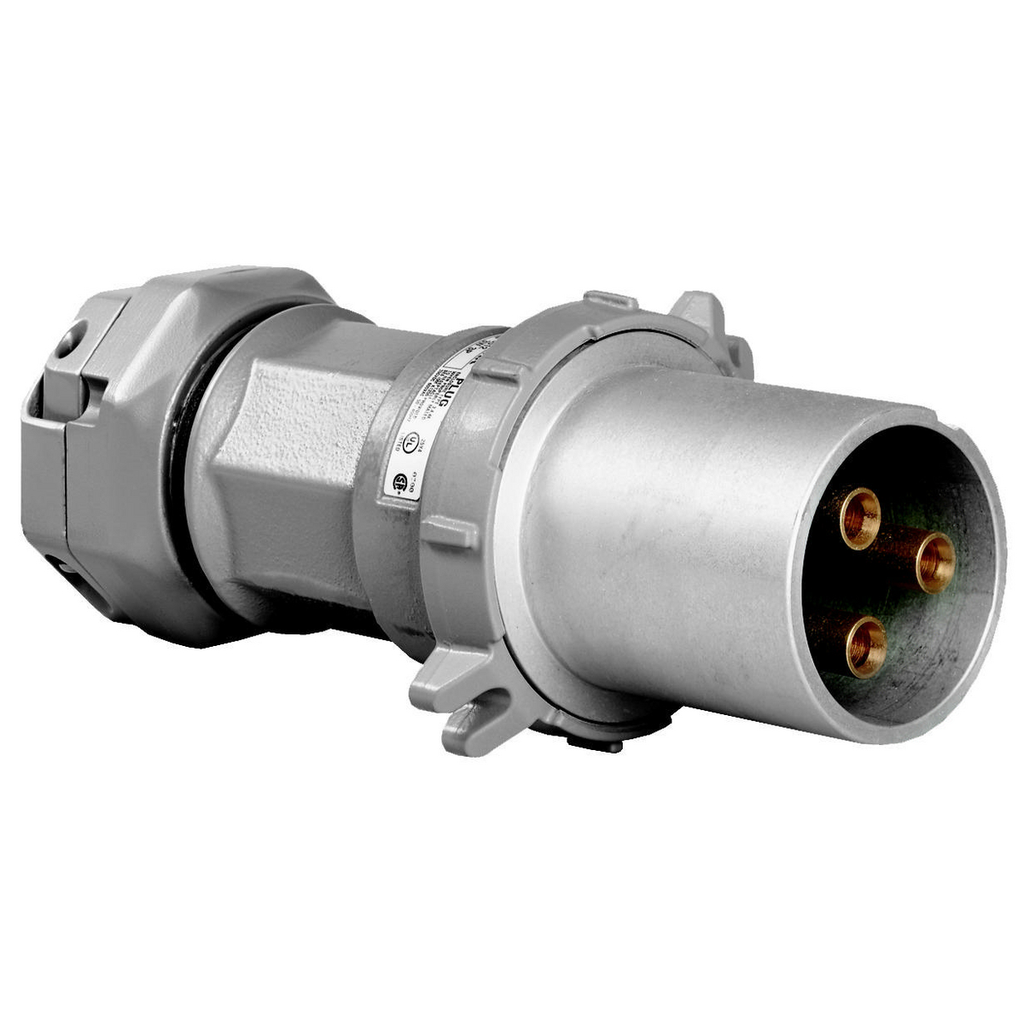

Heavy Duty Products Insulgrip Pin and Sleeve Devices Marine Grade Male Plug 200A 600V AC

This Heavy Duty Insulgrip Pin and Sleeve Male Plug is designed for demanding electrical applications requiring reliable, watertight connections. Suitable for use by electrical distributors and switchgear suppliers, this marine-grade device supports 200 amperes at 600 volts AC with a 4-pole, 5-wire grounding configuration. It is cord mounted and compatible with all portable cord types, making it ideal for heavy-duty wire and cable installations in harsh environments.

Specifications

• Amperage: 200 amperes
• Voltage Rating: 600V AC
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire
• Connection: Pressure Terminal Screws
• Material: Composite
• Mounting: Cord Mounted
• Width: 8.5 in
• Product Weight: 11.9 lbs
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Made in USA: Yes
• Application: Metallic with Nylon Shroud
• Cord Type: All Portable
• Manufacturer Part #: M5200PS1
• Country of Origin: United States
• Manufacturer: Hubbell Wiring Device-Kellems

Features

• Marine grade construction for durability in harsh environments
• Insulgrip design provides enhanced safety and grip
• Pressure terminal screws ensure secure wire connections
• Watertight rating suitable for outdoor and marine applications
• Composite material offers corrosion resistance and longevity
• Compatible with Type G and W portable cords with copper conductors
• Meets UL classifications for mating with Crouse-Hinds and Appleton devices
• Designed for use in heavy-duty electrical distribution and lighting solutions
