Features

• Locking ring provides UL Type 4X watertight, dust-tight seal
• Catalog number and rating visible while in use
• All-Brass sleeve contacts provide reliable electrical contact
• Watertight

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 100 A
• Width: 5.700 in
• Each - Width: 5.700 in
• Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
• Amperage Rating: 100 A
• Application: Metallic with Nylon Shroud
• Cord Type: All Portable
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Special Features: Watertight
• Standard: CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010

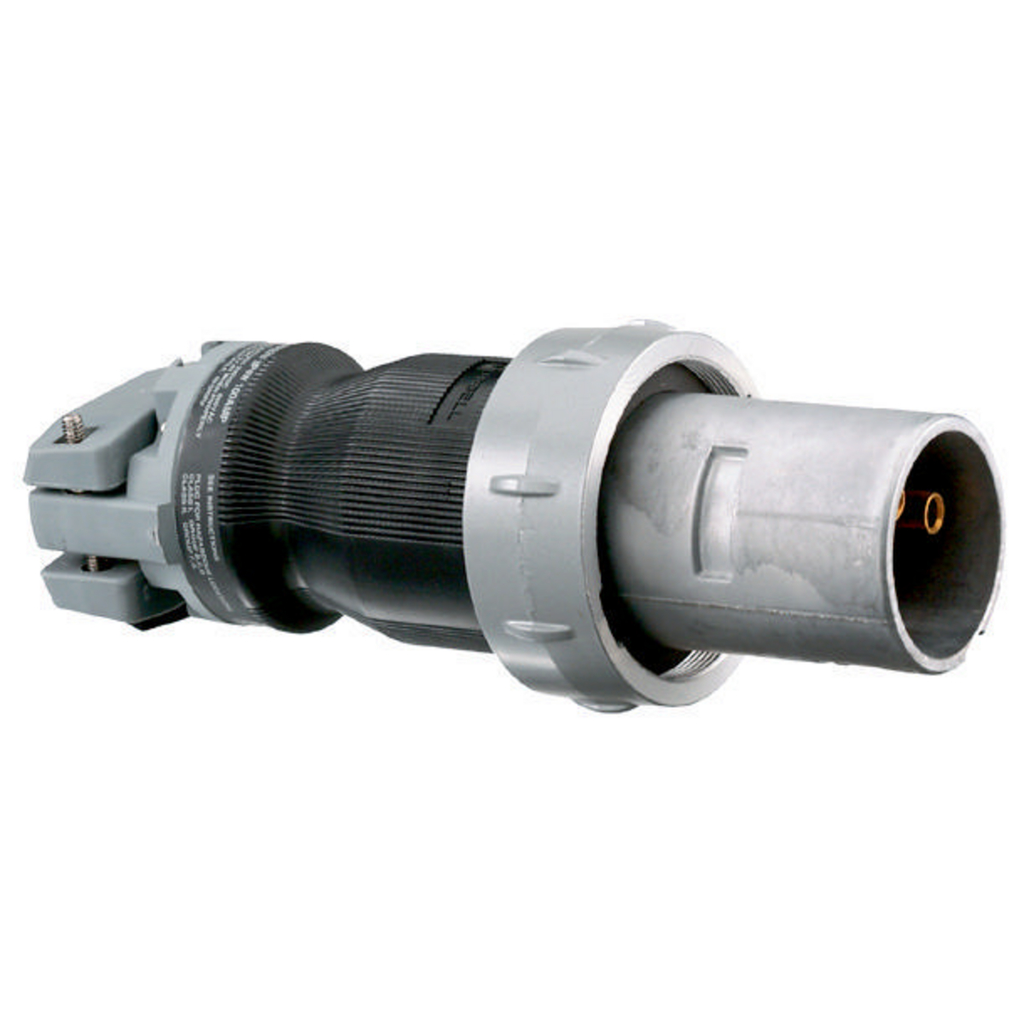

• Type: Watertight Plug
• Voltage Rating: 600 VAC/250 VDC
• Wire Size: #4 AWG to #2 AWG
• Voltage Rating Description: 600V AC/250V DC
• Connectivity: Pressure Terminal Screws
• Display Size: Standard Sized
• Nema Rating: Non-NEMA
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Style: Standard Service, Style 2
• Class Code: A12
• Description - Invoice: PS, INS, PLUG, 3P4W, 100A 600V, S2
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A12A200
• Material - Mounting Hardware: Cord Mounted
• Current Rating: 100 A
• Material: Composite
• Series: UL 1686 Class 1 Insulgrip®
• Base Unit of Measure: EA
• BOX SIZE: 12.500x16.900x10.400 (in)
• Carton - Gross Weight per Pack: 26.350 lb.
• Carton - Number of Sub Packs: 6
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585011080
• Carton - Total Units: 6 EA
• Case Weight: 26.650 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: No
