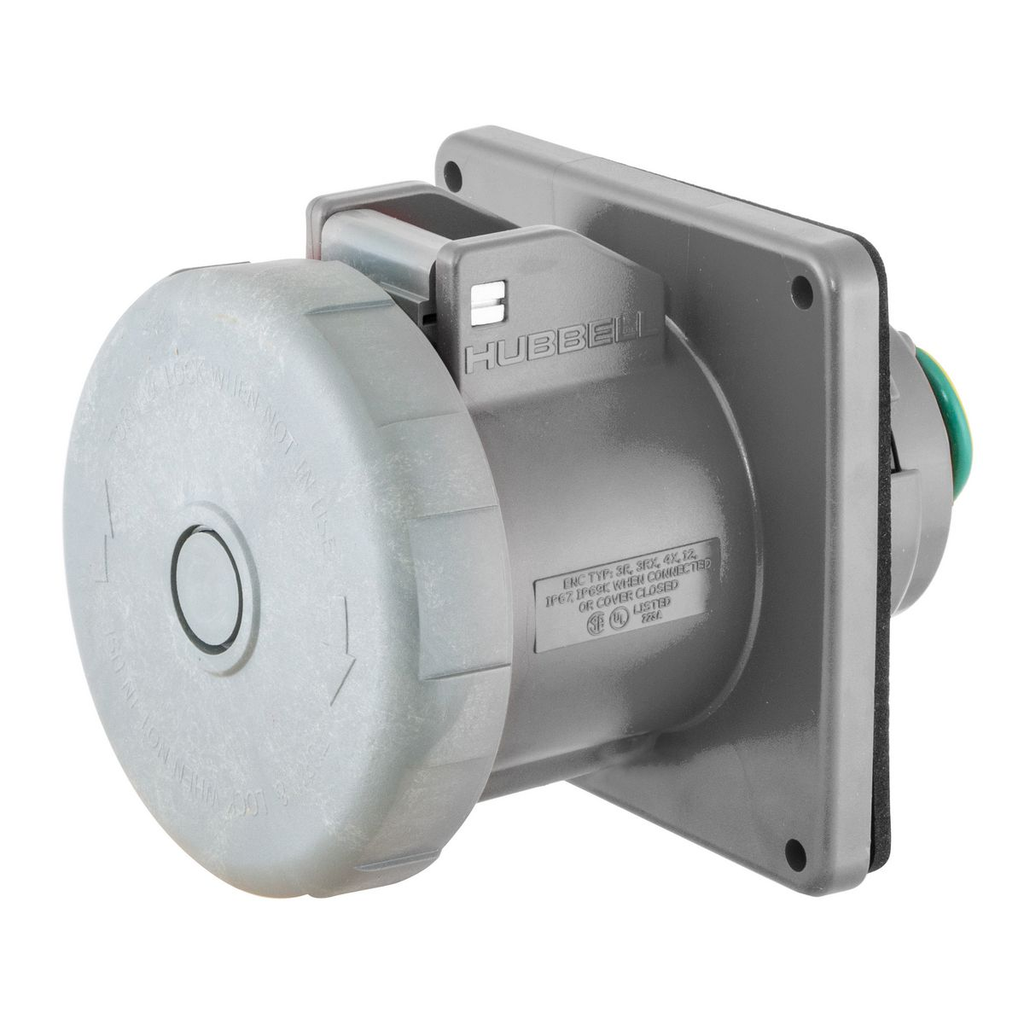

Heavy Duty Products IEC Pin and Sleeve Devices Marine Grade Receptacle

This heavy duty IEC pin and sleeve female receptacle is designed for demanding electrical distribution applications requiring corrosion resistance and watertight performance. It is suitable for use in industrial and marine environments where reliable power connections are critical. The device supports 100 amperes of current at 277/480V AC in a 3-phase Wye configuration, making it ideal for heavy-duty motor and equipment connections. Electrical distributors and switchgear suppliers will find this device useful for installations requiring robust wire and cable terminations with grounding.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: M5100R7
• Current/Amperage Rating: 100 amperes
• Voltage: 277/480V AC, 3-Phase Wye
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire Grounding
• Material: Thermoplastic
• Color: Gray
• Mounting: Screw Mount
• Connection Type: Pressure Screw Terminals
• Product Weight: 22.95 lbs
• Width: 6.4 in
• Application: Corrosion Resistant
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Country of Origin: Puerto Rico

Features

• Heavy duty construction for industrial and marine grade applications
• IEC pin and sleeve design ensures secure and reliable connections
• Corrosion resistant thermoplastic housing suitable for harsh environments
• Watertight design protects against moisture ingress in wet locations
• Pressure screw terminals provide secure wire connections
• Screw mount installation for robust and stable mounting
