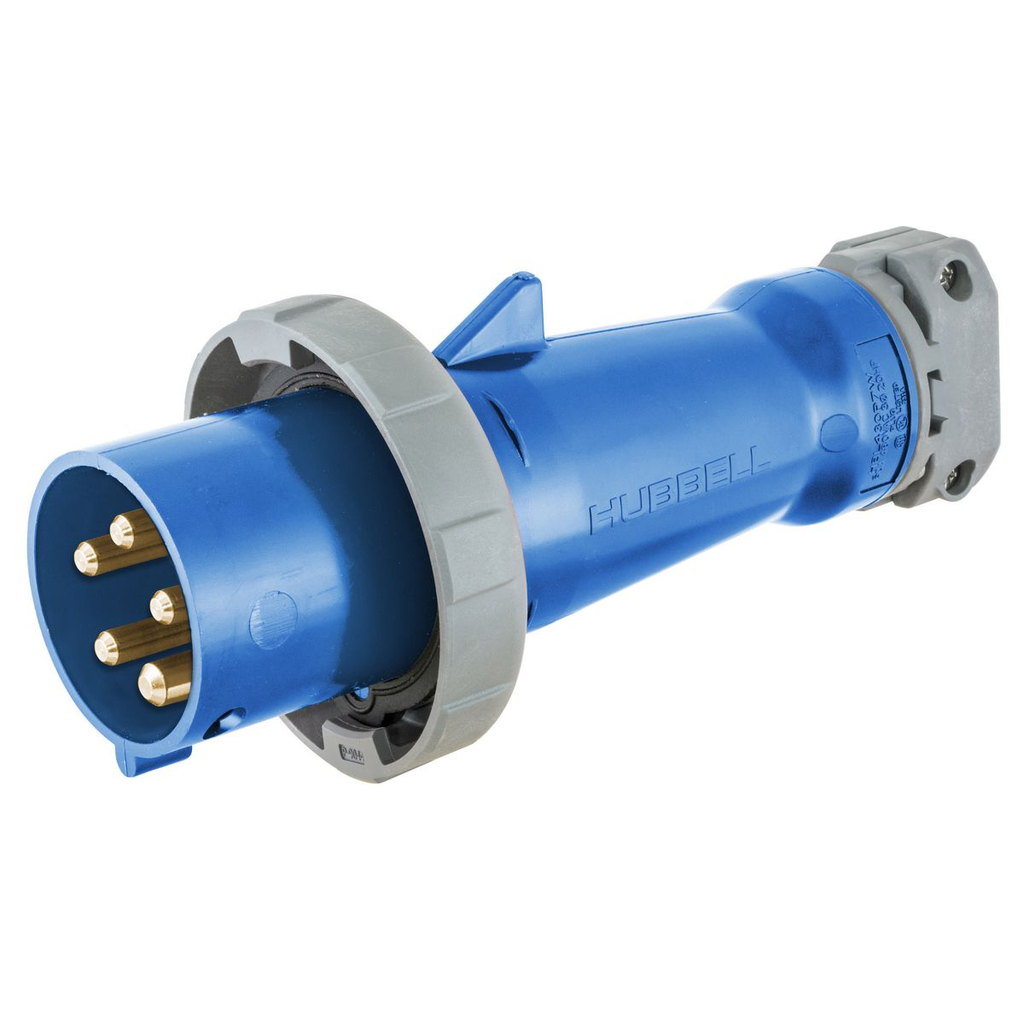

Heavy Duty Products IEC Pin and Sleeve Devices Industrial Grade Male Plug 60A 3-Phase Wye 120/208V AC

This heavy-duty IEC pin and sleeve male plug is designed for high ampacity connections in industrial electrical applications. It supports 60 amperes current with a 4-pole, 5-wire grounding configuration for 3-phase Wye 120/208V AC systems. Suitable for use by electrical distributors and switchgear suppliers, this device ensures secure and reliable power connections with pressure terminal screws and a watertight composite housing, ideal for demanding environments requiring durable lighting solutions and wire and cable connectivity.

Specifications

• Amperage: 60 amperes
• Current: 60 amperes
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire Grounding
• Voltage: 120/208V AC (3-Phase Wye)
• Material: Composite
• Mounting: Cord Mounted
• Cord Type: All Portable
• Connection: Pressure Terminal Screws
• Width: 5.7 in
• Product Weight: 2.35 lbs
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: HBL560P9W

Features

• Industrial grade IEC pin and sleeve design for secure connections
• Watertight housing suitable for harsh environments
• Terminal screws provide reliable pressure connection
• Composite material construction for durability and longevity
• Cord mounted for flexible installation on portable equipment
• Compatible with 60A 3-phase Wye 120/208V AC systems
• Color coded blue for easy identification
