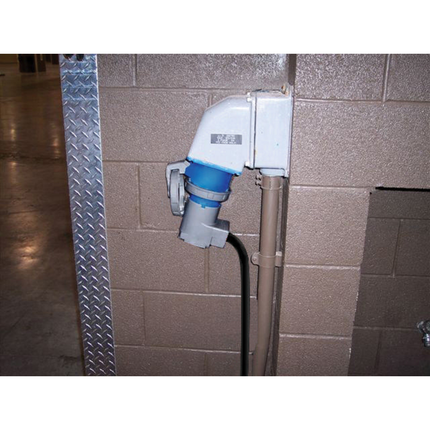

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
SKU: #144703
Part: #HBL560R9W
UPC: 783585405735
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
SKU: #144703
Part: #HBL560R9W
UPC: 783585405735
Next day delivery
Description
Heavy Duty Products IEC Pin and Sleeve Devices Female Receptacle 60A 3-Phase Wye 120/208V AC Watertight
This industrial-grade heavy duty IEC pin and sleeve female receptacle is designed for high ampacity watertight electrical connections. It supports 60 amperes current at 3-phase Wye 120/208V AC with a 4-pole 5-wire grounding configuration, making it suitable for demanding applications requiring robust and reliable power distribution. Ideal for electrical distributors and switchgear suppliers, this device ensures secure and safe connections in harsh environments.
Specifications
- Current Rating: 60 A
- Amperage Rating: 60 A
- Voltage Rating: 3-Phase 120/208 VAC
- Phase: Three Phase
- Number of Poles: 4-Pole
- Number of Wires: 5-Wire Grounding
- Connection: Pressure Terminal Screws
- Material: Thermoplastic
- Mounting: Screw Mount
- Environmental Conditions: Watertight (IP67)
- Industry Standard(s): Listed to UL1682
- Wire Size Range: #8 AWG to #2 AWG
- Dimensions: Width 5.6 in
- Product Weight: 14.1070 lbs
- Made in USA: Yes
- UPC: 783585405735
Features
- Self-closing gasketed cover for watertight protection
- Color-coded blue housing for easy voltage identification
- Super tough insulated non-metallic thermoplastic housing (Zytel® 101 Nylon) for chemical and impact resistance
- Reinforced thermoplastic polyester cover with nickel-plated brass screws
- Permanent molded ratings and terminal identification conforming to North American and IEC conventions
- Pressure terminal screws designed for secure and reliable wiring connections
- Designed for heavy duty industrial environments requiring durable watertight connections
