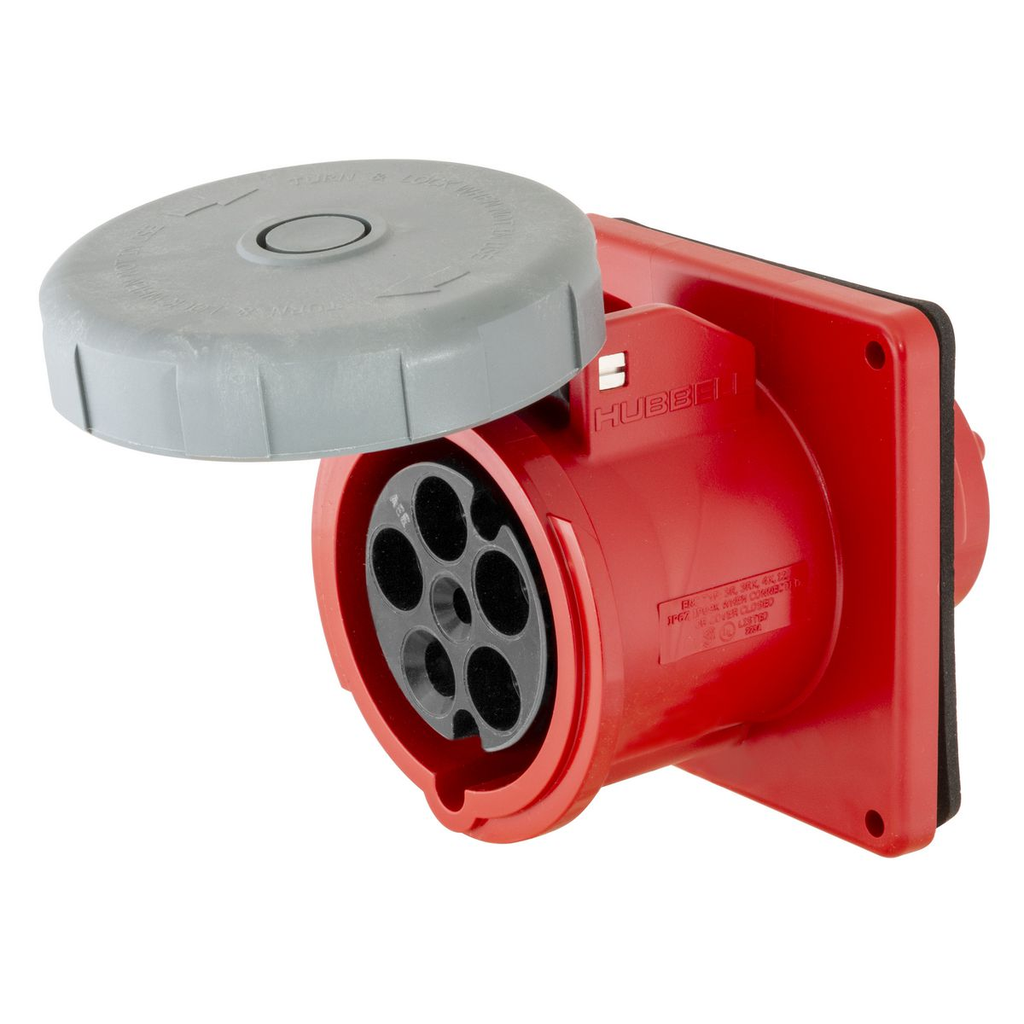

Heavy Duty Products IEC Pin and Sleeve Female Receptacle 30A 3-Phase Wye 277/480V AC Watertight

This industrial-grade female receptacle from Hubbell Wiring Device-Kellems is designed for high ampacity watertight connections in demanding electrical distributor and lighting solutions environments. It features a 30 amp, 4-pole, 5-wire grounding configuration suitable for 3-phase Wye 277/480V AC applications. The device is ideal for heavy-duty wire and cable installations requiring reliable, watertight electrical connections with terminal screws for secure wiring. Its thermoplastic housing and red color coding ensure durability and easy identification.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL530R7W
• Current/Amperage: 30 amperes
• Voltage: 277/480V AC, 3-Phase Wye
• Poles: 4-Pole
• Wires: 5-Wire Grounding
• Material: Thermoplastic
• Color: Red
• Mounting: Screw Mount
• Connection: Pressure Screw Terminals
• Product Weight: 1.55 lbs
• Width: 5.6 in
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Country of Origin: United States
• Made in USA: Yes

Features

• Heavy duty industrial grade IEC pin and sleeve device
• Watertight design suitable for harsh and wet environments
• Pressure screw terminal connections for secure wiring
• Thermoplastic housing provides durability and chemical resistance
• Color-coded red for easy voltage identification
• Screw mount for reliable installation
• Complies with IEC 60309 standards for pin and sleeve devices
• Continuous ground engagement for safety
• Self-closing gasketed cover for dust and water protection
• Made in the USA ensuring quality manufacturing
