Heavy Duty Products IEC Pin and Sleeve Devices Watertight Receptacle

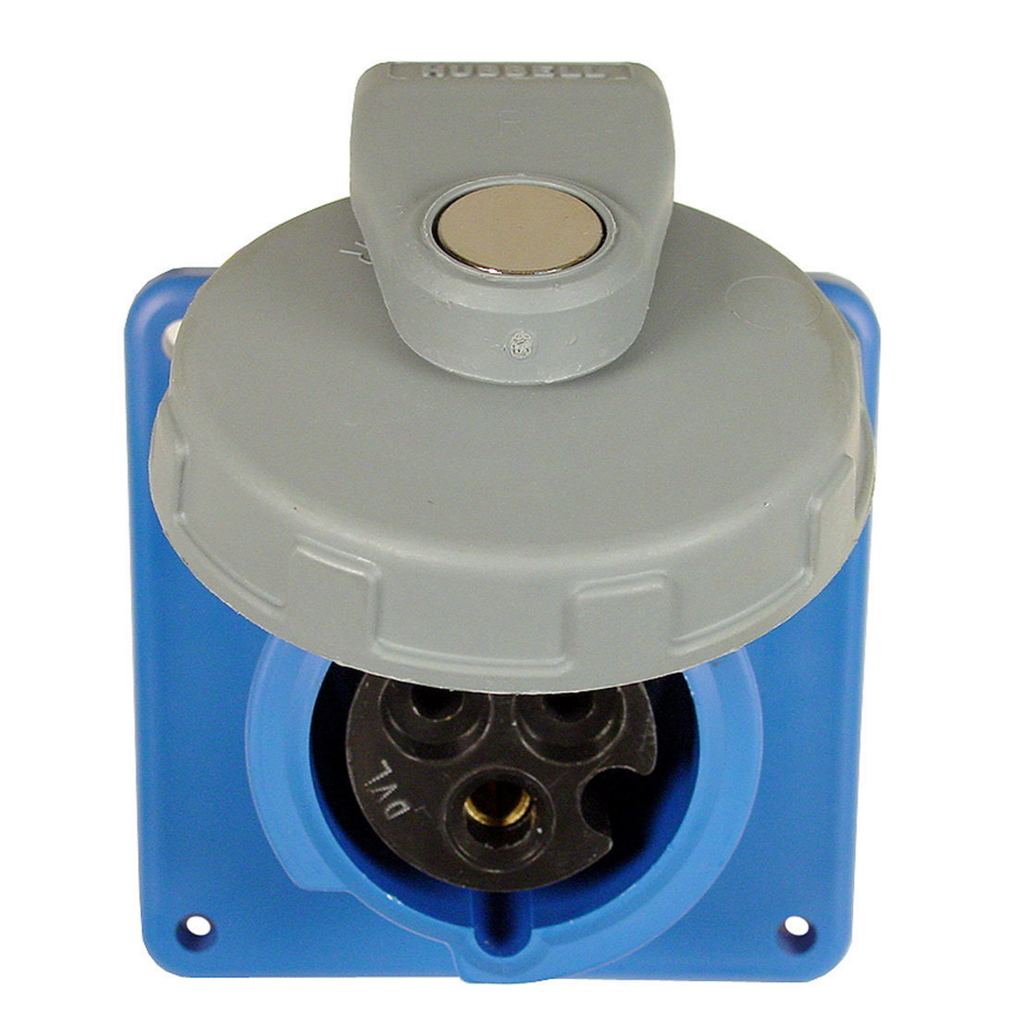

This Heavy Duty IEC Pin and Sleeve Female Receptacle by Hubbell Wiring Device-Kellems is designed for high ampacity watertight connections in industrial applications. It operates at 20 amperes and 250V AC with a 2-pole, 3-wire grounding configuration. The device is made of thermoplastic material, ensuring durability and chemical resistance, and features a screw mount and pressure screw terminal connections for secure wiring. Its blue color coding and watertight rating make it suitable for demanding electrical distributor and lighting solutions environments requiring reliable wire and cable connections.

Specifications

• Manufacturer Part #: HBL320R6W
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 250V AC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Thermoplastic
• Color: Blue
• Mounting: Screw Mount
• Connection: Pressure Screw Terminals
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Width: 4.9 in
• Product Weight: 0.9 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Heavy duty industrial grade IEC pin and sleeve device
• Watertight design suitable for harsh environments
• Color-coded for easy voltage identification
• Durable thermoplastic housing resistant to chemicals and impact
• Pressure screw terminals for reliable wiring connections
• Screw mount for secure installation
• Compliant with IEC 60309 standards
• Manufactured in the USA
