Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
SKU: #144056
Part: #HBL5100C9W
UPC: 783585405063
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
SKU: #144056
Part: #HBL5100C9W
UPC: 783585405063
Next day delivery
Description
Heavy Duty Products IEC Pin and Sleeve Devices - Industrial Grade Connector

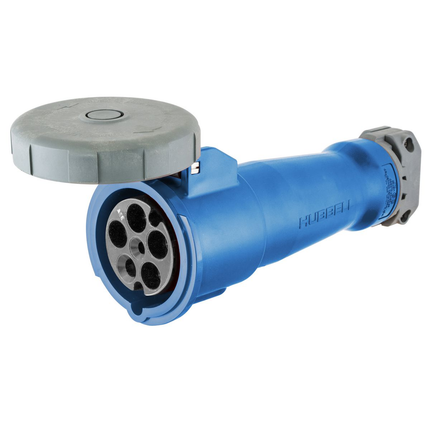

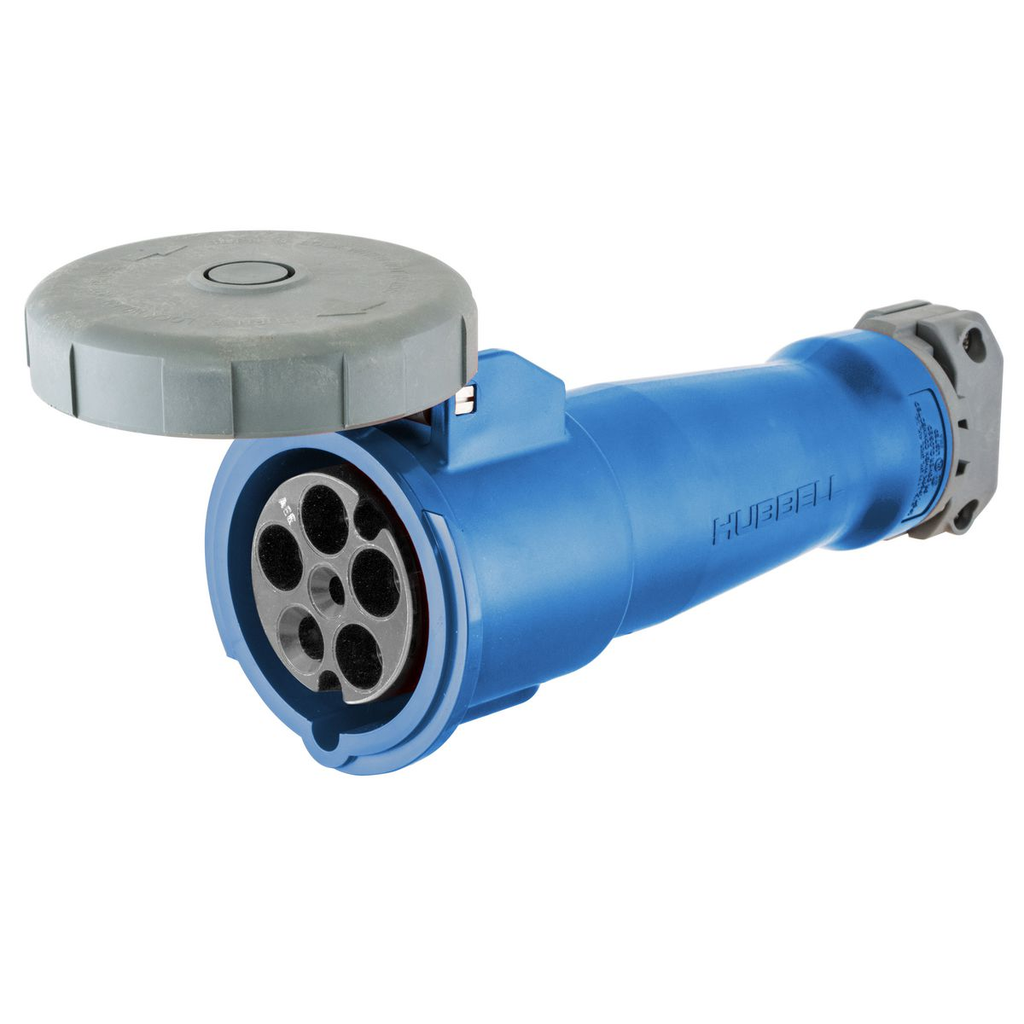

This Heavy Duty IEC Pin and Sleeve Device is an industrial-grade female connector body designed for high ampacity connections in electrical distribution and lighting solutions. It supports 100 amperes at 3-phase Wye 120/208V AC with a 4-pole 5-wire grounding configuration. The device is cord mounted and features a watertight, insulated composite body with pressure screw terminal connections, suitable for demanding industrial applications requiring reliable wire and cable terminations.
Specifications
- Current: 100 amperes
- Amperage Rating: 100 A
- Poles: 4-Pole
- Wires: 5-Wire Grounding
- Voltage: 120/208V AC
- Connection Type: Pressure Screw Terminal
- Material: Composite
- Color: Blue
- Width: 6.200 in
- Mounting: Cord Mounted
- Insulation: Insulated Body
- Environmental Conditions: Watertight
- Conductor Range: #3 AWG to #1/0 AWG
- Manufacturer: Hubbell Wiring Device-Kellems
- Country of Origin: United States
- Manufacturer Part Number: HBL5100C9W
- Product Weight: 19.5510 lbs
- NEMA Rating: Non-NEMA
- Made in USA: Yes
Features
- Heavy-duty industrial grade construction for high ampacity applications
- IEC Pin and Sleeve design for secure and reliable electrical connections
- Watertight and insulated body ensures protection in harsh environments
- Pressure screw terminal connection facilitates secure wiring and maintenance
- Composite material provides durability and electrical insulation
- Blue color coding for easy identification
- Cord mounted for flexible installation
- Designed for 4-pole, 5-wire grounding systems in 3-phase Wye configurations
- Manufactured in the USA ensuring quality and compliance
