Heavy Duty Direct Burial Ground Clamp, 1-1/4″ to 2″ Pipe – Grounding Solutions

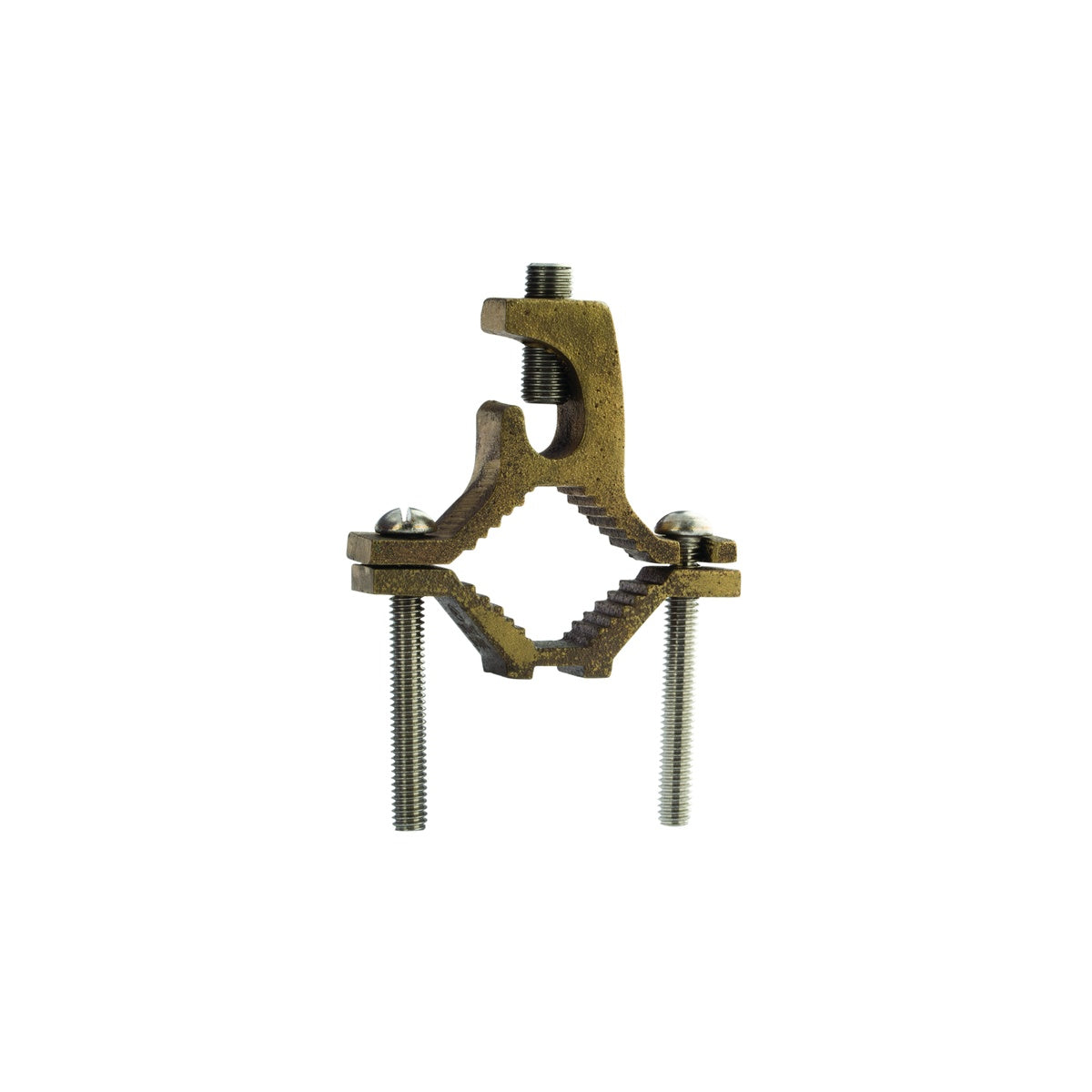

The NSI Industries Heavy Duty Direct Burial Ground Clamp (GLC-240DB) is designed for secure grounding applications involving pipes from 1-1/4″ to 2″ in diameter. This ground clamp is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding solutions for copper water pipes, tubing, rebar, and ground rods. It accommodates large ground wires ranging from 8 to 4/0 STR, making it ideal for heavy-duty grounding tasks in direct burial environments, including earth and concrete.

Specifications

• Application: Grounding Wire
• Pipe Size Range: 1-1/4‚Ä≥ to 2‚Ä≥ diameter
• Ground Wire Range: #8 to 4/0 STR
• Material: Silicon Bronze clamp body with pre-assembled 304 stainless steel screws
• Dimensions (L x W x H): 3.319 in x 0.693 in x 3.19 in
• Product Weight: 0.67 lbs
• Certifications: cULus Listed 467 for Grounding & Bonding, UL Listed for direct burial in earth and concrete
• Manufacturer Part Number: GLC-240DB
• Country of Origin: India

Features

• Heavy-duty design for large ground wires and versatile applications
• Lay-in lug design provides flexibility for securing large conductors
• Pre-assembled 304 stainless steel screws ensure corrosion resistance and durability
• UL Listed for direct burial use in earth and concrete environments
• Compatible with copper water pipes, tubing, rebar, and ground rods up to 2‚Ä≥ diameter
