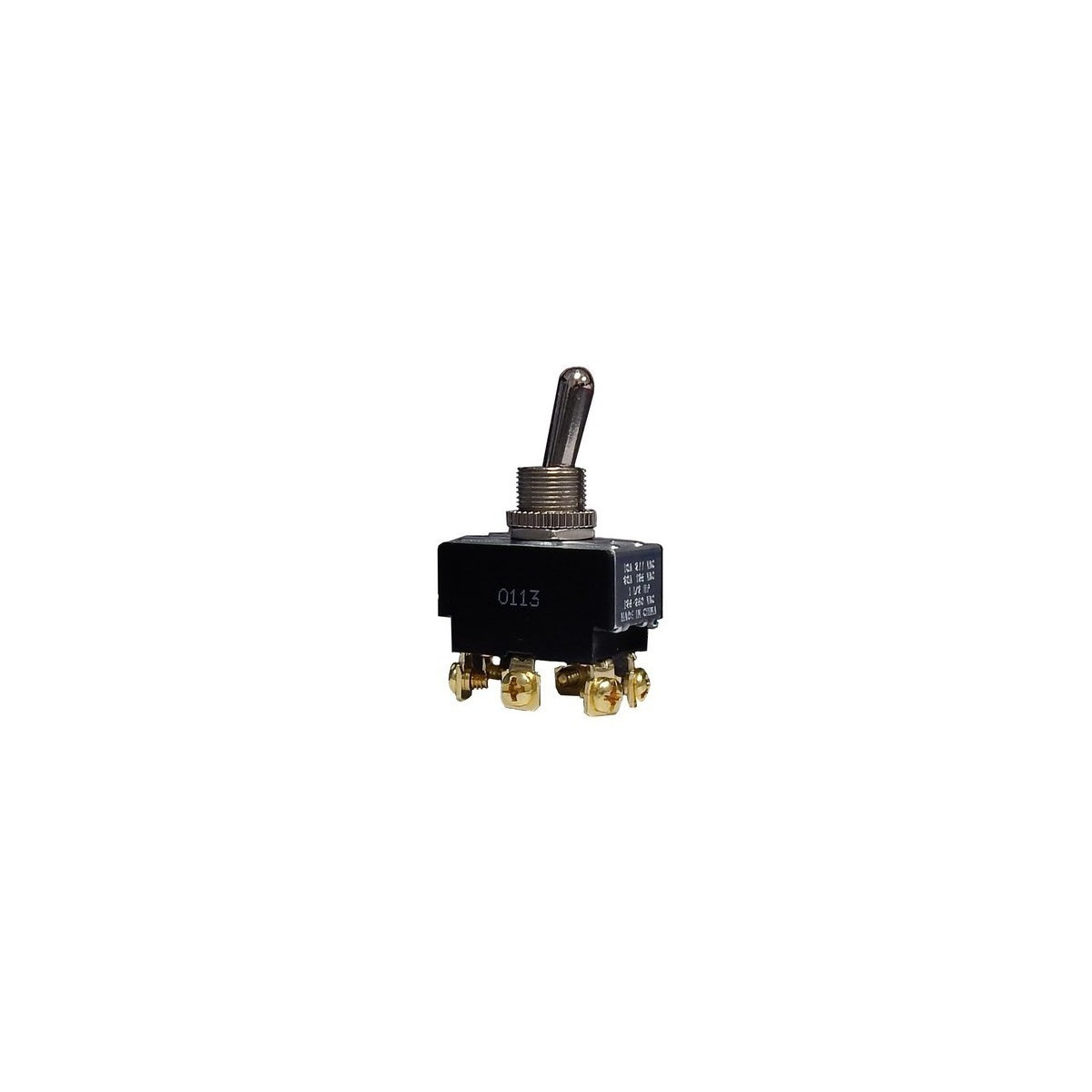

Heavy Duty 2 Pole Toggle Switch DPDT On-On Screw Terminals

This heavy duty toggle switch is designed for reliable electrical control applications, featuring a double pole double throw (DPDT) ON-ON configuration with screw terminals for secure wiring. Suitable for use by electrical distributors and switchgear suppliers, it supports various lighting solutions and wire and cable setups requiring robust switching capabilities.

Specifications

• Voltage Rating: 125/277 VAC
• Amperage Rating: 20 AMP at 125 VAC, 10 AMP at 277 VAC
• Motor Load: 1-1/2 HP at 125/250 VAC
• Dielectric Strength: 1500 volts AC, 1 minute
• Contact Resistance: 50 milliohms max
• Insulation Resistance: 500 V DC, 100 megaohms, 1 minute
• Material: Nickel plated zinc with solid brass or nickel plated bushings
• Dimensions: 1.3 in length x 0.76 in width x 0.8 in height
• Weight: 0.1220 lbs
• Terminals: 6 copper screw terminals
• Certifications: UL, CSA, RoHS compliant

Features

• Heavy duty construction for durability in electrical systems
• DPDT ON-ON switch function providing three positions for versatile control
• Secure screw terminal connections for reliable wiring
• Non-metallic housing for electrical safety
• Compact size suitable for integration in various switchgear and control panels
