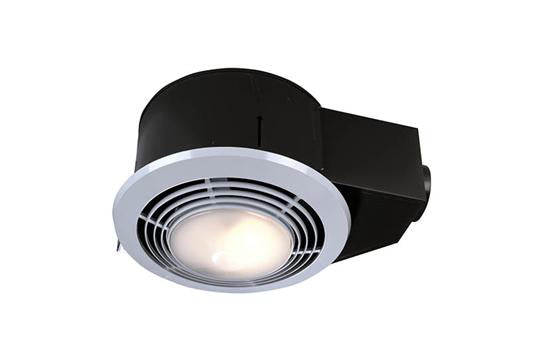

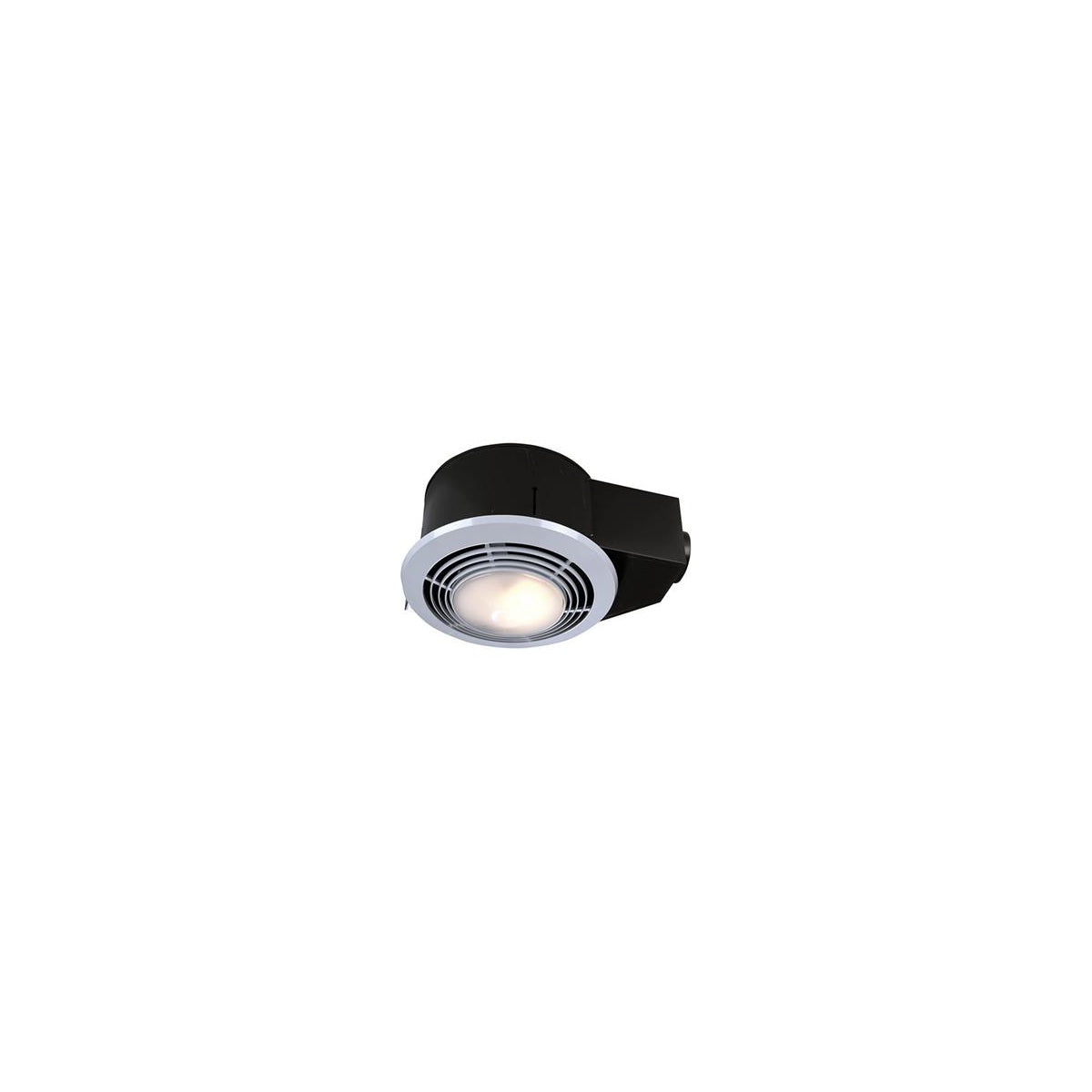

Heater/Fan/Light/Nightlight, 1500W Heater, 110 CFM Ventilation Fans

This NuTone Heater/Fan/Light/Nightlight combination unit provides efficient, instant heating and ventilation for bathroom applications. Designed to quickly warm the space without the need to heat the entire house, it integrates a 1500W heating element with a ventilation fan delivering 110 CFM airflow. This product is ideal for electrical distributors and lighting solutions providers seeking reliable wire and cable compatible bathroom ventilation and heating fixtures. The unit also features separate controls for heater, fan, light, and nightlight functions, suitable for switchgear suppliers and professional installations.

Specifications

• Manufacturer: NuTone
• Model Number: QT9093WH
• Air Delivery: 110 CFM
• Heating Element Power: 1500 Watts
• Electrical Rating: 120 Volts, 1717 Watts
• Sound Level: 4.0 Sones at 0.1 W.G. Static Pressure
• Dimensions: Housing - 13¬º" x 18‚Öõ" x 7¬Ω" deep; Grille - 15‚Öú" diameter x 3" extension from ceiling
• Material & Finish: Housing - Cold rolled steel with baked enamel finish; Grille - Die-cast zinc with White Enamel finish; Reflector - Steel with white enamel finish; Lens - Glass
• Duct Size: 4" round
• Weight: 23.5 lbs
• Bulbs: Uses one 100W bulb and one 7W bulb (night light), bulbs sold separately
• UPC: 784891322129

Features

• Quiet QuieTTest ventilation with polypropylene blower for odor, steam, and stale air exhaust
• Automatic reset thermal protection for safety
• Includes quiet non-metallic backdraft damper
• Expansion-type hanger bars for joists up to 24" on center with adjustable mounting brackets
• Detachable junction box with three wiring knockouts for ease of installation
• One-piece diecast grille with pebble-texture bezel in White Enamel finish
• Separate on/off wall switch controls for heater, fan, light, and nightlight functions
• Compatible with standard in-line thermostats to control the heat cycle
