Heater/Fan/Light, 1500W Heater, 100W Incandescent Light, 100CFM - Bathroom Ventilation Solutions

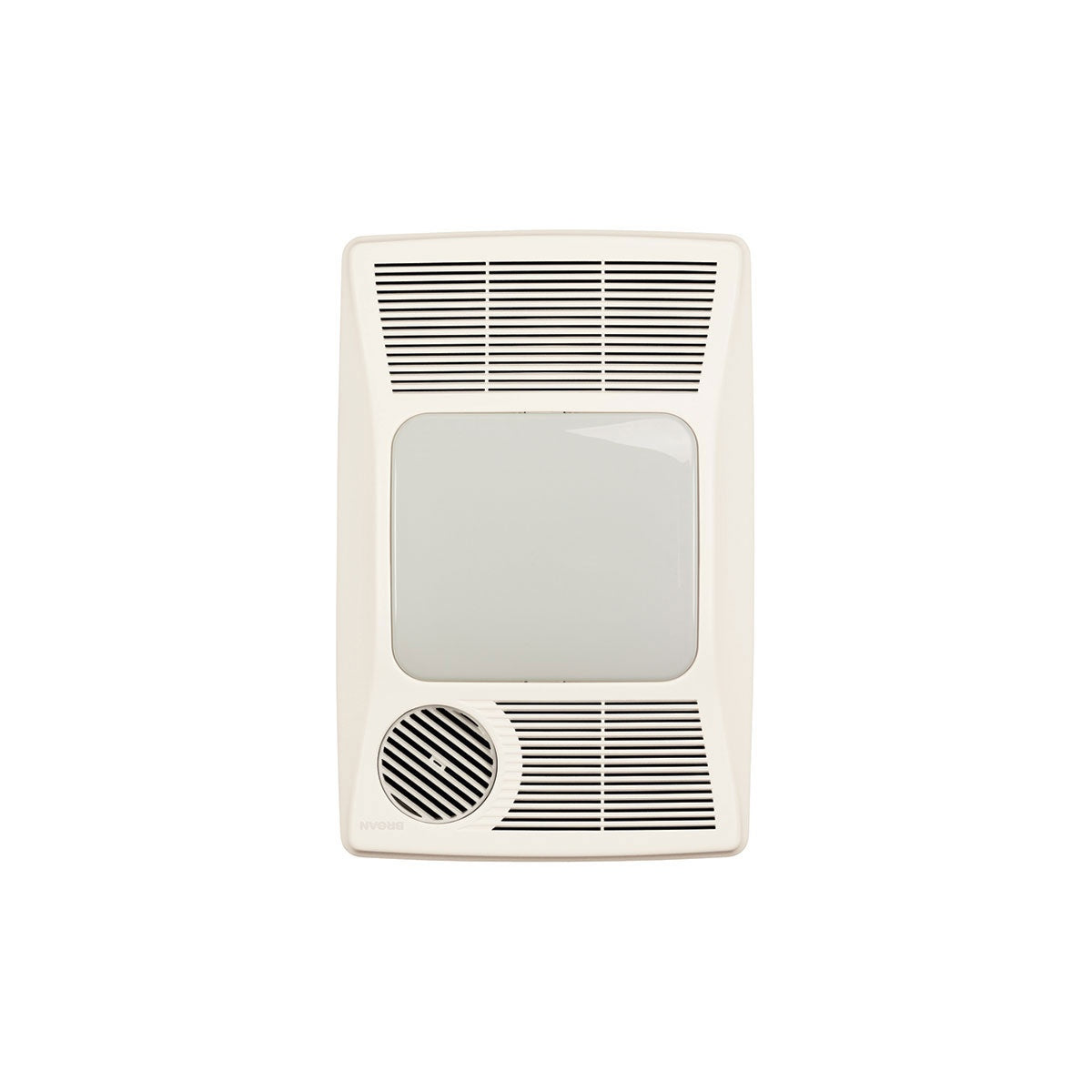

The Broan 100HL is a ventilation fan with integrated heater and light designed for ceiling installation in bathrooms. It provides targeted heating, lighting, and ventilation to enhance comfort without heating the entire home. Ideal for electrical distributors and lighting solutions providers focusing on residential wire and cable and switchgear supplier offerings, this unit features a 360° directionally-adjustable heat outlet ensuring efficient heat delivery where needed.

Specifications

• Heater Power: 1500 Watts
• Light Type: Incandescent
• Light Wattage: 100 Watts (bulb not included)
• Airflow Rate: 100 cubic feet per minute (CFM)
• Amperage: 14 amperes
• Duct Size: 4 inches
• Grille Width: 11-1/2 inches
• Grille Length: 17-1/2 inches
• Housing Width: 10-1/4 inches
• Housing Height: 5-7/8 inches
• Product Weight: 16.7 lbs
• Manufacturer: Broan
• Manufacturer Part #: 100HL

Features

• Integrated heater, fan, and light functions controlled separately via a 3-function control
• 360¬∞ directionally-adjustable heater grille for precise heat placement
• Designed for flat ceiling installation only, suitable for ceilings 9 feet high or less
• Includes a 4-inch round duct connector compatible with standard ductwork
• Requires a dedicated 20 AMP circuit with 12 gauge wiring rated for at least 90¬∞C
• Easy installation with sliding hanger bars for mounting between joists or trusses up to 24 inches on center
• Accepts a 100-watt maximum incandescent bulb (bulb not included)
• Maintenance-friendly with permanently lubricated heater and washable grille
• Complies with applicable electrical and fire-rated construction codes and standards
