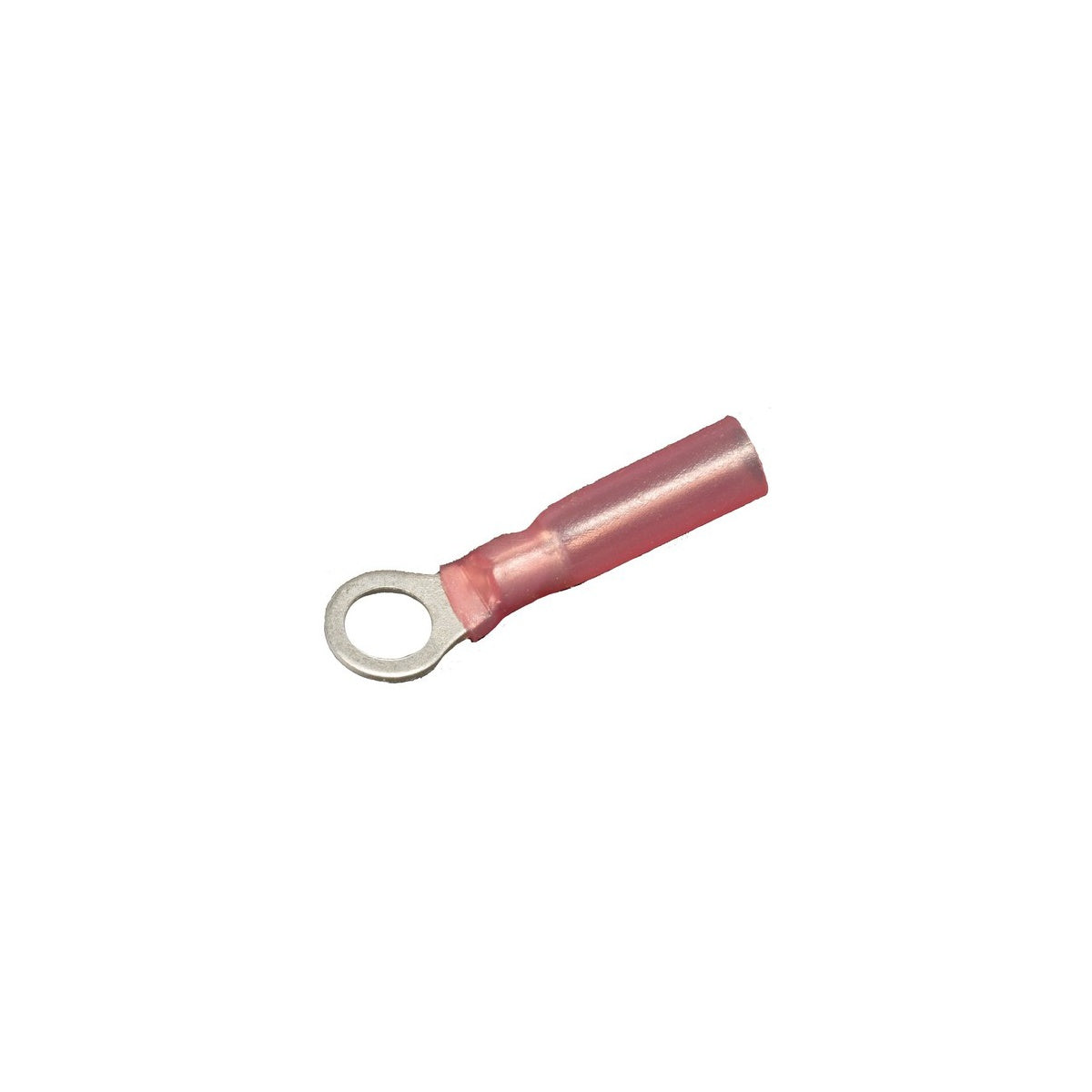

Heat Shrinkable Ring Terminals - 22-16 Wire, #8 Stud

This heat shrinkable ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high strength copper alloy with electro-tin plating, it provides corrosion resistance and reliable conductivity. The terminal features high density polyethylene heat shrink insulation, making it suitable for use in electrical distribution, lighting solutions, and switchgear assemblies requiring durable and insulated wire terminations.

Specifications

• Material: Copper
• Insulation Material: High Density Polyethylene Heat Shrink
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #8
• Length: 1.122 inches (28.5 mm)
• Width: 0.315 inches (8 mm)
• Diameter (d2): 0.169 inches (4.3 mm)
• Thickness: 0.03 inches (0.75 mm)
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Finish: Electro-tin plated
• Certifications: UL, cUL, RoHS

Features

• Color coded heat shrink insulation for easy identification
• Expanded insulation funnel entry eliminates strand ‚ÄúHang Up‚Äù for improved crimping reliability
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction
• Wire range stamped on surface for quick interpretation

Downloads & Links

• Spec Sheet
