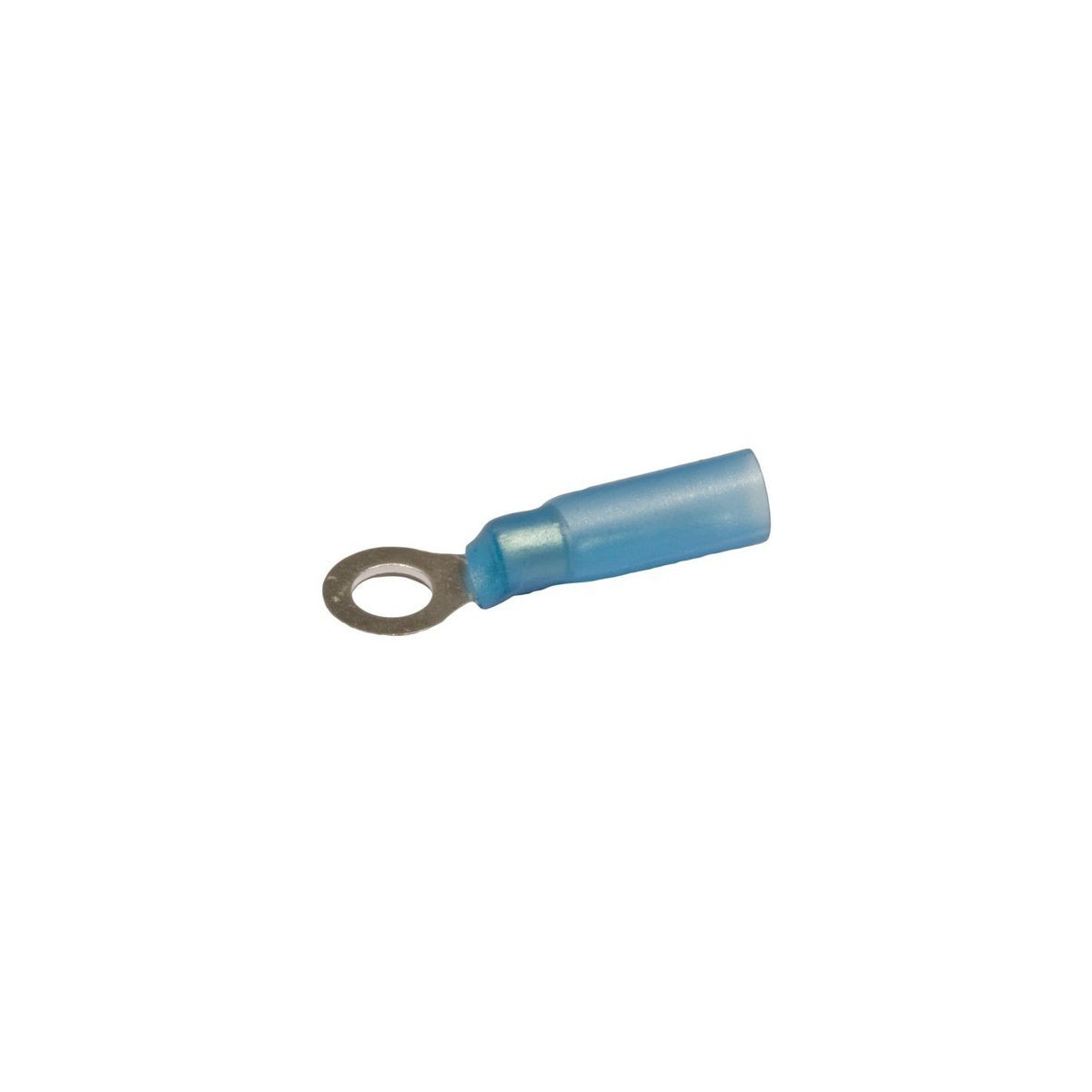

Heat Shrinkable Ring Terminals - 16-14 Wire, #8 Stud

This Heat Shrinkable Ring Terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it features a high-strength copper alloy construction with electro-tin plating for corrosion resistance. The terminal is insulated with color-coded high-density polyethylene heat shrink material, providing reliable mechanical stress relief and enhanced durability. Suitable for use by electrical distributors and switchgear suppliers, it supports wire ranges 16-14 AWG and a #8 stud size, making it ideal for various lighting solutions and electrical installations.

Specifications

• Material: Copper
• Insulation Material: High Density Polyethylene Heat Shrink
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #8
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG - 30 Amps, 16 AWG - 18 Amps
• Length: 1.201 inches (30.5 mm)
• Width: 0.335 inches (8.5 mm)
• Thickness: 0.031 inches (0.8 mm)
• Finish: Electro-tin plated
• Certifications: UL, cUL, RoHS

Features

• Color-coded heat shrink insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated surface enhances corrosion resistance
• Expanded insulation funnel entry prevents strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick interpretation
• Brazed seam construction prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief
