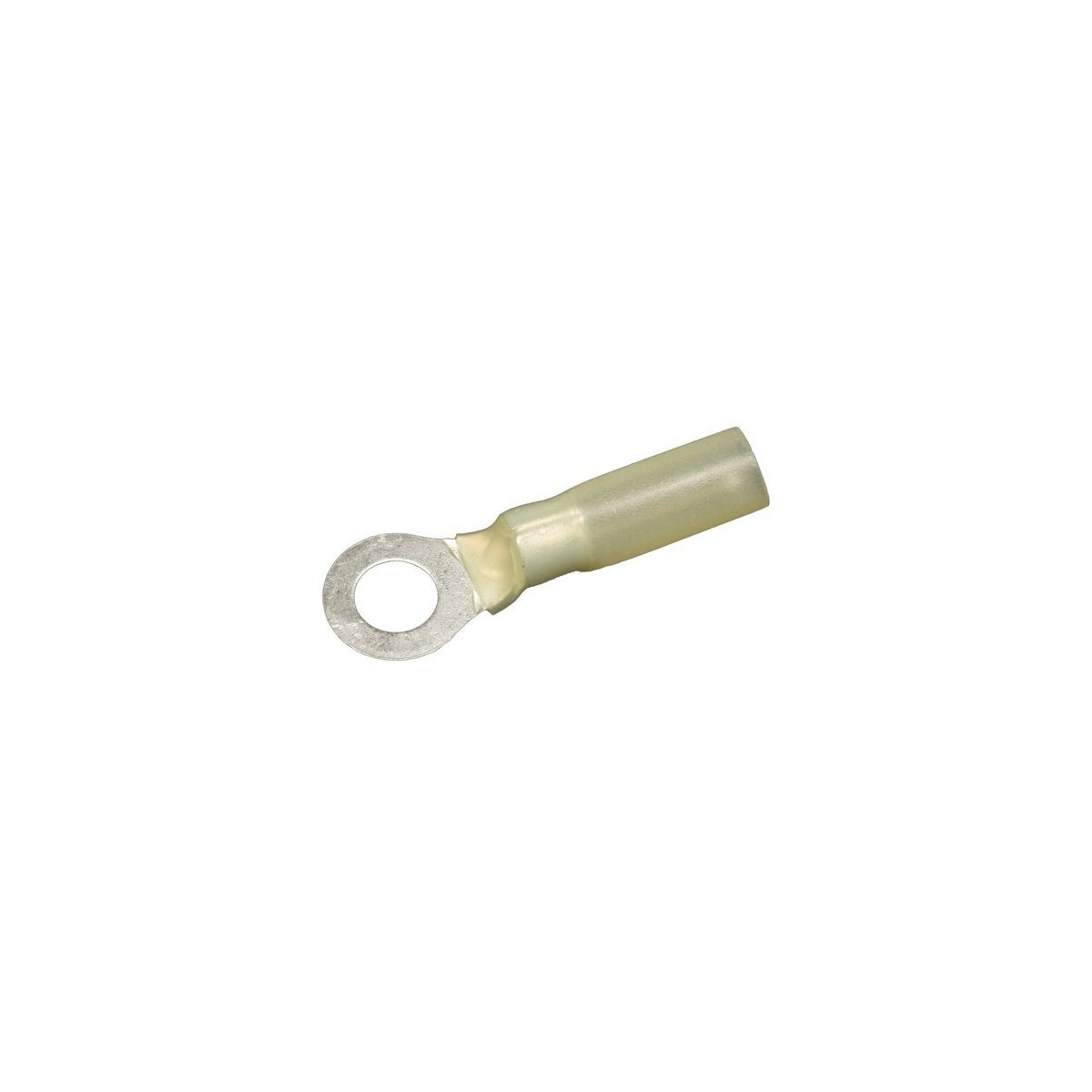

Heat Shrinkable Ring Terminals - 12-10 Wire, #8 Stud

This heat shrinkable ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring reliable terminations with corrosion resistance and mechanical stress relief. The terminal is optimized for use with 12-10 AWG wire and features a #8 stud size, making it ideal for various lighting solutions and general electrical wiring tasks.

Specifications

• Material: Copper
• Insulation Material: High Density Polyethylene Heat Shrink
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #6
• Length: 1.346 inches (34.2 mm)
• Width: 0.374 inches (9.5 mm)
• Diameter (hole): 0.146 inches (4.3 mm)
• Thickness: 0.039 inches (1.0 mm)
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Current Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Certifications: UL, cUL, RoHS Compliant

Features

• Color coded HD polyethylene heat shrink insulation for easy identification
• Manufactured from high strength copper alloy with electro-tin plating for corrosion resistance
• Expanded insulation funnel entry eliminates strand ‚Äúhang up‚Äù and improves crimping reliability
• Wire range stamped on surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief at insulation and barrel junction
