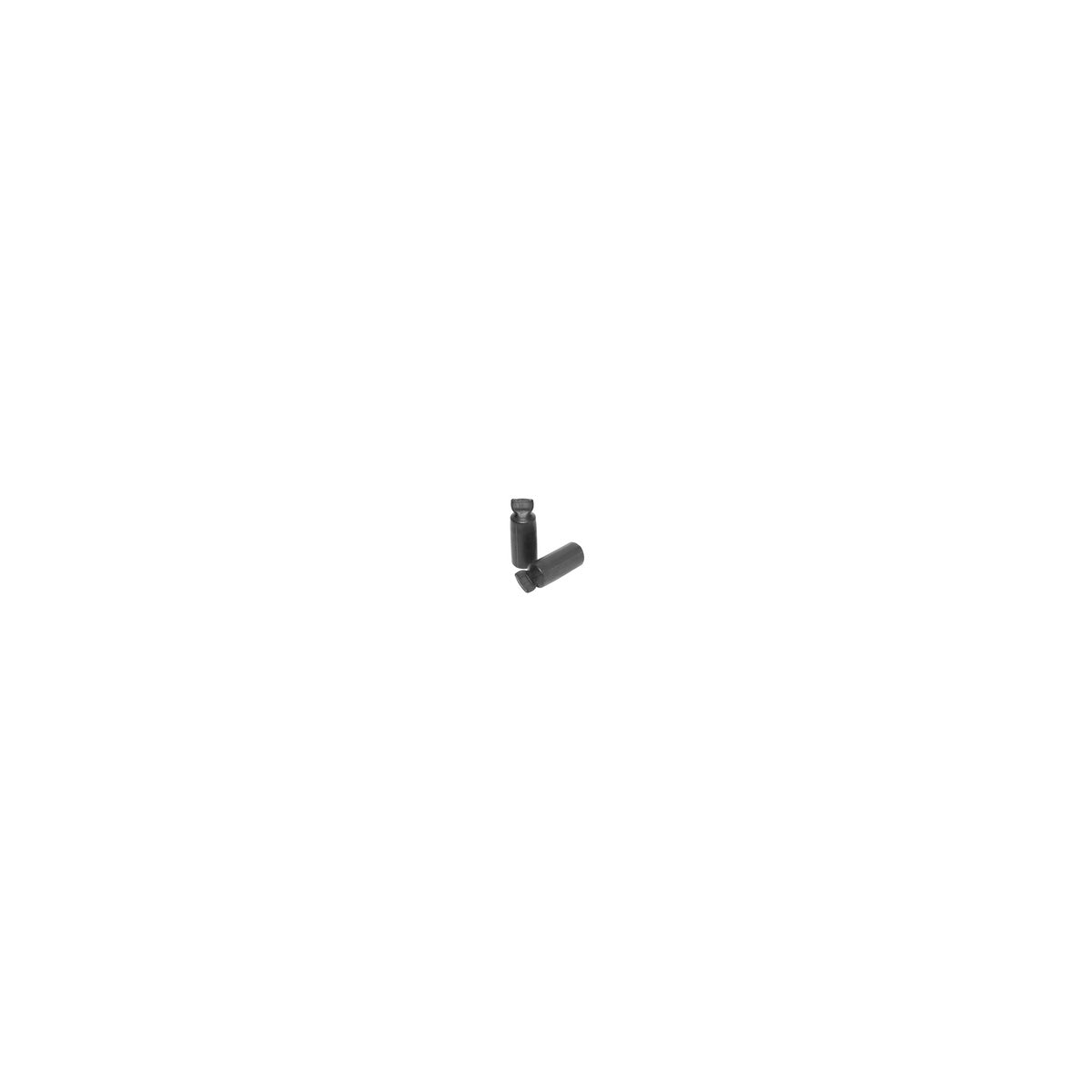

Heat Shrink Tubing, End Caps, Installation Accessories HSIC10500FR - Heat Shrinkable End Cap

This heavy wall heat shrinkable end cap is designed for insulating exposed conductors in energized electrical applications. Manufactured by Burndy, it is made from cross-linked black polyolefin, providing fire retardant properties and reliable protection for wire and cable terminations. Suitable for use by electrical distributors and switchgear suppliers, it accommodates copper wire sizes from 1/0 to 500 kcmil and flex wire sizes from #1 to 313 kcmil, with a 600 V rating.

Specifications

• Material: Cross-linked Polyolefin
• Color: Black
• Shrink Ratio: 3:1
• Wire Range: 1/0-500 kcmil (Code), #1-313.1 kcmil Flex
• Voltage Rating: 600 V
• Wall Thickness (Recovery): 0.120 in
• Wall Thickness (Expanded): 0.039 in
• Length (Recovery): 3.00 in
• Expansion Length: 4.00 in
• Maximum Recovery Internal Diameter: 0.35 in
• Product Weight: 0.2400 lbs
• Fire Retardant: Yes
• UPC: 781810266557
• UL Listed: Yes
• RoHS Compliant: Yes

Features

• Heavy wall construction for enhanced mechanical protection
• Fire retardant for increased safety in energized applications
• 3:1 shrink ratio accommodates a wide range of conductor sizes
• Adhesive-lined interior provides superior moisture and weather resistance
• Designed to insulate exposed conductors effectively
• Compatible with copper, aluminum, steel, polyethylene, EPR, and PVC jacketed materials
