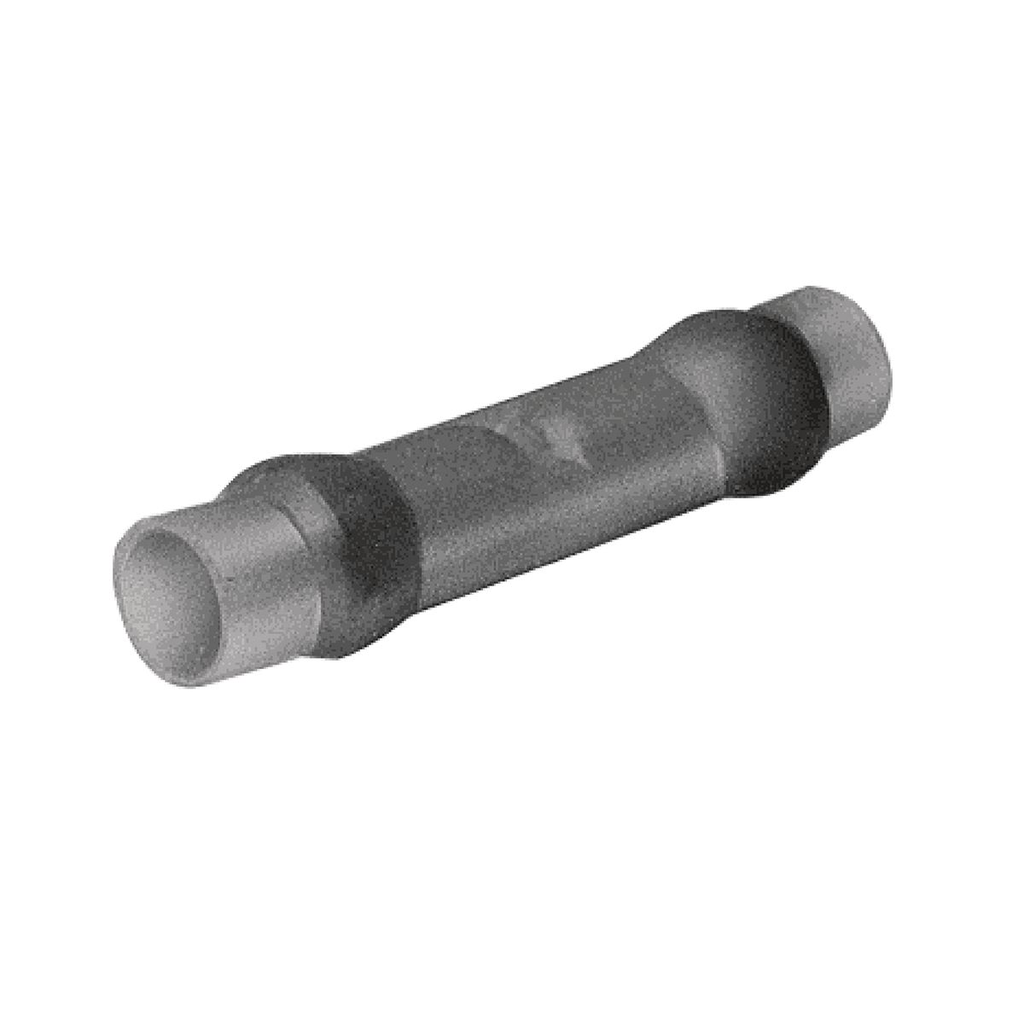

Heat Shrink Splice For 16 - 14 AWG by Burndy – Electrical Wire Connector

This heat shrink splice is designed for splicing 16 to 14 AWG copper conductors, suitable for aircraft and commercial flexible cable applications. It provides a reliable electrical connection with waterproof and weather-resistant insulation, ideal for electrical distributors and lighting solutions requiring secure wire and cable connections.

Specifications

• Manufacturer: Burndy
• Manufacturer Part #: YSE14HHS
• Conductor Size: 16 - 14 AWG
• Conductor Type: Copper Solid and Stranded
• Connection Type: Seamless Butt Splice
• Insulation Type: Heat Shrink
• Material: Copper
• Plating Type: Tin
• Length Overall: 1.50 in (38 mm)
• Inside Diameter: 0.2 in
• Strip Length: 11/32 in
• Made in USA: Yes
• Operating Temperature Range: -55°C to 110°C
• Minimum Shrink Temperature: 135°C

Features

• Manufactured from tin-plated, seamless electrolytic copper tubing for maximum conductivity and tensile strength
• Integral barrel design provides excellent cable support and strain relief
• Smooth funnel entry for easy wire insertion
• Transparent heat shrink insulation offers waterproofing and weather resistance
