Heat Shrink End Cap 195
SKU: #304124
Part: #HSC-195
UPC: 662381014672
Heat Shrink End Cap 195
SKU: #304124
Part: #HSC-195
UPC: 662381014672
Description

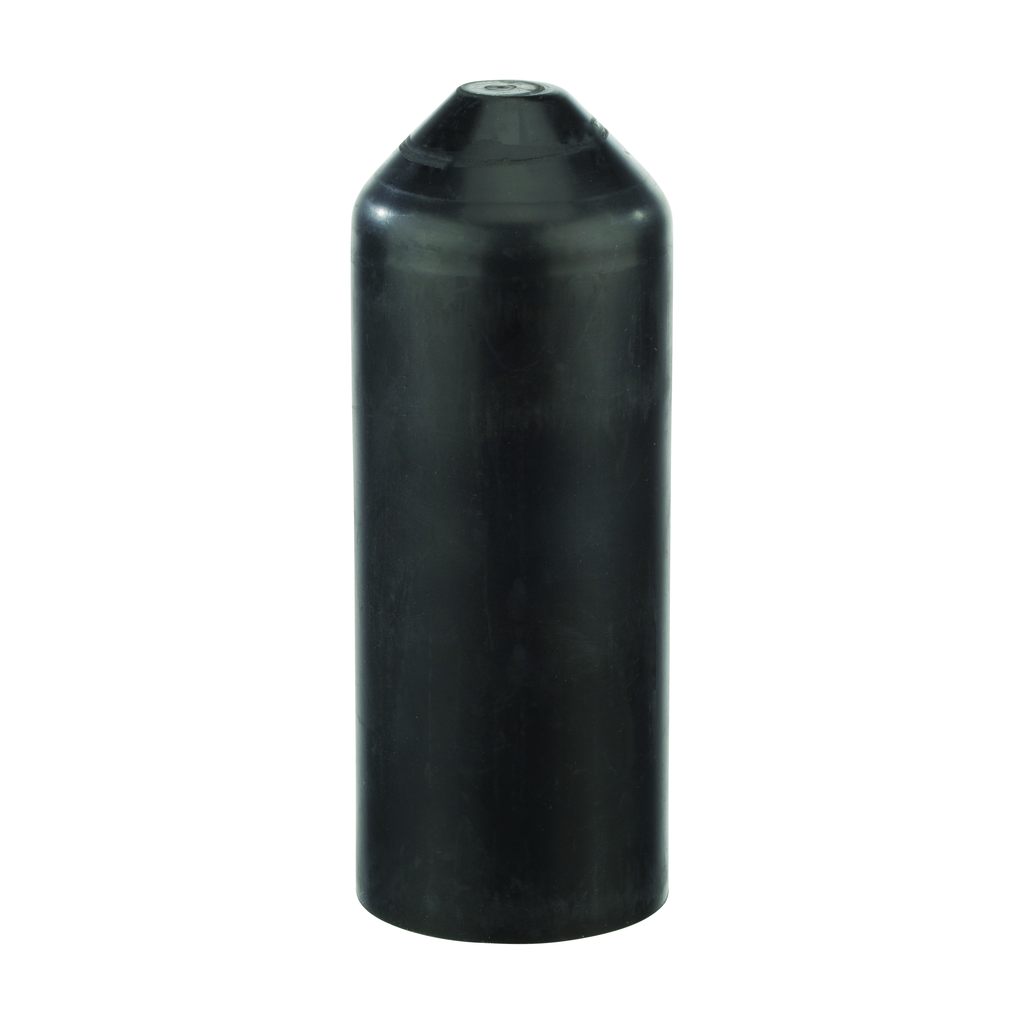

Heat Shrink End Cap 195 – Heat Shrinkable Cable End Sealing
The Heat Shrink End Cap 195 by NSI Industries is designed for efficient and reliable cable end sealing in electrical distribution and wire and cable applications. This heat-shrinkable end cap provides a watertight seal, insulation, abrasion, and corrosion resistance, suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers. It is compatible with cables carrying up to 1,000 volts and can be used as a live seal or for storing and pulling de-energized cables.
Specifications
- Application: NSI
- Amperage Rating: 1000 V
- Dimensions (L x W x H): 6.25 in x 1.95 in x 1.95 in
- Product Weight: 0.19 lbs
- Manufacturer Part #: HSC-195
- Country of Origin: United States
- Made in USA: Yes
- Qualified to ANSI C119.1-1986
- Rated to ICEA electrical withstand test for 1,000 volts
Features
- Replaces greases, tapes, epoxy, encapsulation, or dips for cable end sealing
- Installation can be accomplished in less than one minute in most sizes
- Made of thermally stabilized polyolefin with interior meltable sealant for watertight seal
- Provides complete insulation, abrasion, and corrosion resistance
- Seals over lead, steel, aluminum, copper, and standard plastic and elastomeric insulating materials and conduit
- Can be used as a live seal for cables carrying up to 1,000 volts
- Suitable for end sealing during cable storage and pulling of de-energized cables
