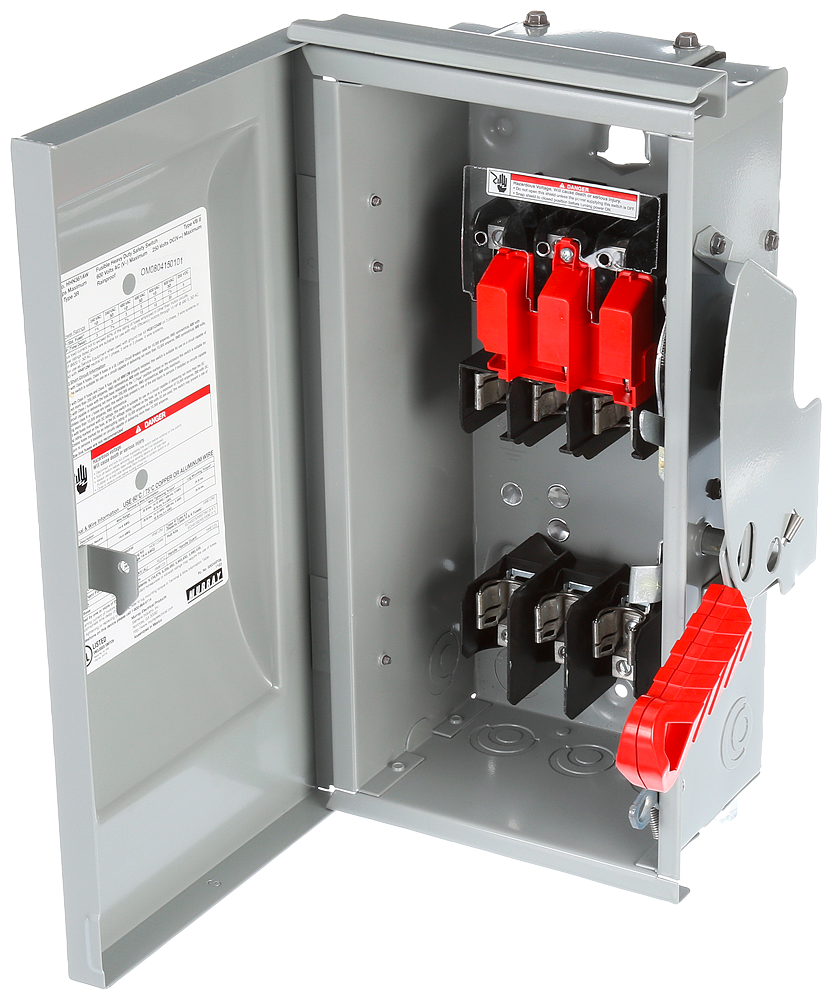

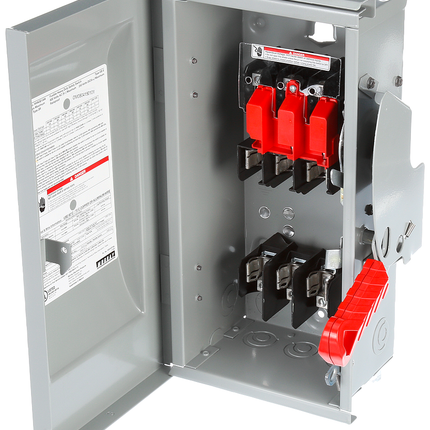

HDSS NF 3P3W 600V 60A N3R G BAR – Heavy Duty Safety Switch

The Siemens HDSS NF 3P3W 600V 60A N3R G BAR is a heavy duty, low voltage circuit protection safety switch designed for disconnecting service entrance or load applications. This 3-pole, non-fused switch is housed in a NEMA 3R rated enclosure suitable for outdoor use, making it ideal for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers requiring reliable and durable service entrance equipment.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: HNF362RG
• Type: Heavy Duty Safety Switch
• Poles: 3
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Enclosure Type: NEMA 3R (Outdoor Rated)
• Material: Steel
• Mounting: Surface Mount
• Connection Type: Mechanical Lugs
• Dimensions (WxHxL): 14 in x 8 in x 20 in
• Operating Cycles: 10,000
• Country of Origin: United States
• Made in USA: Yes
• Application: Disconnecting Means for Service Entrance/Loads

Features

• Factory installed ground bar for enhanced safety and grounding convenience
• Non-fused design suitable for service entrance or load disconnect applications
• Heavy duty construction ensures durability in demanding electrical environments
• Outdoor rated NEMA 3R enclosure provides protection against rain, sleet, and external ice formation
• Mechanical lug connections allow secure and reliable wire termination
• Designed for use by electrical distributors and switchgear suppliers requiring robust safety switches

Downloads and Links

• Siemens HDSS NF 3P3W 600V 60A N3R G BAR Specification Sheet (PDF)
• Installation Instructions (PDF)
