HDSS NF 3P3W 600V 30A N4X NM NL
SKU: #314394
Part: #HNF361XL
UPC: 783643451797
HDSS NF 3P3W 600V 30A N4X NM NL
SKU: #314394
Part: #HNF361XL
UPC: 783643451797
Description

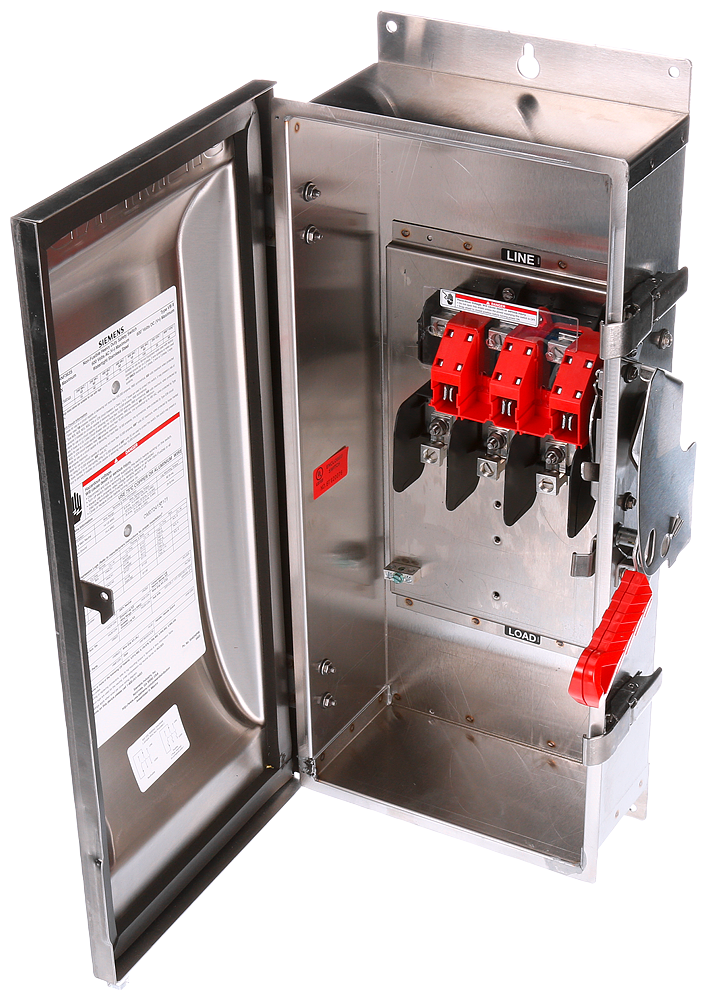

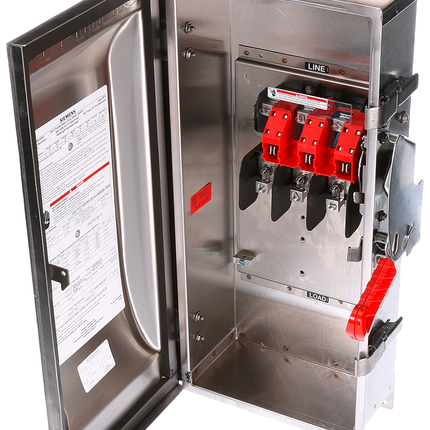

HDSS NF 3P3W 600V 30A N4X NM NL Heavy Duty Safety Switch
The Siemens HDSS NF 3P3W 600V 30A N4X NM NL is a heavy duty, low voltage circuit protection safety switch designed for disconnecting means for service entrance and loads. It is suitable for electrical distributors and switchgear suppliers requiring reliable non-fused safety switches with robust construction. This 3-pole, 3-wire switch operates at 600VAC with a 30 amp rating and is housed in a NEMA 4X fiberglass reinforced polyester non-metallic enclosure, making it suitable for surface mounting in harsh environments.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: HNF361XL
- Number of Poles: 3
- Amperage Rating: 30 A
- Voltage Rating: 600 VAC
- Enclosure Type: NEMA 4X
- Material: Fiberglass Reinforced Polyester
- Mounting: Surface
- Connection Type: Mechanical Lugs
- Dimensions: 7.56 in (W) x 6.27 in (H) x 7.56 in (L)
- Operating Cycles: 10,000
- Product Weight: 17.2 lbs
- Country of Origin: Mexico
Features
- Heavy duty construction for industrial applications
- Non-fused design for service entrance and load disconnect
- Type 4/4X non-metallic enclosure provides corrosion resistance and weather protection
- Mechanical lug connections ensure secure wiring
- Compact dimensions facilitate installation in tight spaces
- Rated for 600 VAC operation with 30A capacity
- Surface mounting for ease of installation
