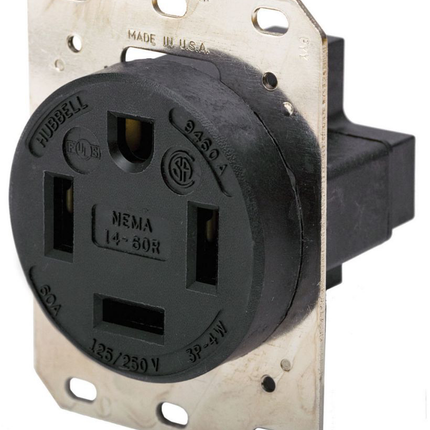

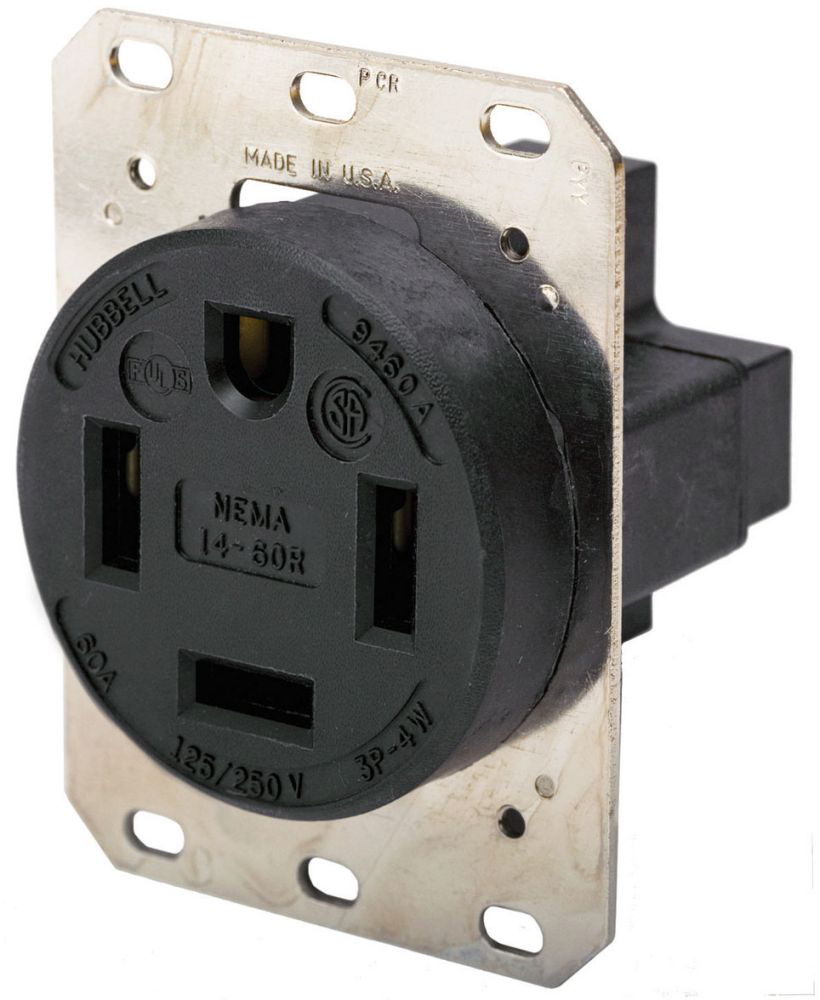

HBL9460A, Straight Blade Receptacle – Heavy Duty Electrical Distributor Component

The Hubbell HBL9460A is a heavy-duty straight blade receptacle designed for reliable power delivery in industrial and commercial applications. As part of Hubbell Wiring Device-Kellems' line of wiring devices, this receptacle provides essential protection and efficiency for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers. It is suitable for indoor dry environments unless additional protection is provided.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL9460A
• Application: Heavy Duty
• Amperage Rating: 60 A
• Current: 60 amperes
• NEMA Rating: 14-60R
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire Grounding
• Connection: Back and Side Wired Screw Terminals
• Mounting: Screw Mount
• Grounding: Grounding
• Material: Thermoplastic/Composite
• Color: Black
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.6000 lbs
• UPC: 783585015347

Features

• Reinforced thermoplastic polyester (RTP) construction for durability and safety
• Back and side wired screw terminals for flexible and secure wiring
• Designed to maximize energy efficiency and reduce total cost of ownership
• Meets NEMA 14-60R standards for 3-pole, 4-wire grounding receptacles
• Supports heavy-duty applications requiring 60A, 125/250V power
• Provides essential protection against electrical hazards to personnel and equipment
