HBL500 Series Metal Raceway Combination Connector

The HBL500 Series Metal Raceway Combination Connector by Hubbell Wiring Device-Kellems is designed for connecting raceway systems without offsetting to 3.25-inch or 4-inch outlet boxes mounted on surfaces with a knockout for ½ inch trade size conduit. This connector is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable raceway solutions in lighting and electrical installations.

Specifications

• Material: Cold Rolled Steel
• Manufacturer Part #: HBL5785IV
• Color: Ivory

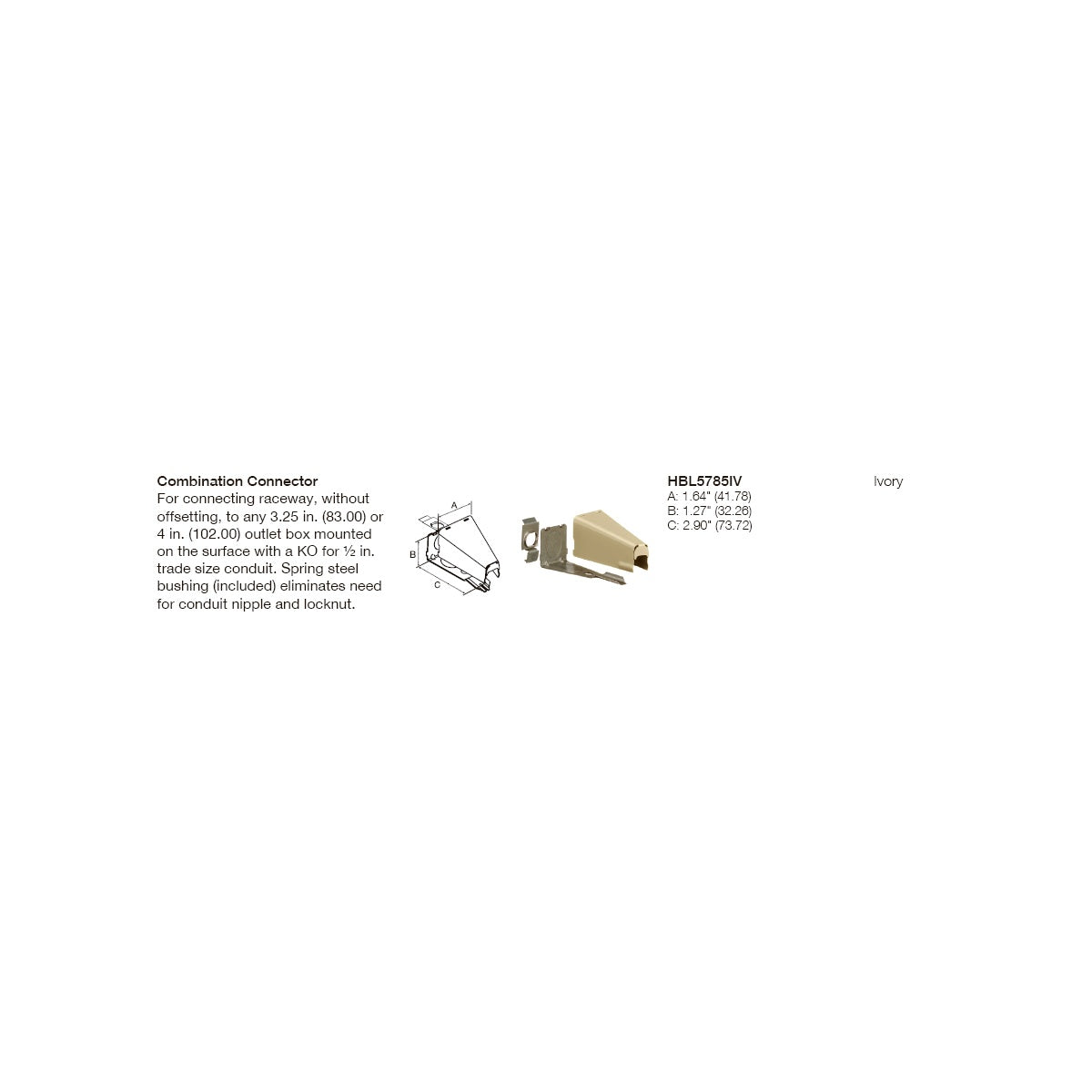

• Dimensions: A - 1.64" (41.78 mm), B - 1.27" (32.26 mm), C - 2.90" (73.72 mm)
• Product Weight: 0.0500 lbs
• UPC: 783585217321

Features

• Spring steel bushing included, eliminating the need for conduit nipple and locknut
• Designed for easy connection to 3.25 in. or 4 in. outlet box with ½ in. trade size conduit knockout
• Durable cold rolled steel construction with painted finish on connector cover and galvanized steel on base and bushing
