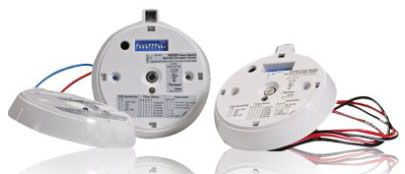

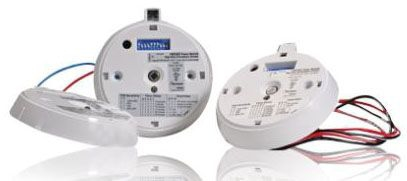

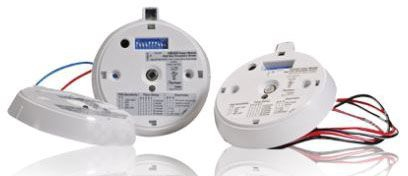

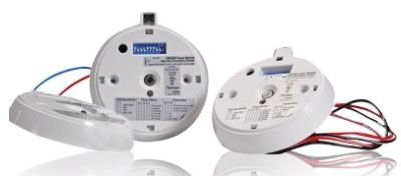

HB340 Occupancy Sensor for High Bay Lighting Solutions

The HB340 occupancy sensor by Wattstopper is a high bay, low voltage passive infrared (PIR) sensor designed for automatic lighting control in warehouses and other indoor high bay spaces. It is engineered for reliable occupancy detection and efficient lighting management, suitable for electrical distributors and switchgear suppliers focusing on lighting solutions. The sensor operates with a separate power module and interchangeable lens, allowing flexible coverage tailored to mounting heights between 20 and 40 feet.

Specifications

• Manufacturer: Wattstopper
• Manufacturer Part #: HB340
• Voltage: 24 VDC (low voltage operation)
• Power Consumption: 7 mA
• Mounting Type: Fixture-mounted
• Product Weight: 4.5 lbs
• Country of Origin: China
• UPC: 754182920358
• Compatible Power Supply: Wattstopper BZ power pack (supports up to 15 sensors)
• Operating Temperature Range (HB300C-B variant): -40°F to 131°F (-40°C to 55°C) for cold ambient applications

Features

• Modular design with separate power module and interchangeable lens for customizable coverage
• Passive Infrared (PIR) sensor technology for occupancy detection
• Adjustable PIR sensitivity and time delay settings via DIP switches
• Easy fixture mounting with snap-in hardware or optional back box and extender modules
• Designed for use with Wattstopper low voltage power packs
• Reliable occupancy control output to power pack for automatic lighting management
• Suitable for high bay applications with mounting heights from 20 to 40 feet
• White color finish for aesthetic integration with fixtures
