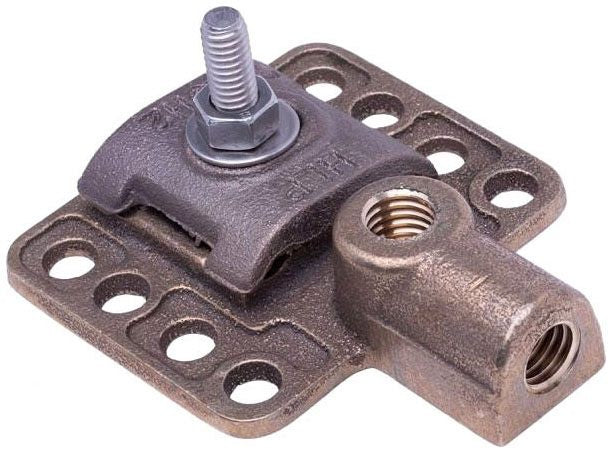

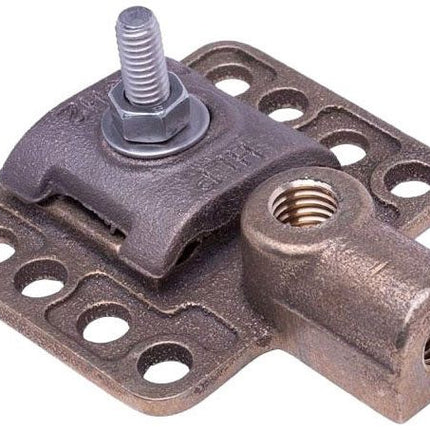

HARGER CUBU12I 1/2 CU UNIVERSAL BASE – Lightning Protection Mounting Base

The HARGER CUBU12I 1/2 CU Universal Base is designed for secure mounting of lightning protection air terminals. This component supports both vertical and horizontal installation, providing versatile mounting options for electrical distributors and lighting solutions. It is suitable for use with Class I and Class II conductors in grounding and lightning protection systems, serving as a reliable connector in wire and cable assemblies supplied by switchgear suppliers.

Specifications

• Manufacturer: Harger
• Manufacturer Part #: CUBU12I
• Material: Copper
• Internally Threaded Hub Diameter: 1/2 inch
• Dimensions (L x W x H): 1 in x 1 in x 1 in
• Product Weight: 0.78 lbs
• Application: Allows vertical or horizontal installation
• UPC: 808475049278

Features

• Universal mounting design allows installation either vertically or horizontally
• Compatible with self-tapping screws, nails, or adhesives for mounting
• Accepts all Class I and Class II conductors for grounding and lightning protection
• Constructed from highly conductive copper for durability and performance
