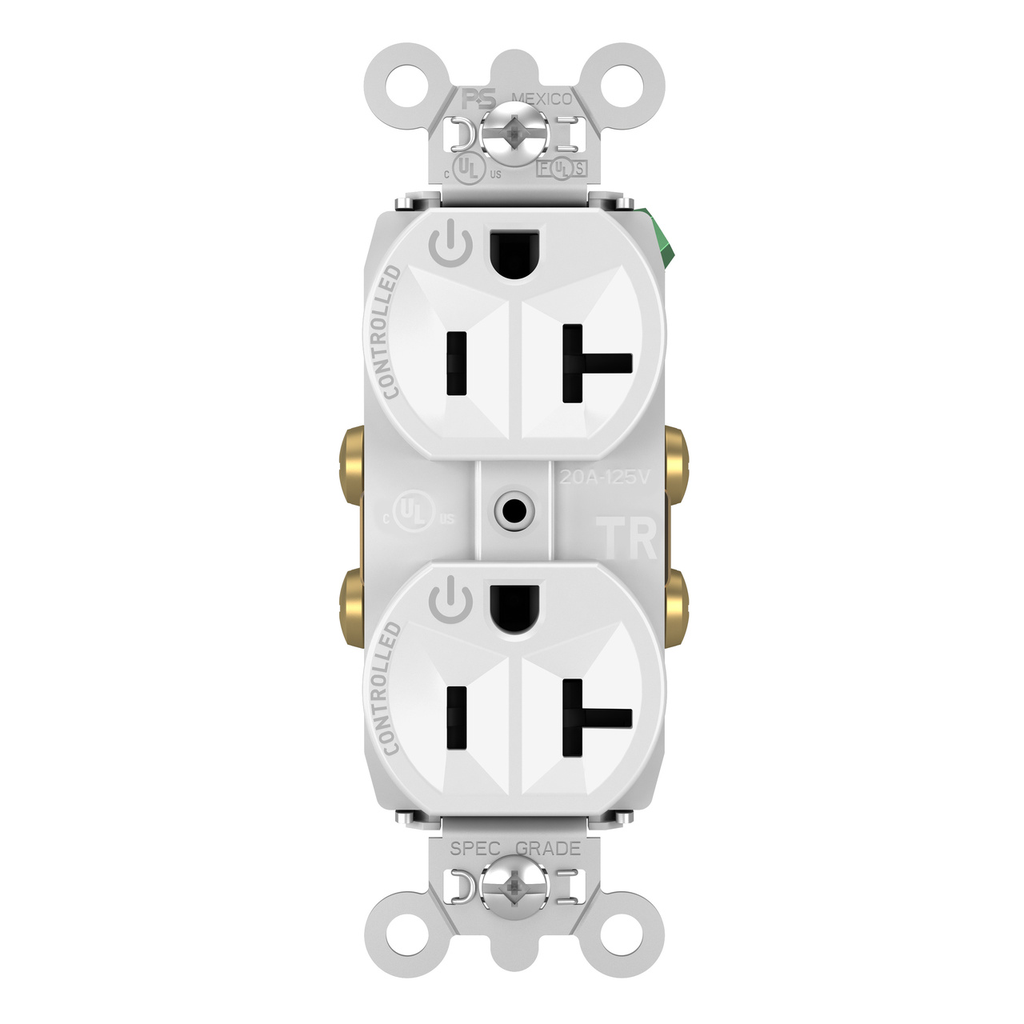

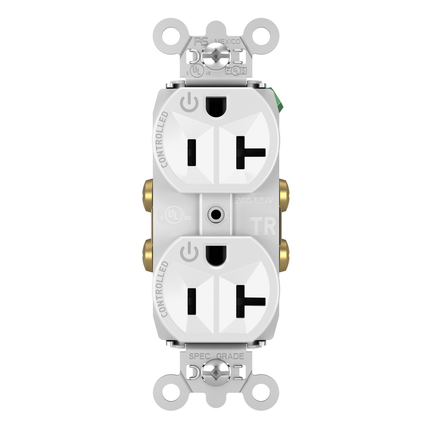

Hard-Use Spec Grade Plug Load Controllable Receptacle, 20A, 125V, White – Plug Load Control

This Pass & Seymour heavy-duty spec grade plug load controllable receptacle is designed for commercial electrical distribution and lighting solutions requiring controlled receptacles. It is suitable for wire and cable installations where plug load control is needed to meet energy efficiency standards and code compliance. This device provides permanent controlled receptacle marking for easy identification and is compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1, making it ideal for use in commercial buildings requiring energy management and load control.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: TR5362CDW
• Amperage Rating: 20A
• Voltage Rating: 125V
• Color: White
• Dimensions: 1.322 in (Width) x 2.635 in (Height) x 1.9375 in (Length)
• Country of Origin: Mexico
• Product Weight: 0.2000 lbs
• Compliance: NEMA-approved, NEC, CA Title 24, ASHRAE 90.1

Features

• Permanent controlled receptacle marking on face for long-lasting, easy identification
• Durable plated steel strap design for maximum durability and corrosion resistance
• Built-in PlugTail¬Æ connector for fast, reliable, finger-safe installation with no exposed terminals
• Dual mechanical shutter system for tamper resistance (TR model)
• .032 inch thick brass, triple-wipe power contacts for lasting retention
• Auto-ground clip assures positive ground connection
• Half-controlled version includes welded, pre-wired lead controlling top half for split-circuit applications
• UL Listed, cUL file number E140596, meets Federal Specification WC596
