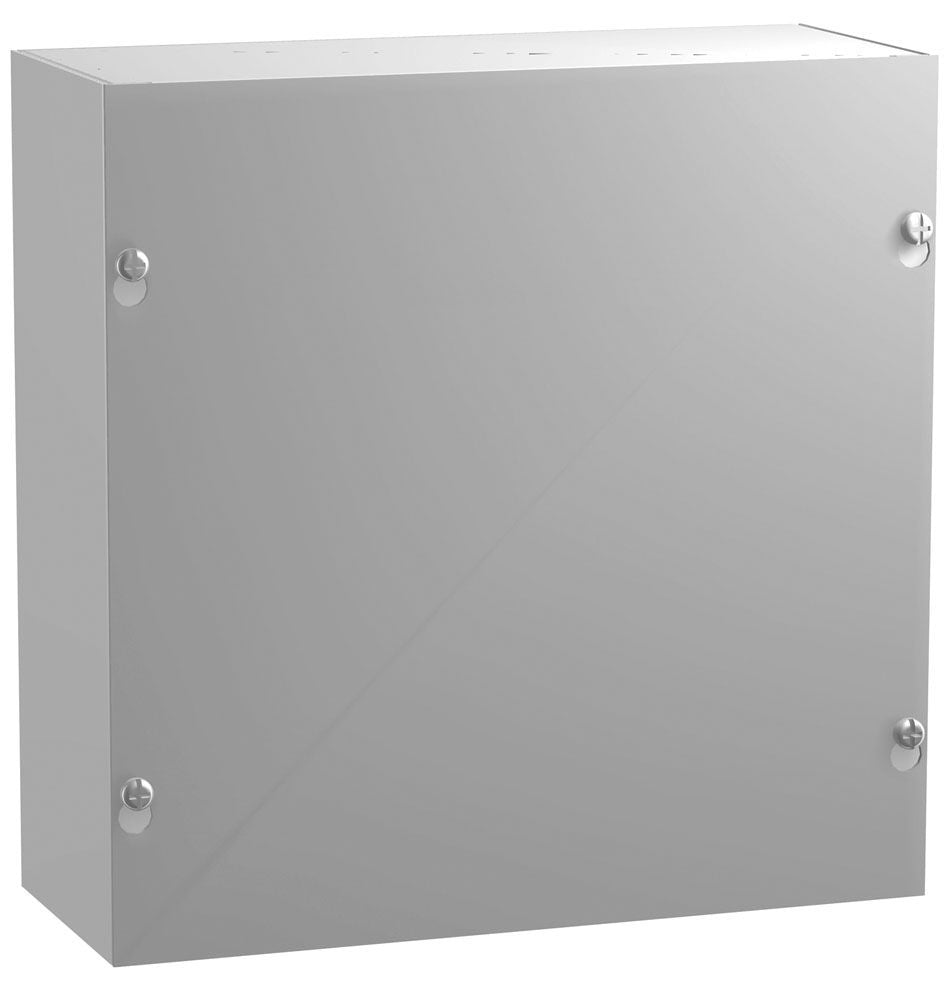

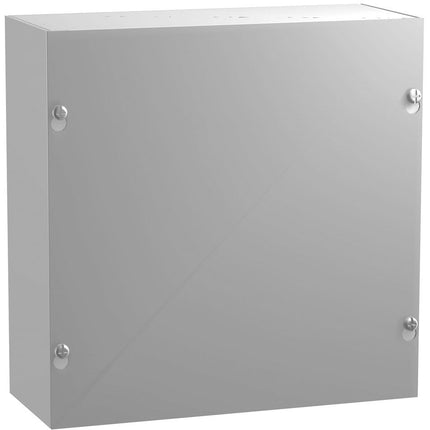

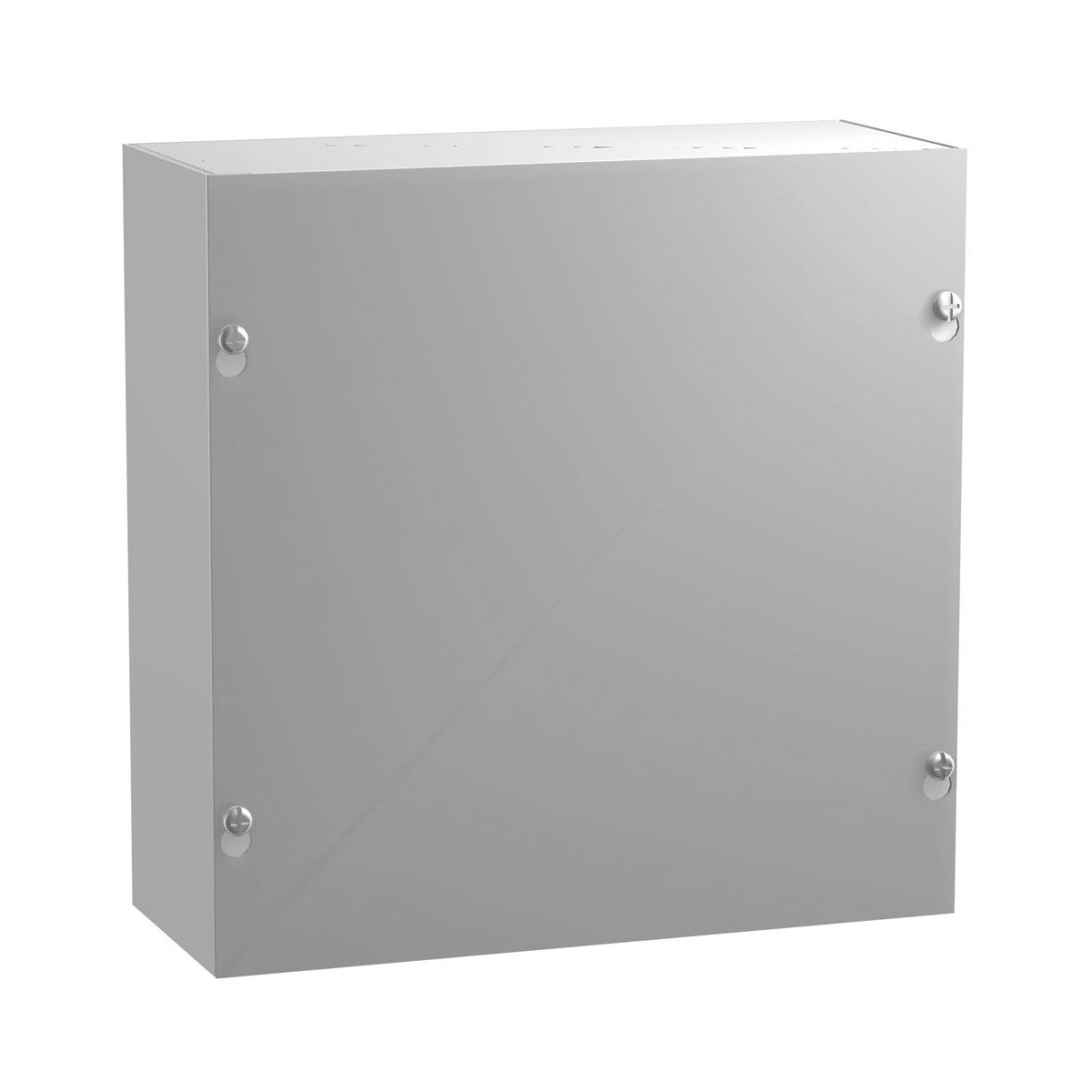

HAMMOND CS202010 N1 SCREW COVER - 20 X 20 X 10 - Steel Junction Box

This Hammond Power Solutions CS202010 junction box is designed for general purpose indoor commercial use as a junction, pull, or switch box. It is suitable for electrical distributors and switchgear suppliers requiring durable wire and cable enclosure solutions compliant with industry standards.

Specifications

• Material: Mild Steel
• Color: Gray
• Mounting: Wall
• NEMA Rating: Type 1
• Cubic Capacity: 4000 Cubic in
• Dimensions (H x W x D): 20.00" x 20.00" x 10.00"
• Manufacturer: Hammond Power Solutions
• Manufacturer Part #: CS202010
• Product Weight: 35 lbs
• UPC: 623980360454

Features

• Formed and spot welded construction from 16 gauge steel
• Flat steel screw cover with keyhole slots for easy removal without fully removing screws
• Finished with ANSI 61 gray powder coating for corrosion resistance
• Through holes in back for secure wall mounting
• Grounding location embossed in body for safety compliance
• UL-50 Type 1 and CSA Type 1 certified, compliant with NEMA Type 1 and IEC 60529 IP20 standards
