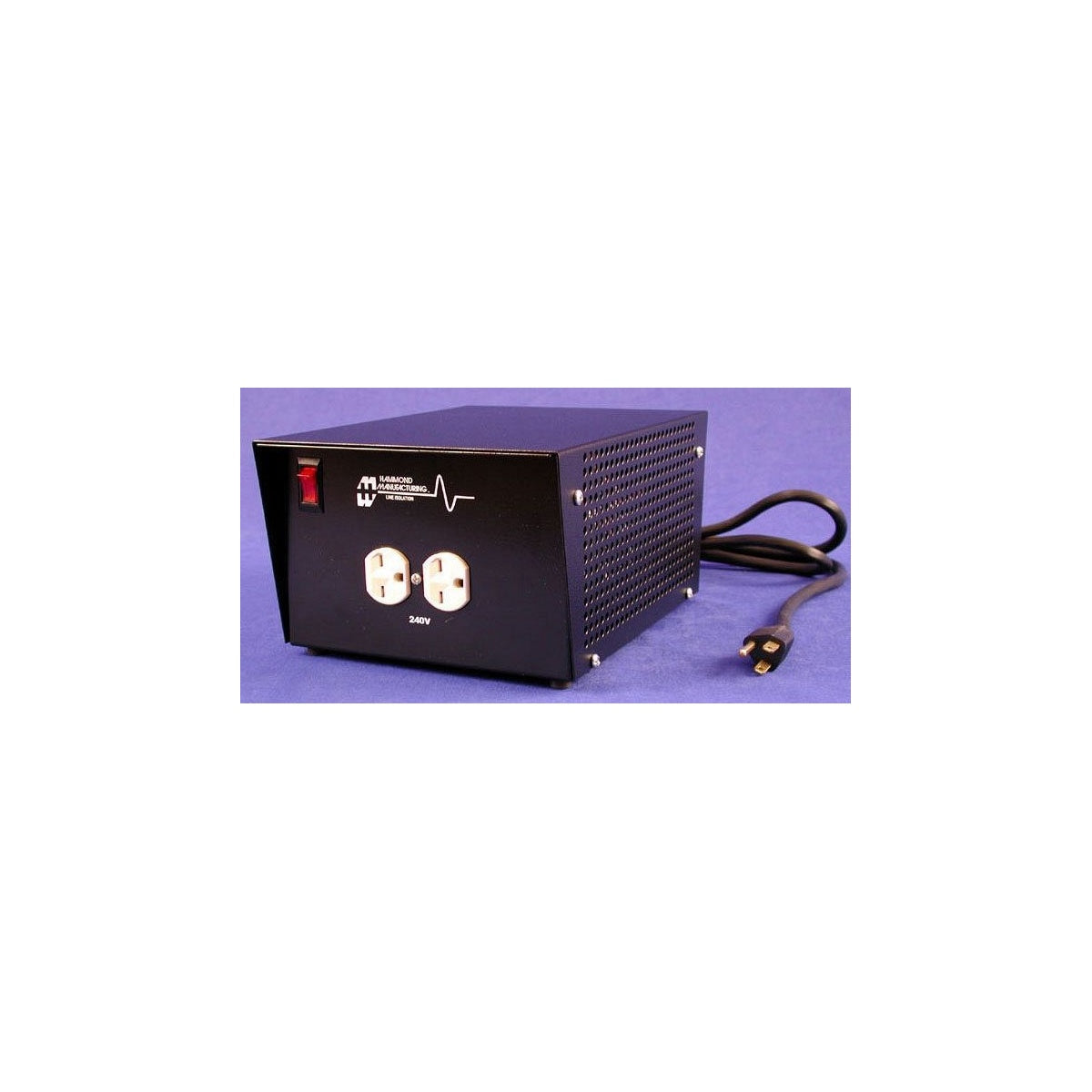

HAMMOND 298CT 250VA Plug In Isolated Transformer

The HAMMOND 298CT is a toroidal isolation transformer designed for step-up voltage applications, converting 120VAC input to 240VAC output. It provides circuit isolation and is suitable for indoor electrical distribution and lighting solutions where reliable voltage transformation and noise reduction are required. This product is ideal for electrical distributors and switchgear suppliers needing a compact, lightweight, and low-profile transformer with built-in safety features.

Specifications

• Primary Voltage: 120VAC, 50/60 Hz
• Secondary Voltage: 240VAC
• Capacity: 250 VA
• Output Outlets: 2 (NEMA 6-15R duplex receptacle)
• Input Plug: Standard North American 3-wire grounded plug (NEMA 5-15P) with 5-foot cord
• Dimensions (L x W x H): 8.25" x 6.00" x 4.00"
• Transformer Hi-Pot Test: 4,000V RMS between primary and secondary
• Product Weight: 10.7 lbs
• Indoor Use Only
• Safety Certifications: C UL & UL Listed (File #E211544)

Features

• Toroidal transformer for high isolation and low electrical noise
• Lightweight and cool operation with low profile design
• Ventilated black steel case with rocker lighted on-off switch
• Circuit breaker protected output for enhanced safety
• Standard 3-wire grounded plug; compatible with adaptors for proper grounding
• Does not convert line frequency; designed for 50 or 60 Hz operation
• Note on Inrush Current: May require slow-blow fuse or time-delayed circuit breaker due to high magnetizing current at startup
