GUSJR4-40-840WU LED Wrap Fixture

The GUSJR4-40-840WU is an affordable, energy-efficient LED wrap fixture designed for general ambient lighting in surface-mount ceiling, wall, or pendant mount applications. This fixture is suitable for electrical distributors and lighting solution providers seeking reliable, long-lasting lighting with advanced features such as 0-10V dimming. It replaces traditional 4-foot linear fluorescent wraparound fixtures and is compatible with standard wiring and mounting hardware for easy installation by electricians.

Specifications

• Manufacturer: RAB
• Input Wattage: 40 watts
• Lumens: 4,834 lumens
• Efficacy: 120 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 82 CRI
• Lens Material: Prismatic Acrylic
• Product Weight: 7.8 lbs
• Minimum Starting Temperature: -20°C (-4°F)
• Maximum Ambient Temperature: 40°C (104°F)
• Housing Material: 24 gauge cold-rolled steel
• Reflector Material: 24 gauge cold-rolled steel with white powder coat
• Lifespan: 50,000 hours (L70 based on IES LM-80 and TM-21)
• Dimming: 0-10V dimmable down to 10%
• Voltage Range: 100-277VAC, 50/60Hz
• UL Listed and suitable for damp locations
• DLC Listed (DLC Product Code: PB16IYJF)

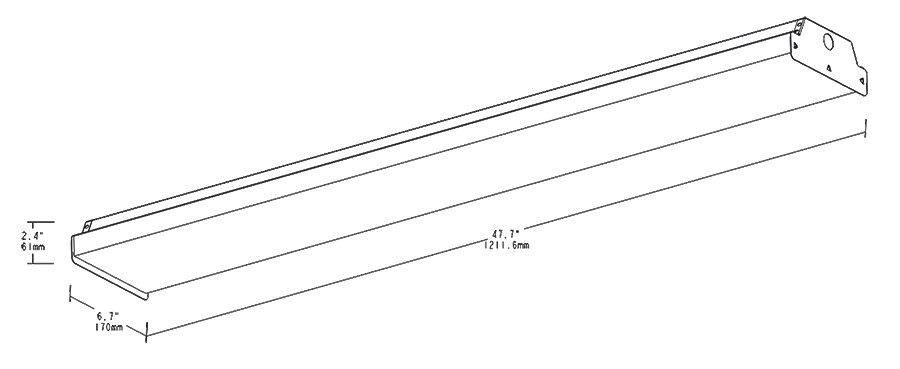

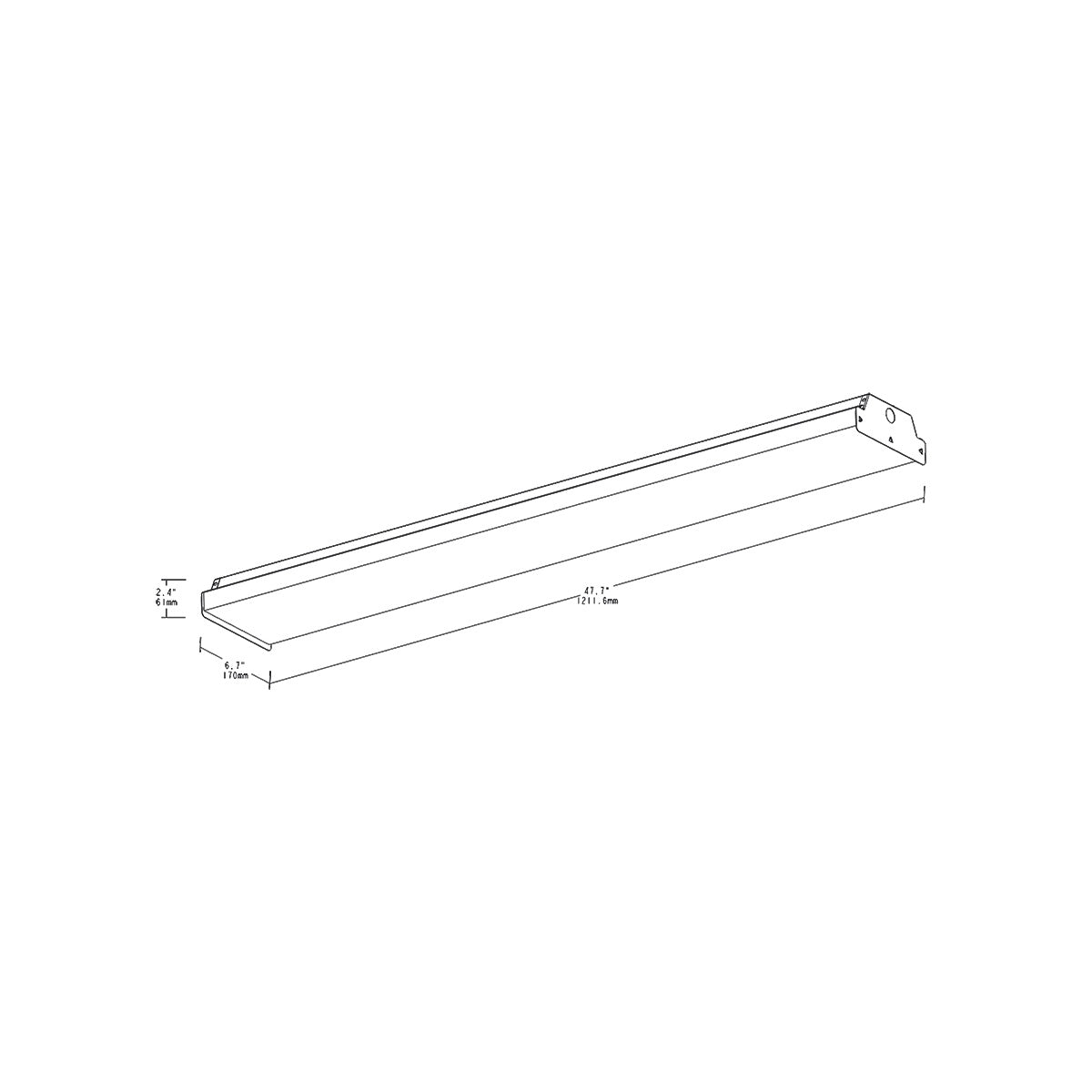

• Dimensions: 47.7" length x 6.7" width x 2.4" height

Features

• Energy-efficient LED technology with high efficacy
• Prismatic acrylic lens for improved visual performance and traditional appearance
• Surface mount design with optional V-hook mounting
• Mercury and UV free; RoHS-compliant components for green technology compliance
• Includes dimming control wiring compatible with 0-10V dimming systems
• Durable white powder coat finish for long-lasting color and protection
• Equivalency to four F32T8 fluorescent lamps
• 5-year limited warranty covering light output, driver performance, and paint finish
