GT500RW Motion Sensor Floodlight – Lighting Solutions

The GT500RW by RAB is a weatherproof outdoor motion sensor floodlight designed for automatic lighting control in commercial and residential applications. It integrates a precise infrared motion sensor with two corrosion-resistant floodlights, making it suitable for electrical distributors and lighting solutions providers seeking reliable security and area illumination devices. This product supports wire and cable installations and is relevant for switchgear suppliers managing lighting control systems.

Specifications

• Voltage: 120 or 277 volts AC, 60 Hz
• Power Consumption: 4 Watts
• Switching Capacity: 500W @ 120VAC Tungsten, 500W @ 277VAC Tungsten, 600W @ 120VAC Electronic Ballast (LED), 1350W @ 277VAC Electronic Ballast (LED)
• Surge Protection: Withstands up to 6000 volts
• Time Adjustment: 10 seconds to 15 minutes
• Detector Sensitivity: Adjustable from 100% to 50%
• Detection Zone: 110° view
• Sensor Housing: Watertight, corrosion-resistant polycarbonate
• Floodlight Material: Tough, corrosion-resistant polycarbonate
• Socket Type: Medium base, accepts PAR-38 lamps, 150 watts max (lamps not included)

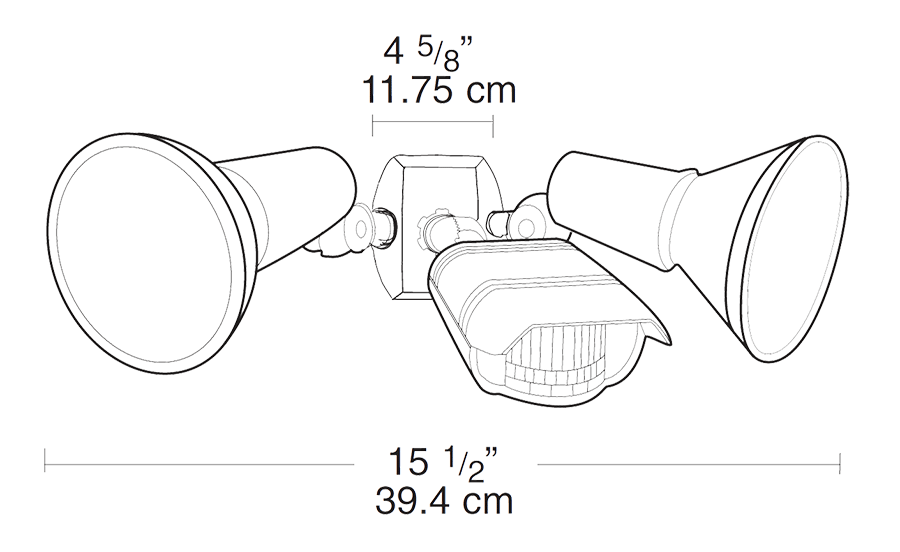

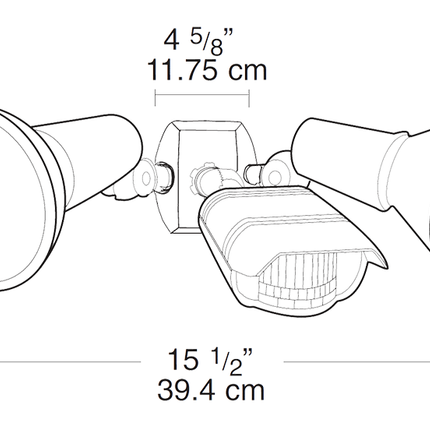

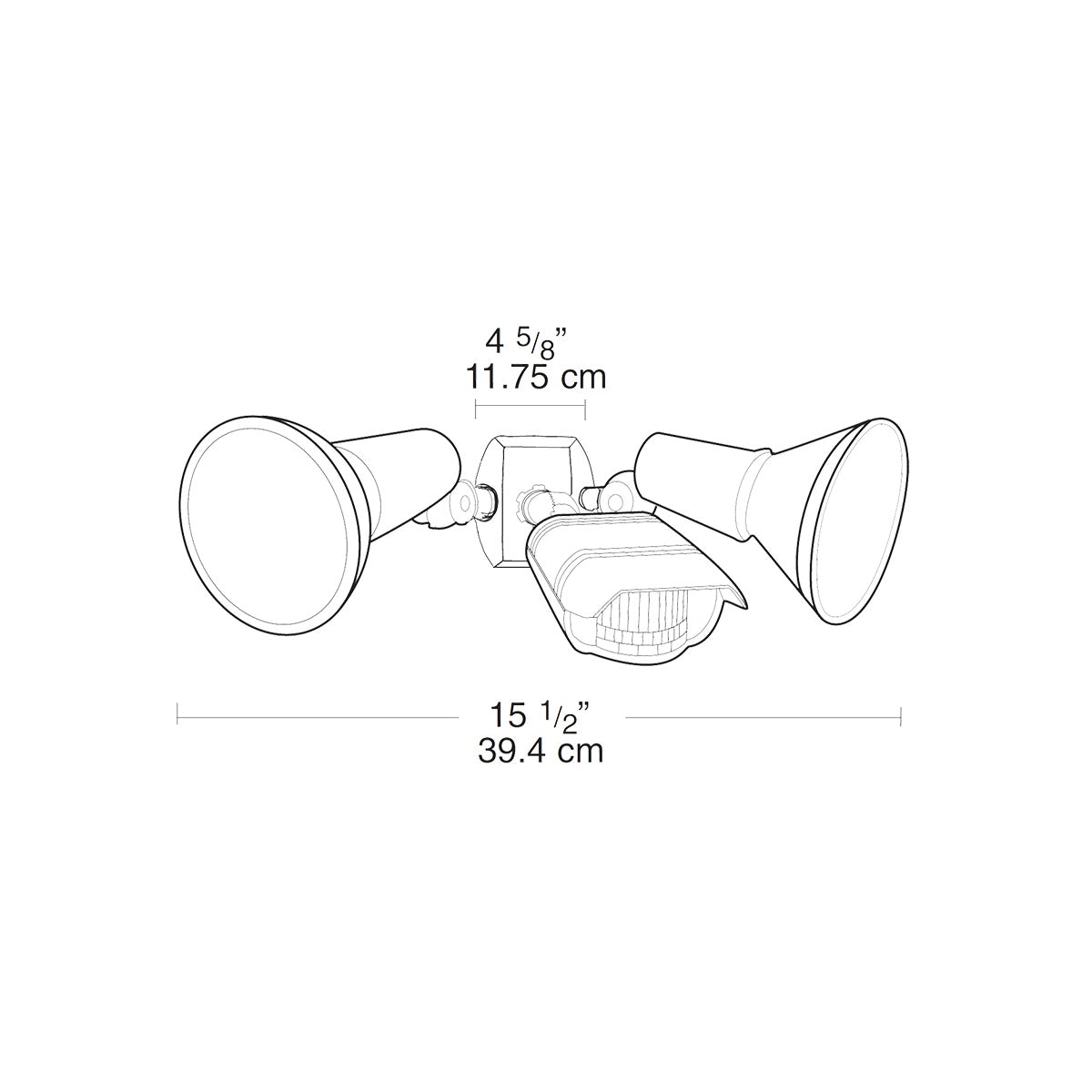

• Dimensions: Width 15 1/2" (39.4 cm), Depth 4 5/8" (11.75 cm)
• Weight: 1.8 lbs
• UL Listed: Suitable for wet locations
• Operating Temperature Range: -4°F to 104°F (-20°C to 40°C)

Features

• Two weatherproof, corrosion-proof floodlights with molded gaskets and corrosion-proof universal cover plate
• Protected manual override with auto reset after 6 hours or at dawn, no extra wiring needed
• New vandal resistant grill
• Temperature compensation for sensor accuracy
• Double look down lens for enhanced detection
• 5-Year sensor warranty
• Buy American Act compliance available upon request

Downloads & Links

• Spec Sheet
• Instructions
