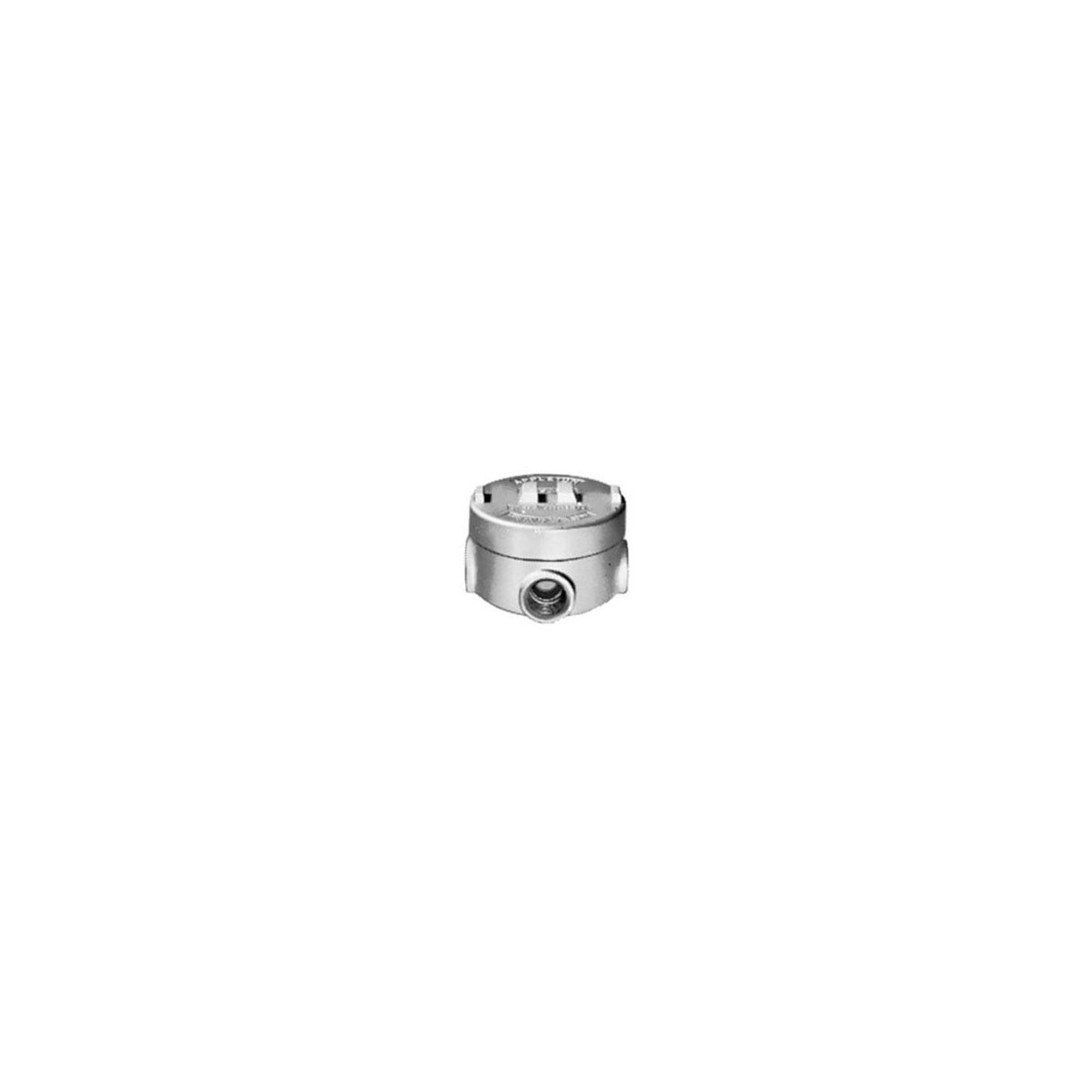

GRU75A Explosionproof Conduit Outlet Box for Electrical Distributors

The Appleton‚Ñ¢ GRU75A Explosionproof Conduit Outlet Box is designed for use in classified indoor and outdoor locations, providing a corrosion-resistant solution ideal for electrical distributors and lighting solutions applications. This universal conduit outlet box facilitates wire pulling, conduit length connections, and changes in conduit direction, making it suitable for maintenance access and system modifications. It is constructed to meet rigorous safety standards for hazardous environments, ensuring reliability in demanding industrial settings.

Specifications

• Material: Epoxy Powder Coated Copper Free Aluminum
• Product Weight: 1.38 lbs
• Manufacturer: Appleton
• Manufacturer Part Number: GRU75A
• Classification: Explosionproof, Dust-Ignitionproof
• Compliance: UL 886 (UL 1203), UL Listed E85310, CSA Certified 025875
• Conduit Size: 3/4 inch
• Capacity: 0.22 dm¬≥ (13.5 in¬≥)

Features

• Universal design with five threaded universal hubs and three close-up plugs
• Furnished with internal ground screw and O-ring for raintight fit (NEMA 3, 4)
• Copper-free aluminum body and cover provide resistance to corrosive atmospheres
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Internally threaded body and externally threaded cover with O-ring
• Covers have pry notches for bar or wrench access
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Suitable for general purpose wiring and classified hazardous locations
