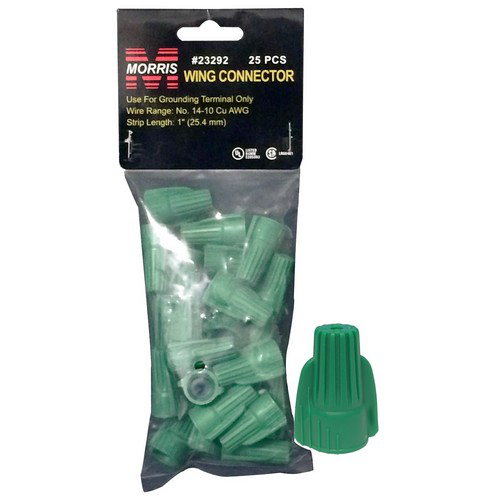

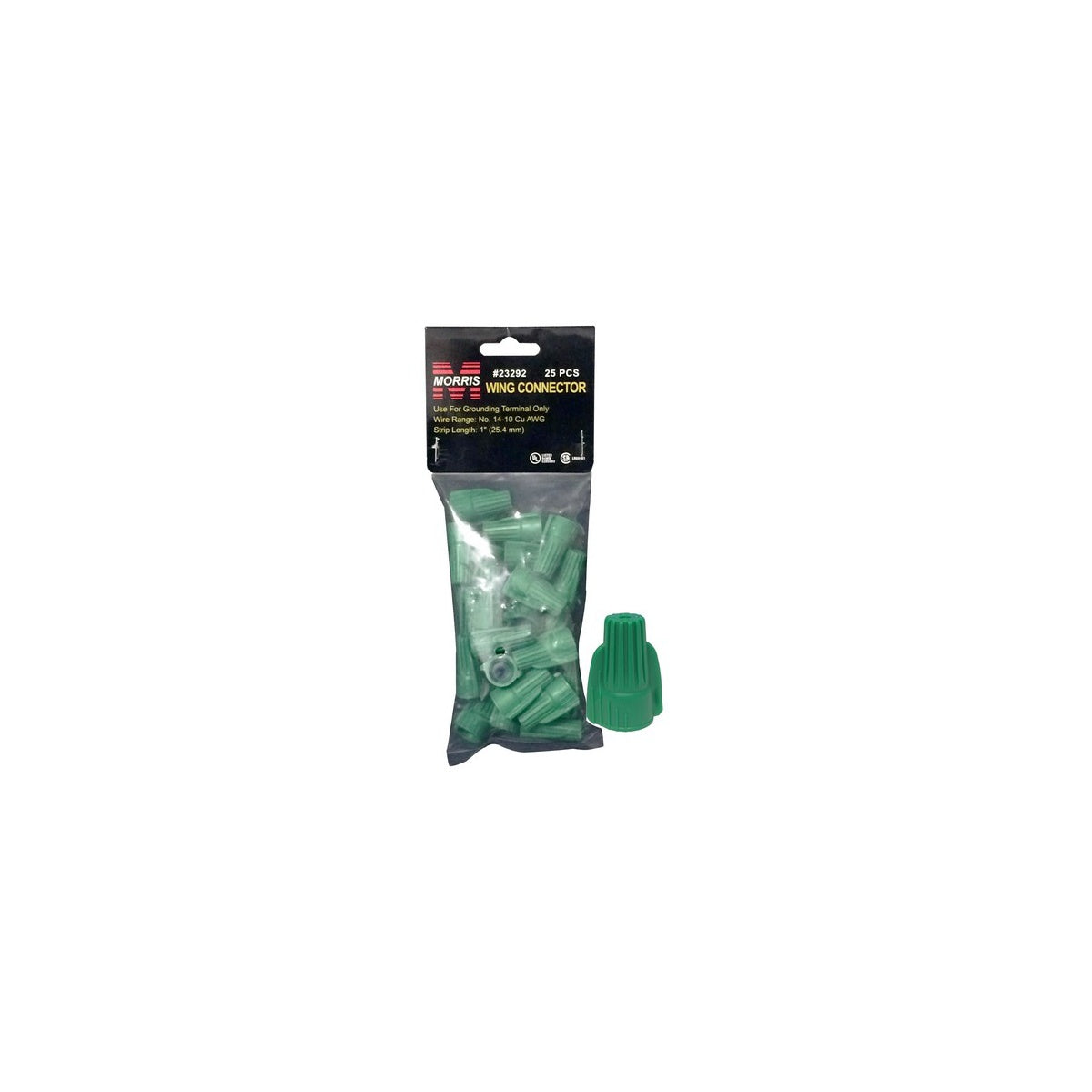

Grounding Connectors Hanging Bag 25 Pack - Grounding Wire Connectors

These green winged grounding connectors are designed for making positive ground connections and bonding non-metallic sheathed cable. Ideal for electrical distributors and switchgear suppliers, they provide reliable grounding solutions with easy installation for wire and cable applications.

Specifications

• Color: Green
• Wire Range: No. 14 to 10 AWG
• Flammability Rating: UL 94V-2
• Temperature Rating: 212¬∞F (105¬∞C)
• Voltage Rating: 600V, 1000V Lighting Fixtures & Signage
• Material: Heavy Duty Thermoplastic with Spring Steel Wire Core
• Packaging: 25 pieces per hanging bag
• Certifications: UL 486C, cULus, RoHS Compliant
• Product Weight: 0.0130 lbs

Features

• Ribbed cap for secure grip and faster fingertip starts, even with slippery hands
• Built-in swept-back wing design enables tightening without tools
• Color coded green for quick identification as grounding connector
• Live action square spring draws wires deep for a safe, tight grip
• No pre-twisting of conductors required; spring creates its own thread
• Reusable connector threads on or off splice for fast circuit changes and additions
• Tough UL 94V-2 flame retardant shell resists cracking or breaking under pressure

Downloads & Links

• Spec Sheet
