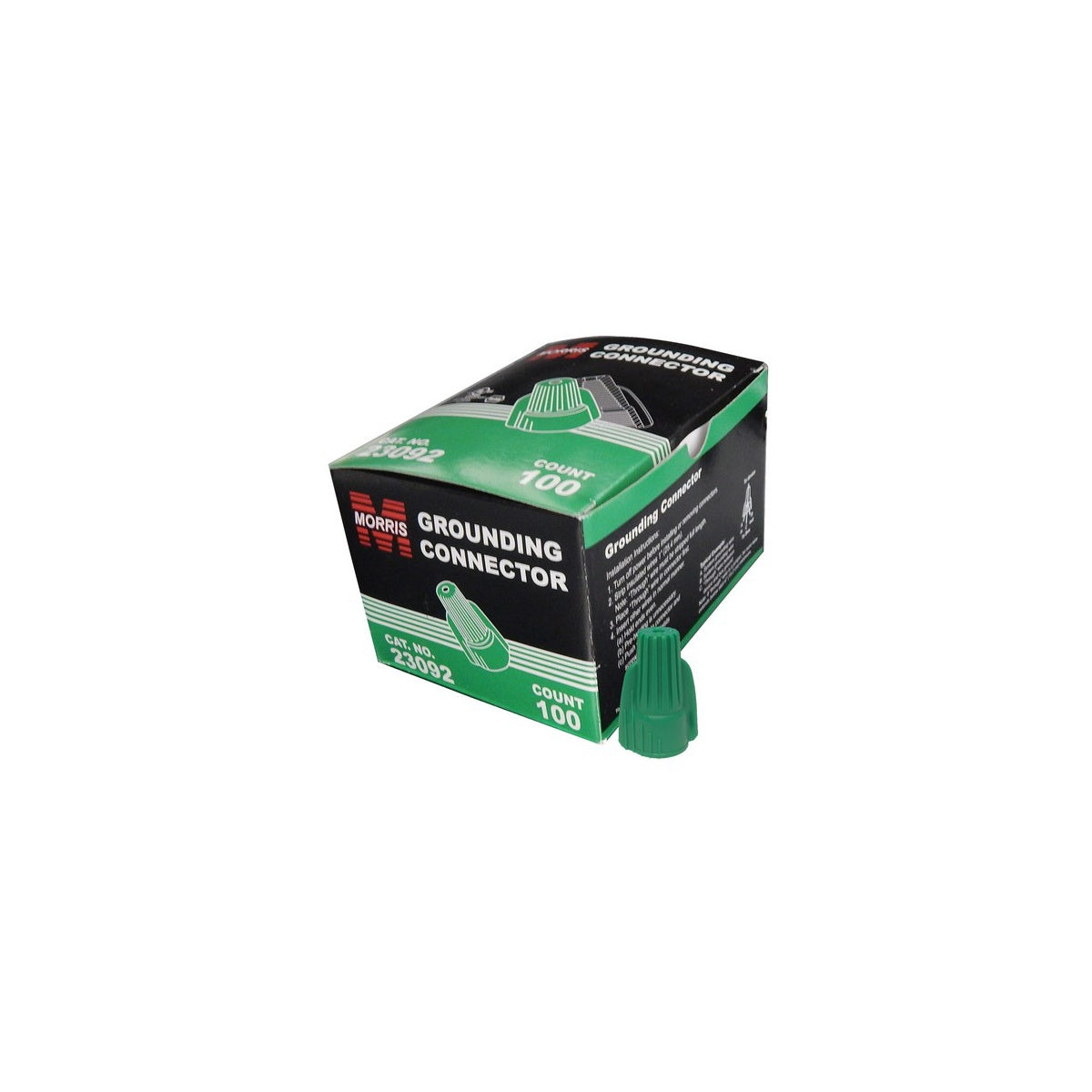

Grounding Connectors Boxed 100 Pack - Grounding Wire Connectors

These grounding connectors are designed for making positive ground connections and bonding non-metallic sheathed cable. Suitable for electrical distributors and lighting solutions providers, they ensure secure and reliable grounding in wire and cable installations. The connectors feature a color-coded green ribbed cap for quick identification as grounding connectors and are ideal for use in switchgear and electrical wiring applications.

Specifications

• Material: Heavy Duty Thermoplastic with Spring Steel Wire Core
• Flammability Rating: UL 94V-2
• Temperature Rating: 212¬∞F (105¬∞C)
• Voltage Rating: 600V, 1000V for Lighting Fixtures & Signage
• Wire Combinations: No. 14 thru 10 AWG
• Product Weight: 0.0160 lbs
• Color: Green
• Certifications: UL 486C, cULus, RoHS Compliant
• Packaging: Boxed, 100 pieces per pack

Features

• Ribbed-cap design provides a secure grip and faster fingertip starts, even with slippery hands
• Built-in swept-back wing enables easy tightening without tools
• Live action square spring draws wires deep into the spring for a safe, tight grip
• No pre-twisting of conductors required; spring creates its own thread
• Reusable connector threads on or off splice for fast circuit changes and additions
• Tough, UL 94V-2 flame retardant shell resists cracking or breaking under extreme pressure
