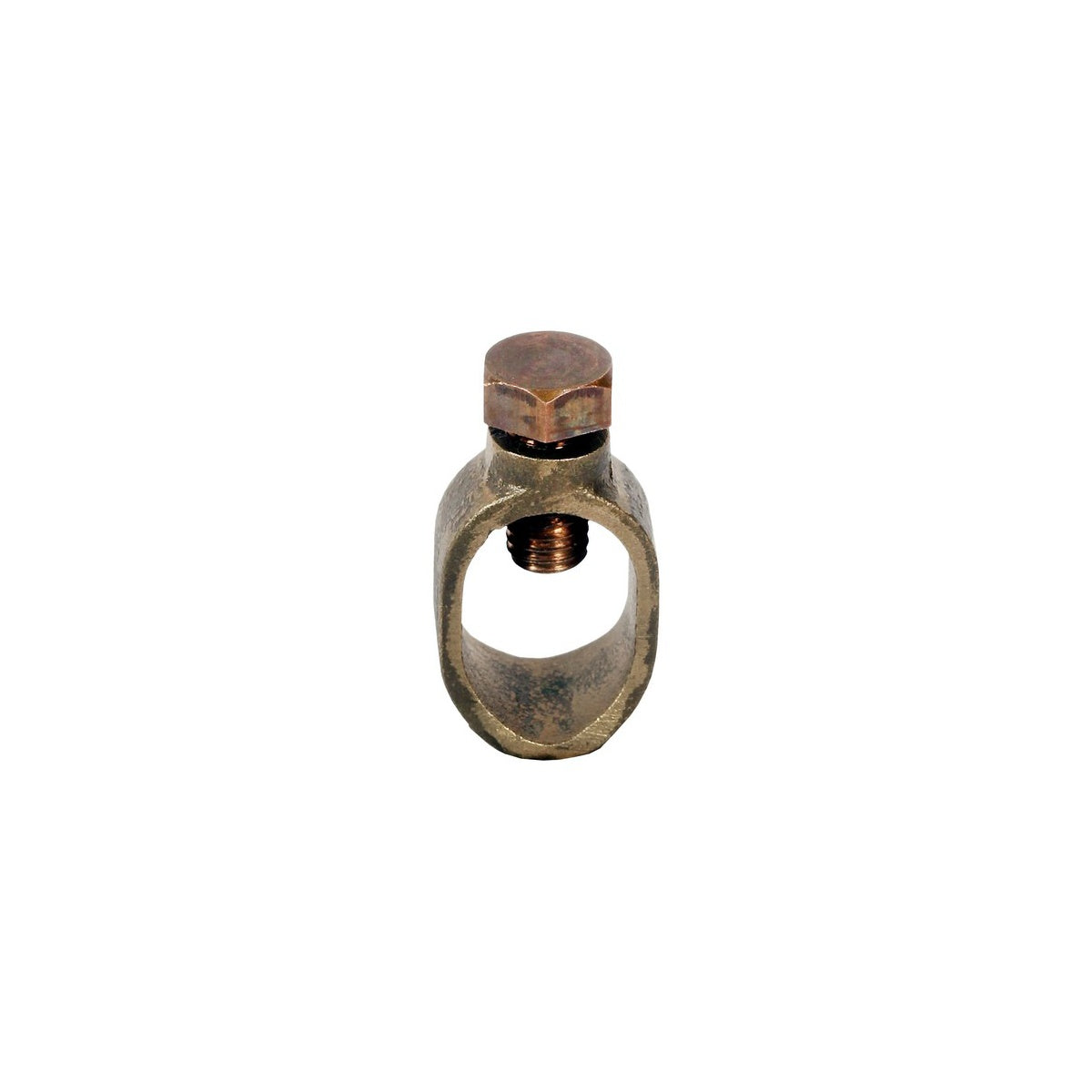

Ground Rod Clamps - Direct Burial 3/4" | Electrical Grounding Solutions

This Ground Rod Clamp is designed for secure and reliable grounding connections in electrical systems. Ideal for use by electrical distributors and switchgear suppliers, it ensures proper contact and alignment between ground wire and ground rod. Suitable for direct burial applications, it supports grounding with copper bonded steel, stainless steel, and galvanized ground rods, making it a vital component in lighting solutions, wire and cable grounding, and overall electrical safety installations.

Specifications

• Material: Bronze
• Rod Diameter: 3/4"
• Wire Range: #1 - #10
• Screw Thread Size: 3/8-16
• Product Weight: 0.1970 lbs
• Manufacturer Part #: 90638
• UPC: 601986906388

Features

• Designed to maintain proper contact and alignment between ground wire and ground rod
• Listed for use with copper bonded steel, stainless steel, and galvanized ground rods
• Cast of high strength copper alloy containing 80% or more copper
• Equipped with silicone bronze or stainless steel bolt for durability
• UL 467 approved for direct burial in soil and concrete
• Direct burial marking on clamps for easy identification

Downloads & Links

• Spec Sheet
