Description
Ground Rod Clamps - Direct Burial 1/2"-3/4" | Electrical Grounding Solutions

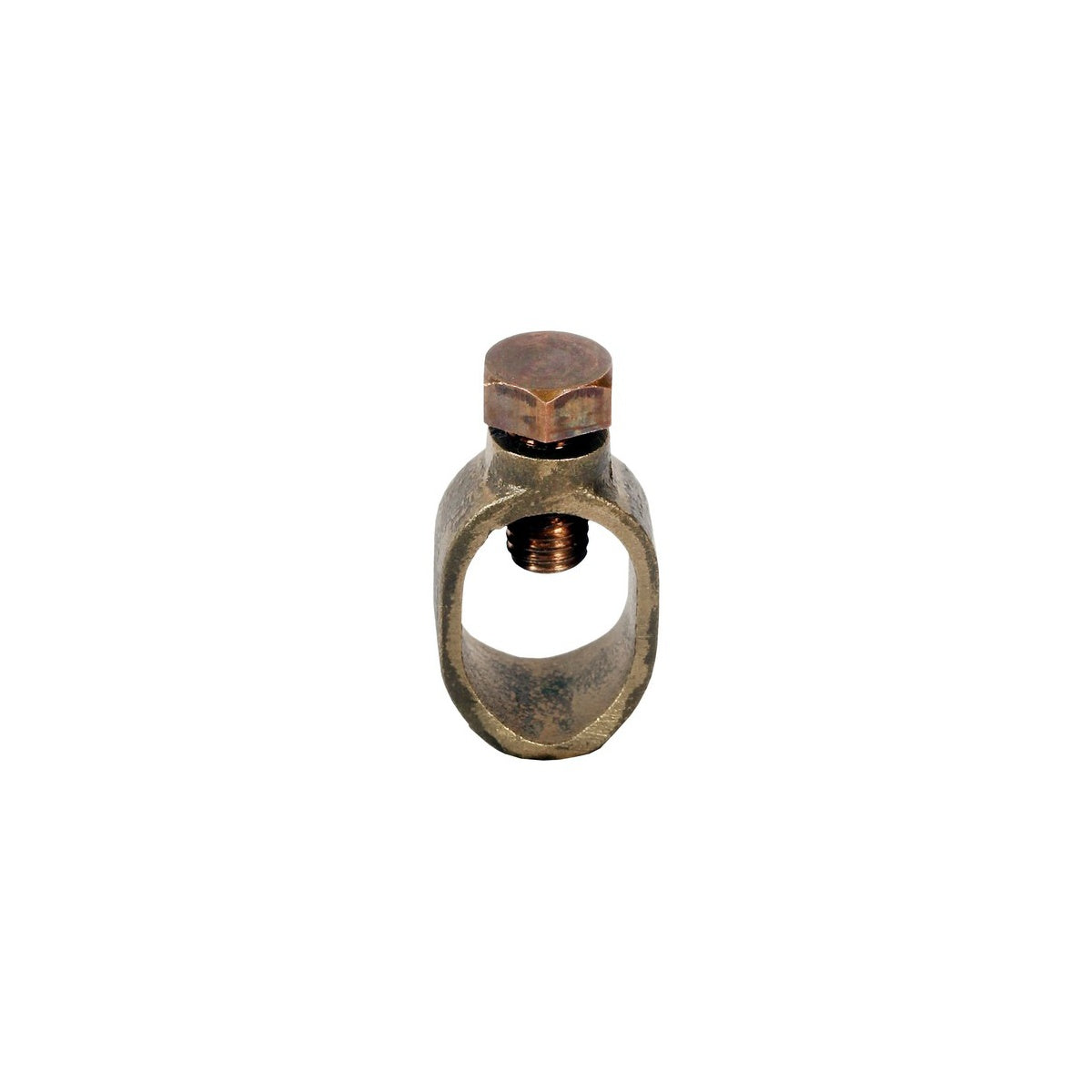

This ground rod clamp is designed for secure and reliable grounding connections in electrical installations. Suitable for direct burial applications, it ensures proper contact and alignment between ground wires and ground rods, making it an essential component for electrical distributors and switchgear suppliers managing grounding and bonding systems.
Specifications
- Material: Bronze
- Compatible Rod Diameter: 1/2", 5/8", 3/4"
- Wire Range: 1/0 to #10 AWG
- Screw Thread Size: 3/8"-16
- Dimensions (A x B): 0.59" x 2.38"
- Product Weight: 0.2350 lbs
- Manufacturer Part #: 90639
- UPC: 601986906395
- UL 467 Listed for Direct Burial in Soil and Concrete
Features
- Maintains proper contact and alignment between ground wire and ground rod
- Listed for use with copper bonded steel, stainless steel, and galvanized ground rods
- Cast of high-strength copper alloy containing 80% or more copper
- Equipped with a silicone bronze or stainless steel bolt for corrosion resistance
- Direct burial marked on clamps for easy identification
