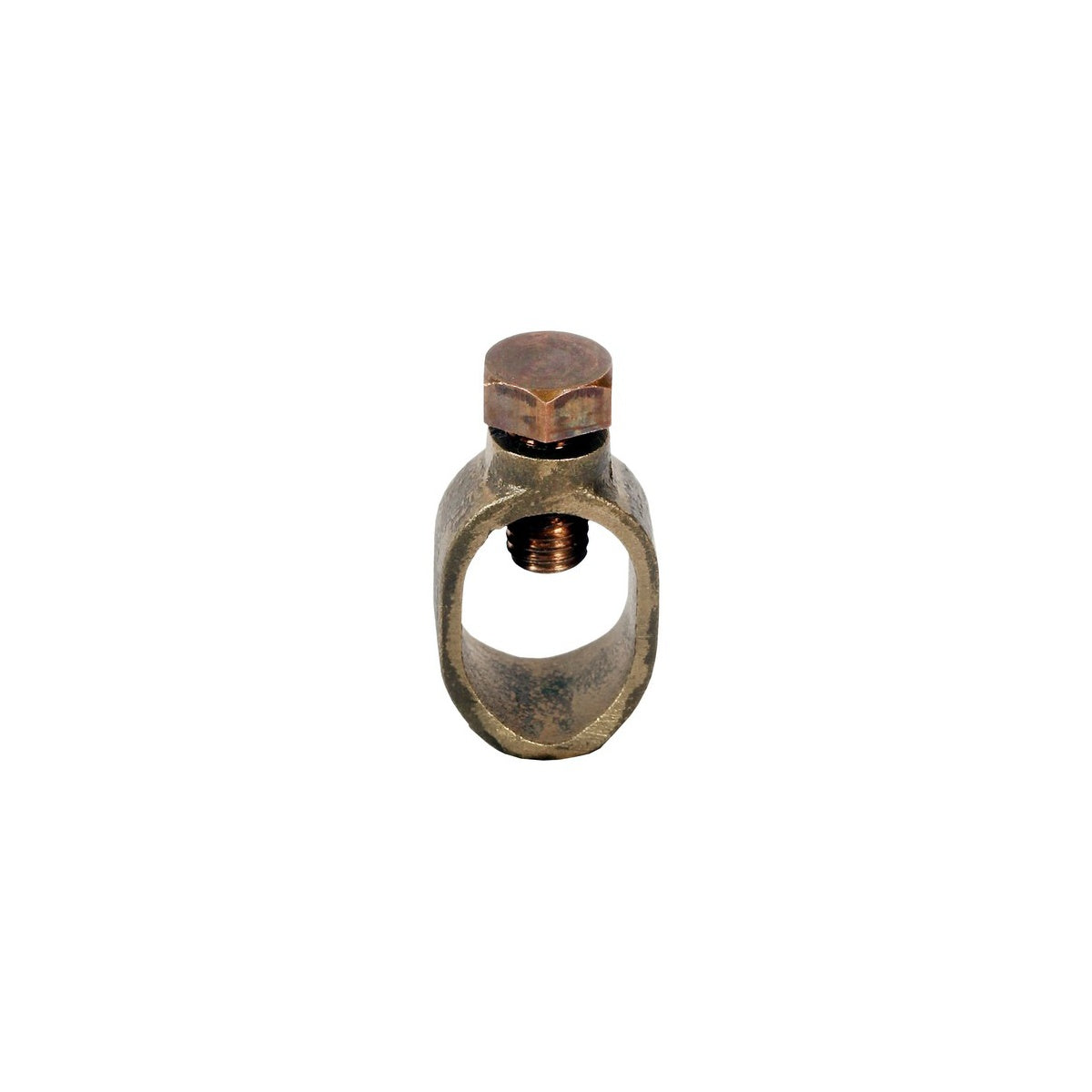

Ground Rod Clamps - Direct Burial 1/2" | Electrical Grounding Solutions

This Ground Rod Clamp is designed for secure and reliable grounding connections in electrical installations. It is suitable for direct burial applications, ensuring proper contact and alignment between ground wire and ground rod. Ideal for electrical distributors and switchgear suppliers requiring durable grounding components compatible with copper bonded steel, stainless steel, and galvanized ground rods.

Specifications

• Material: Bronze
• Rod Diameter: 1/2"
• Rebar Size: 3/8"
• Wire Range: #2 - #10
• Screw Thread Size: 5/16-18
• Dimensions A: 0.50 inches
• Dimensions B: 1.24 inches
• Product Weight: 0.1310 lbs
• Manufacturer: Morris Products
• Manufacturer Part #: 90634
• UPC: 601986906340

Features

• Maintains proper contact and alignment between ground wire and ground rod
• Cast of high strength copper alloy containing 80% or more copper
• Silicone bronze bolt for corrosion resistance
• Listed for use with copper bonded steel, stainless steel, and galvanized ground rods
• UL 467 approved for direct burial in soil and concrete
• Direct burial marked on clamps for easy identification

Downloads & Links

• Spec Sheet
