Ground Clamp - I Beam - Isolated From Beam #8 - #4 | Electrical Grounding Clamp

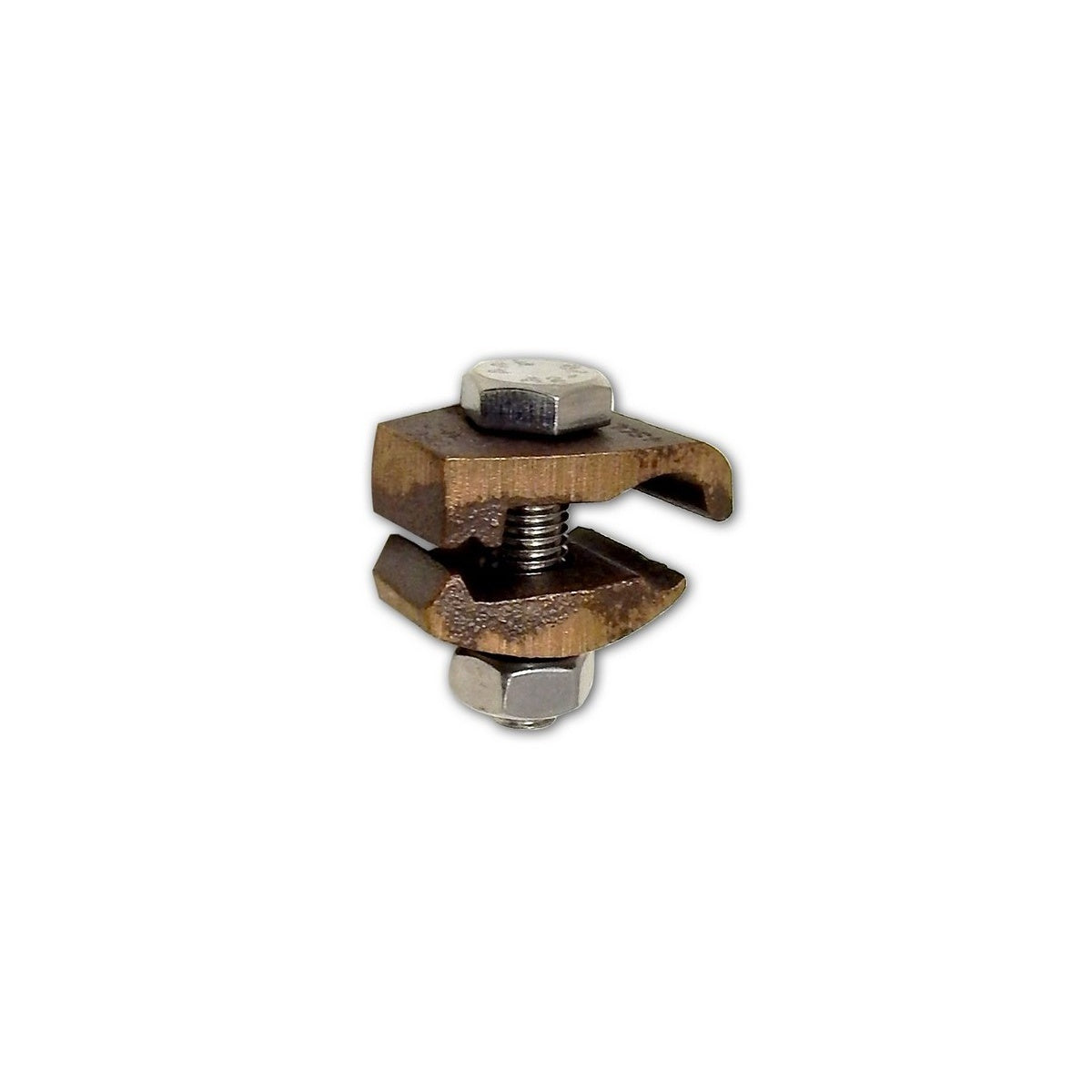

This Ground Clamp is designed to connect a ground conductor to an I-beam or other metal framing while keeping the ground electrode isolated from the beam. It is suitable for grounding applications in electrical distribution systems, lighting solutions, and wire and cable installations where secure and isolated grounding is required. The clamp is commonly used by electrical distributors and switchgear suppliers for structural steel grounding, cable trays, and fence posts.

Specifications

• Manufacturer: Morris Products
• Manufacturer Part #: 91715
• Conductor Range: #8 Solid to #4 Stranded
• Length: 1.25 in
• Width: 1 in
• Height: 1.625 in
• Bolt Size: 3/8 in
• Material: Copper
• Product Weight: 0.18 lbs
• UPC: 601986917155

Features

• Connects ground conductor to I-beam or other metal framing
• Isolates ground conductor from I-beam to prevent electrical continuity
• Connects one ground wire to 1/4" thick bar or stanchion
• Cast from high strength, high conductivity copper alloy
• Stainless steel bolts, nuts, and lock washers included
• UL 467 listed for direct burial grounding and bonding applications in soil and concrete
• cULus listed for safety and compliance
• Lay-in feature supports continuous grounding loops
