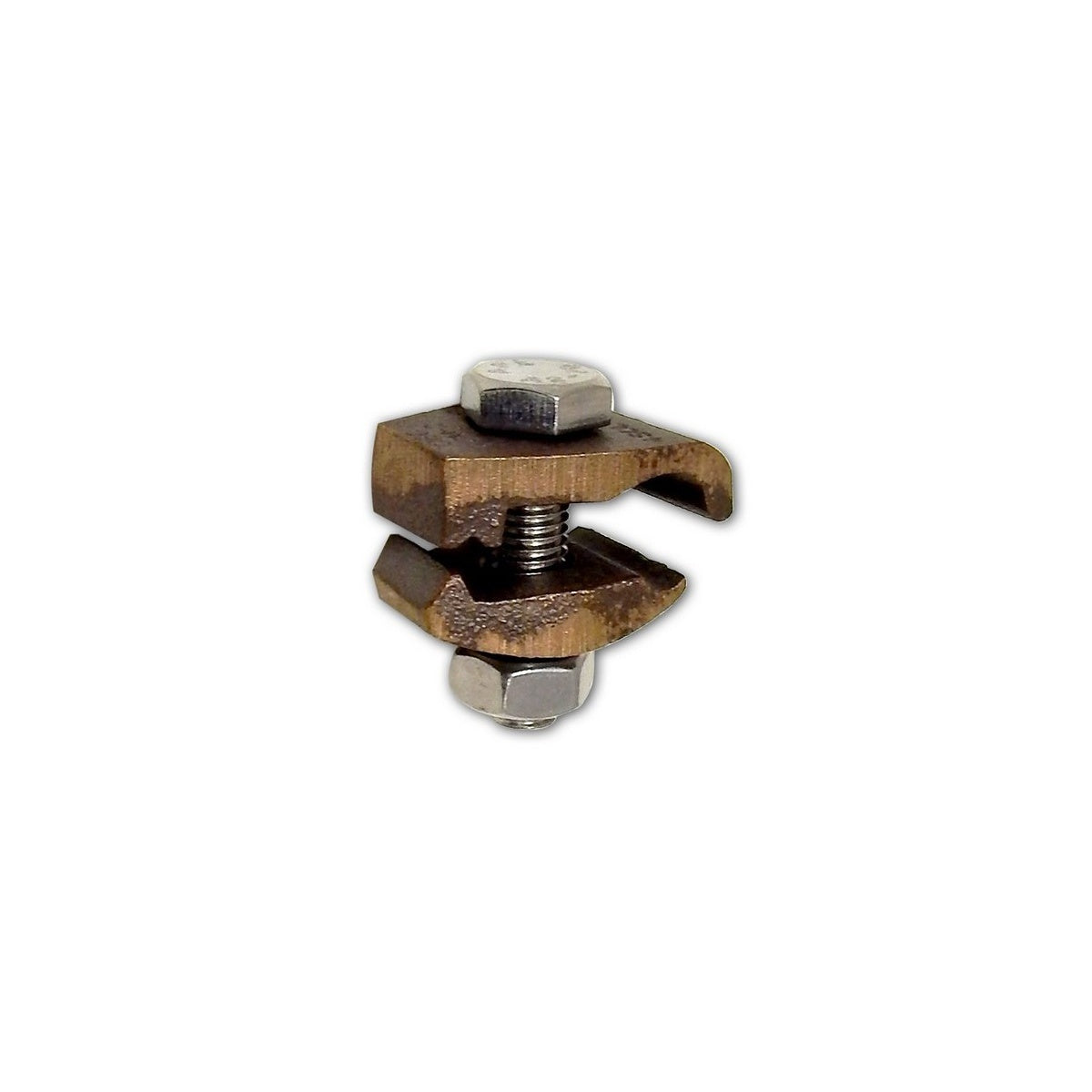

Ground Clamp - I Beam - Isolated From Beam #4 - 2/0 | Electrical Grounding Clamp

This Ground Clamp is designed for secure grounding connections to I-Beams or other metal framing in electrical installations. It isolates the ground electrode from the beam when grounding to structural steel, making it suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers requiring reliable grounding hardware.

Specifications

• Material: Copper
• Conductor Range: #4 Solid to 2/0 Stranded
• Dimensions (L x W x H): 1.625 in x 1.125 in x 1.75 in
• Bolt Size: 3/8 in
• Product Weight: 0.3450 lbs
• UL 467 Listed for Direct Burial Grounding and Bonding Applications
• cULus Listed

Features

• Connects ground conductor to I-Beam or metal framing
• Connects one ground wire to 1/4" thick bar or stanchion
• Popular for cable tray, fence posts, and structural steel grounding
• Lay-in feature for use with continuous grounding loops
• Cast of high-strength, high-conductivity copper alloy
• Stainless steel bolts, nuts, and lock washers for durability

Downloads & Links

• Spec Sheet
