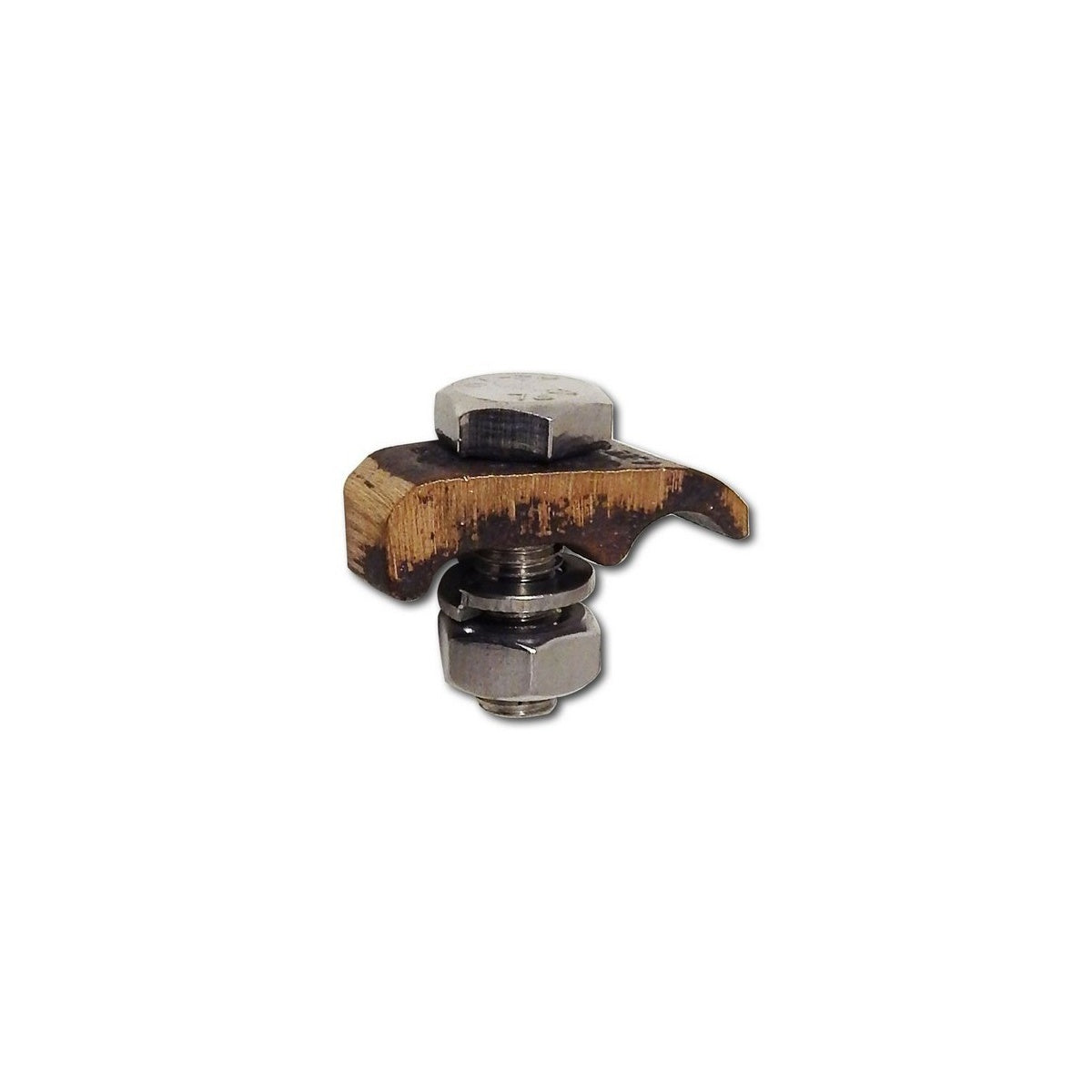

Ground Clamp - I Beam - Clamped To Beam #8 - #4 | Electrical Grounding Solutions

This Ground Clamp is designed to connect ground conductors to I-beams or metal frames, providing a secure and reliable grounding connection for electrical installations. It is suitable for use in continuous ground loops and is commonly applied in cable tray, fence posts, and structural steel grounding systems. The clamp is manufactured by Morris Products and is UL 467 listed for direct burial in soil or concrete, ensuring compliance with electrical safety standards. It is an essential component for electrical distributors and switchgear suppliers focusing on grounding and bonding solutions.

Specifications

• Manufacturer: Morris Products
• Manufacturer Part #: 91721
• Conductor Range: #8 Solid to #4 Stranded
• Dimensions: Length 1.25 in, Width 1 in, Height 1.625 in
• Bolt Size: 3/8 in
• Material: Copper
• Product Weight: 0.18 lbs
• UL Listing: UL 467 for Direct Burial in Soil or Concrete

Features

• Connects ground conductor securely to I-beam or metal frame
• Cast of high-strength, high-conductivity copper alloy
• Stainless steel bolts, nuts, and lock washers for corrosion resistance
• Lay-in feature enables easy installation with continuous ground loops
• Suitable for grounding cable trays, fence posts, and structural steel
