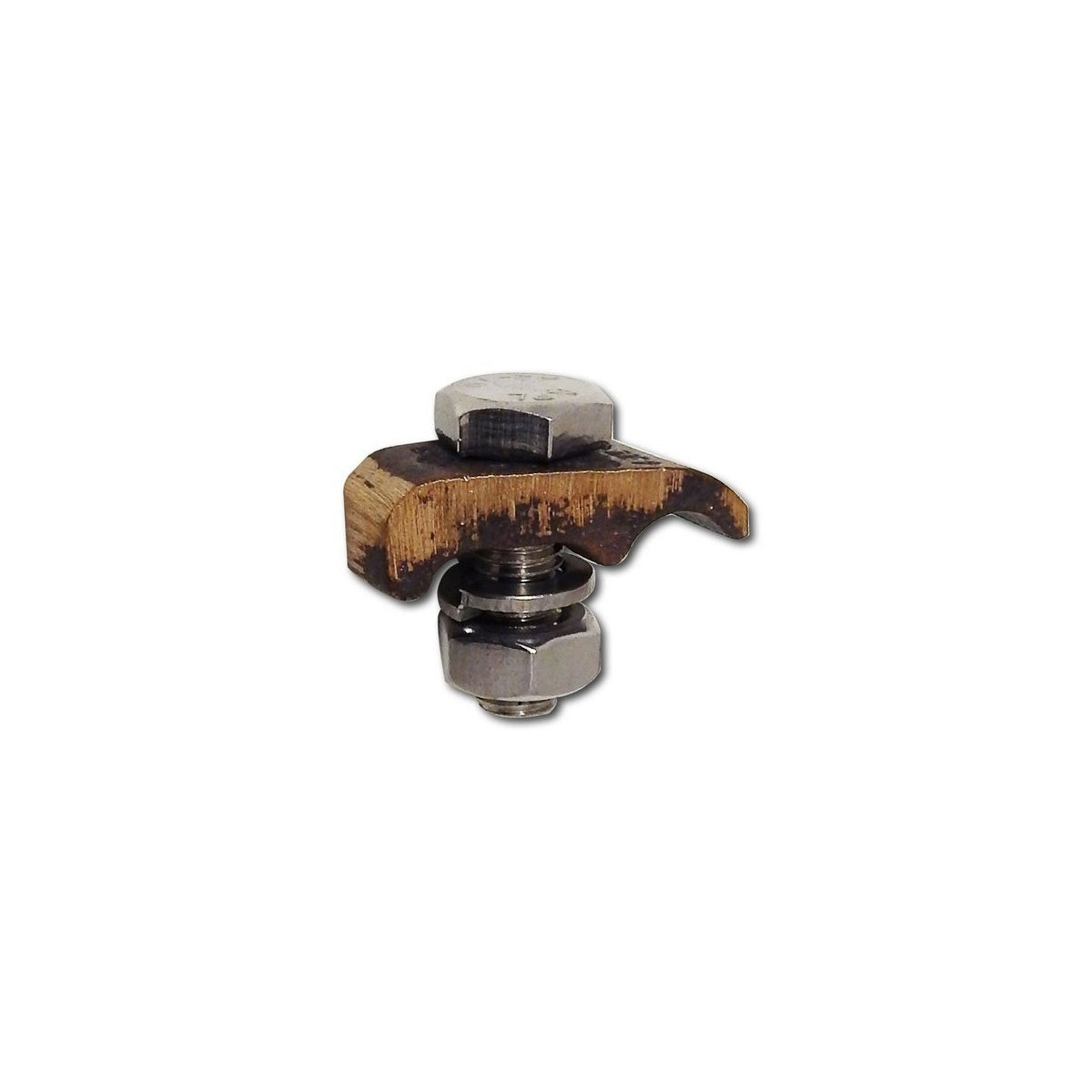

Ground Clamp - I Beam - Clamped To Beam #4 - 2/0 | Electrical Grounding Solutions

This Ground Clamp is designed to connect ground conductors to I-beams or metal frames, ensuring secure grounding in electrical installations. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding components for cable trays, fence posts, and structural steel. The clamp supports conductor sizes from #4 to 2/0 and features a lay-in design for continuous ground loops.

Specifications

• Material: Copper
• Conductor Range: #4 SOL to 2/0 STR
• Dimensions: Length 1-5/8 in, Width 1-1/8 in, Height 1-3/4 in
• Bolt Size: 3/8 in
• Product Weight: 0.3450 lbs
• Manufacturer: Morris Products
• Manufacturer Part #: 91722

Features

• Cast of high strength, high conductivity copper alloy
• Stainless steel bolts, nuts, and lock washers for corrosion resistance
• UL 467 listed for direct burial in soil or concrete
• Lay-in feature facilitates use with continuous ground loops
• Suitable for grounding to 1/4" thick bars or stanchions
• Popular for cable tray, fence posts, and structural steel grounding applications
