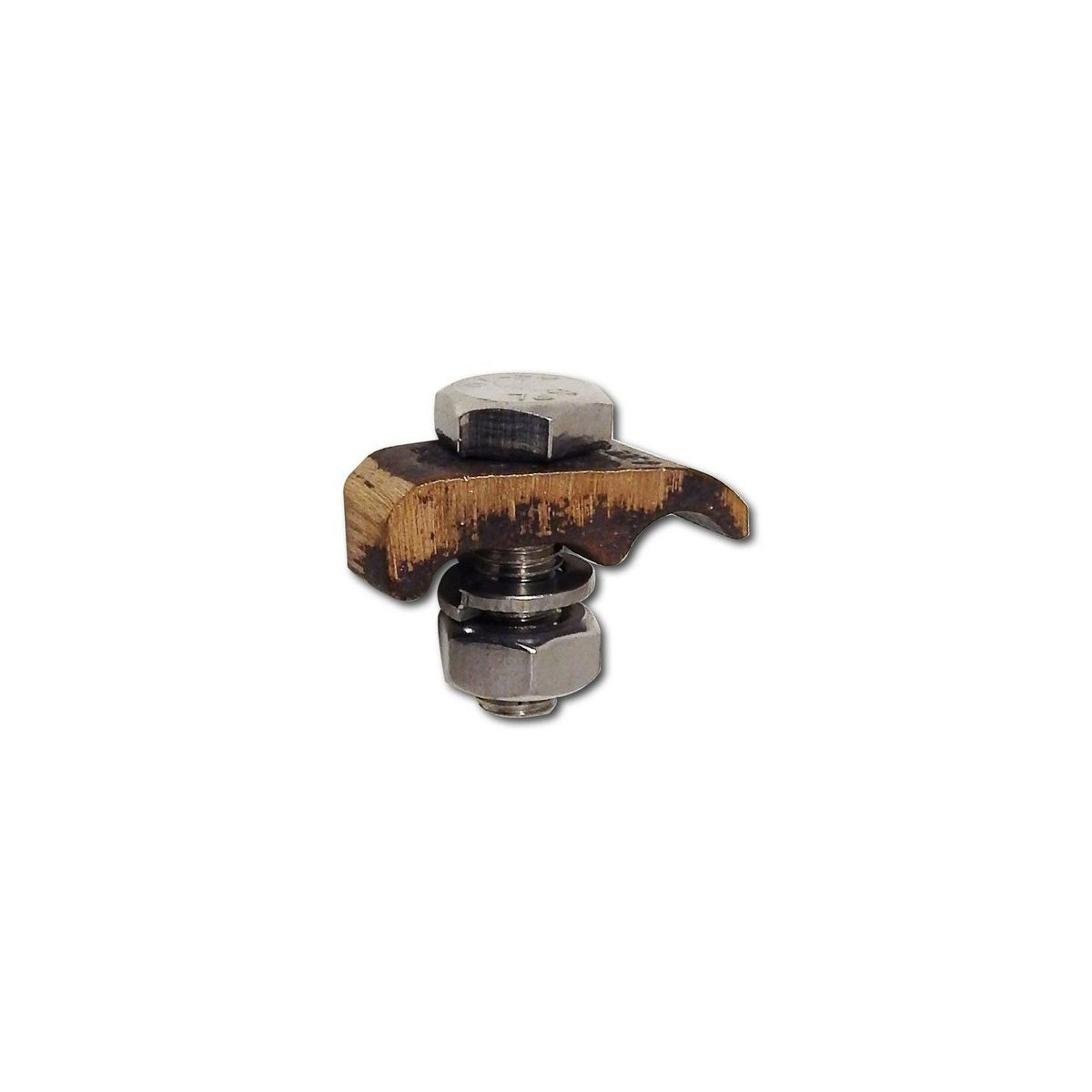

Ground Clamp - I Beam - Clamped To Beam 2/0 - 250 MCM Electrical Grounding Clamp

This Ground Clamp is designed to connect ground conductors to I-beams or metal frames, providing a secure grounding solution for electrical distributors and switchgear suppliers. It clamps one ground wire to a 1/4" thick bar or stanchion, making it suitable for grounding in cable tray, fence posts, and structural steel applications. The clamp supports conductor sizes from 2/0 SOL to 250 MCM and is suitable for use in continuous ground loops.

Specifications

• Material: Copper
• Conductor Range: 2/0 SOL to 250 MCM
• Dimensions (L x W x H): 2-1/8 in x 1-1/2 in x 2 in
• Bolt Size: 1/2 in
• Product Weight: 0.5250 lbs

Features

• Cast of high strength, high conductivity copper alloy
• Stainless steel bolts, nuts, and lock washers for durability
• Lay-in feature for use with continuous ground loops
• UL 467 listed for direct burial in soil or concrete
• Designed for secure grounding to I-beams and metal frames
