Ground Clamp, 1-1/4" to 2", Brass Screw with Bare Copper Wire
SKU: #328674
Part: #1313-B
UPC: 781747023131
Ground Clamp, 1-1/4" to 2", Brass Screw with Bare Copper Wire
SKU: #328674
Part: #1313-B
UPC: 781747023131
Total Price: $22.51 per each Sold in increments of 1 each
Description

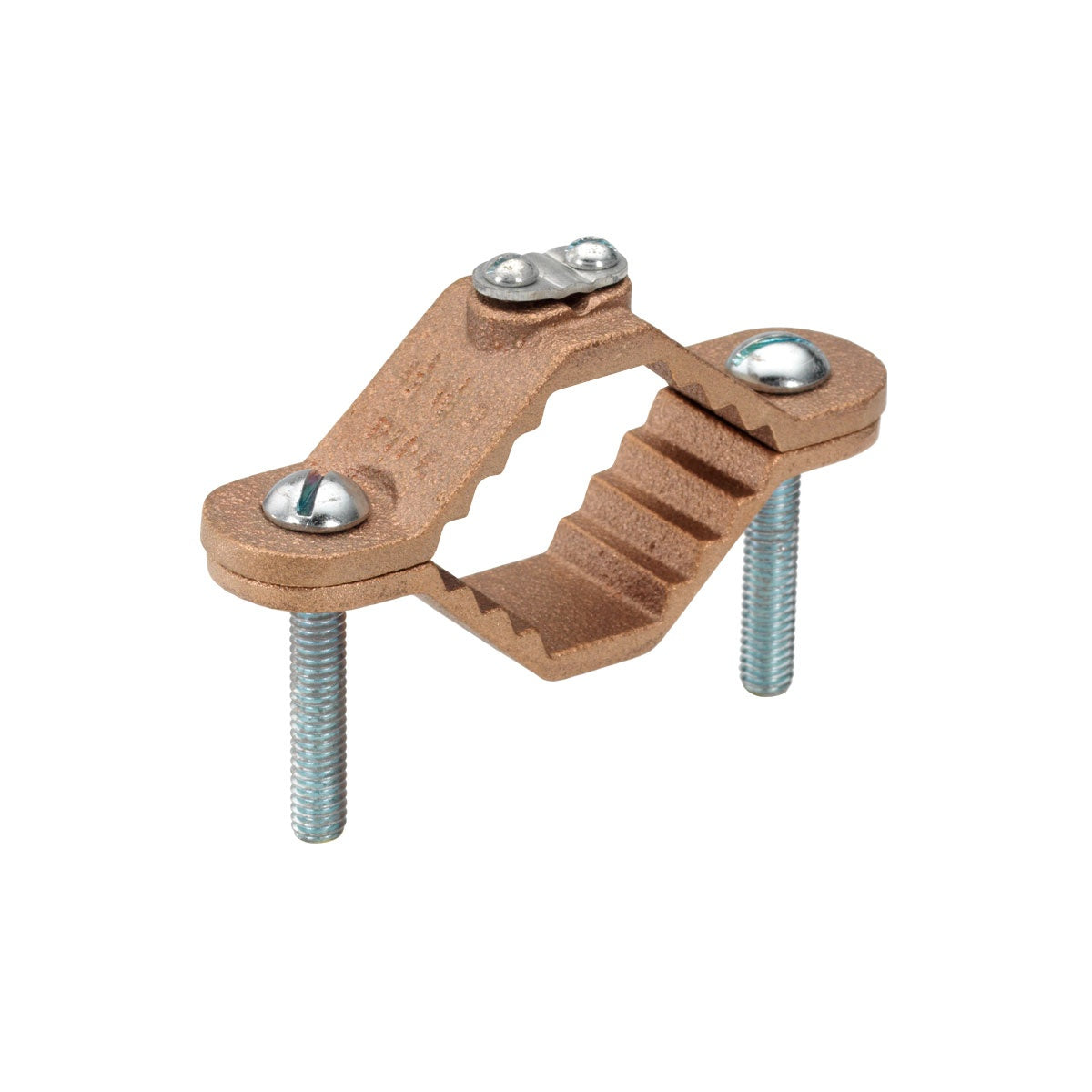

Ground Clamp, 1-1/4" to 2", Brass Screw with Bare Copper Wire – Grounding Clamps
This brass ground clamp is designed for making secure connections with No. 4, 6, or 8 AWG bare copper ground wire and grounding pipes or electrodes ranging from 1-1/4 inch to 2 inches. Suitable for electrical distributors and switchgear suppliers, it provides corrosion-resistant grounding solutions essential for reliable electrical grounding systems.
Specifications
- Material: Brass
- Finish: Plain
- Conductor Size: #4, 6, 8 AWG
- Trade Size: 1-1/4" to 2"
- Length: 4.25 in
- Width: 3 in
- Product Weight: 0.61 lbs
- Manufacturer Part #: 1313-B
- Country of Origin: India
- Certifications: UL File Number E20412, CSA File Number LR39354, Federal Specification A-A-50552, NEMA Standard FB-1, UL Standard UL-514B
Features
- Corrosion-resistant brass construction for durability in grounding applications
- Designed to connect bare copper ground wire with grounding pipe or electrode
- Compatible with 1/2 inch through 4 inch grounding pipe or grounding wire electrode
- Includes brass screws for secure fastening
- Plain finish suitable for standard grounding installations
