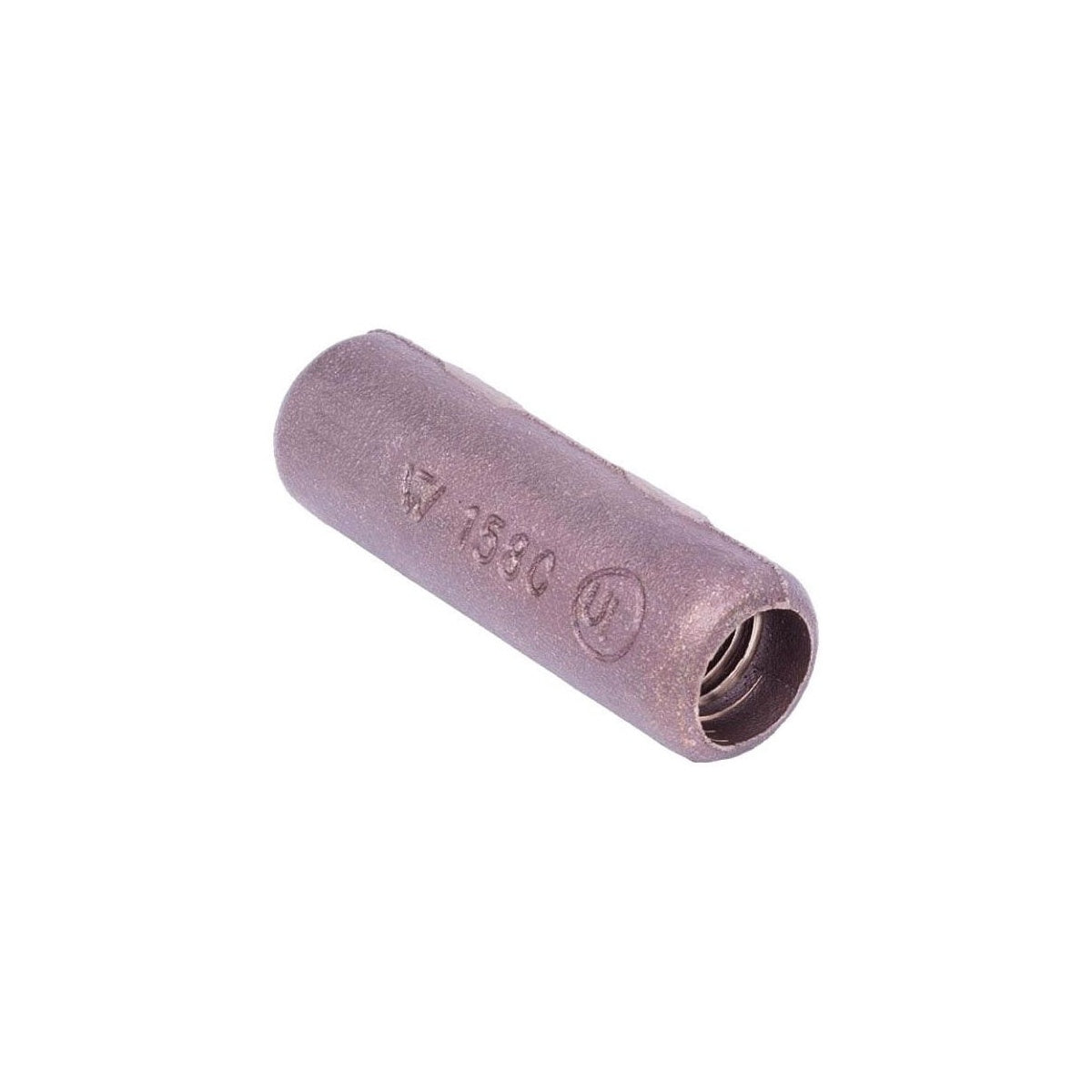

GRC12 Ground Rod Coupler - Threaded Ground Rod Connector

The GRC12 Ground Rod Coupler is a threaded connector designed for sectional ground rods, providing a reliable electrical connection in grounding systems. Manufactured by Harger, this coupler is made of corrosion-resistant silicon bronze, suitable for use by electrical distributors and switchgear suppliers focusing on grounding and lightning protection solutions. It is UL listed for Canada and the US, ensuring compliance with industry standards.

Specifications

• Application: Threaded ground rod coupler for sectional ground rod
• Nominal Diameter: 1/2 Inch
• Thread Pitch (TPI): 12
• Length: 2.5 in
• Width: 1 in
• Height: 1 in
• Material: Silicon Bronze
• Applicable Standard: UL (Canada and US)
• Product Weight: 0.2810 lbs
• Manufacturer: Harger
• Manufacturer Part #: GRC12

Features

• Corrosion resistant silicon bronze construction
• Threaded design ensures secure connection for sectional ground rods
• UL listed for Canada and US compliance
• Compact dimensions suitable for grounding applications requiring durable connectors

Downloads & Links

• Catalog
• CAD Drawing
