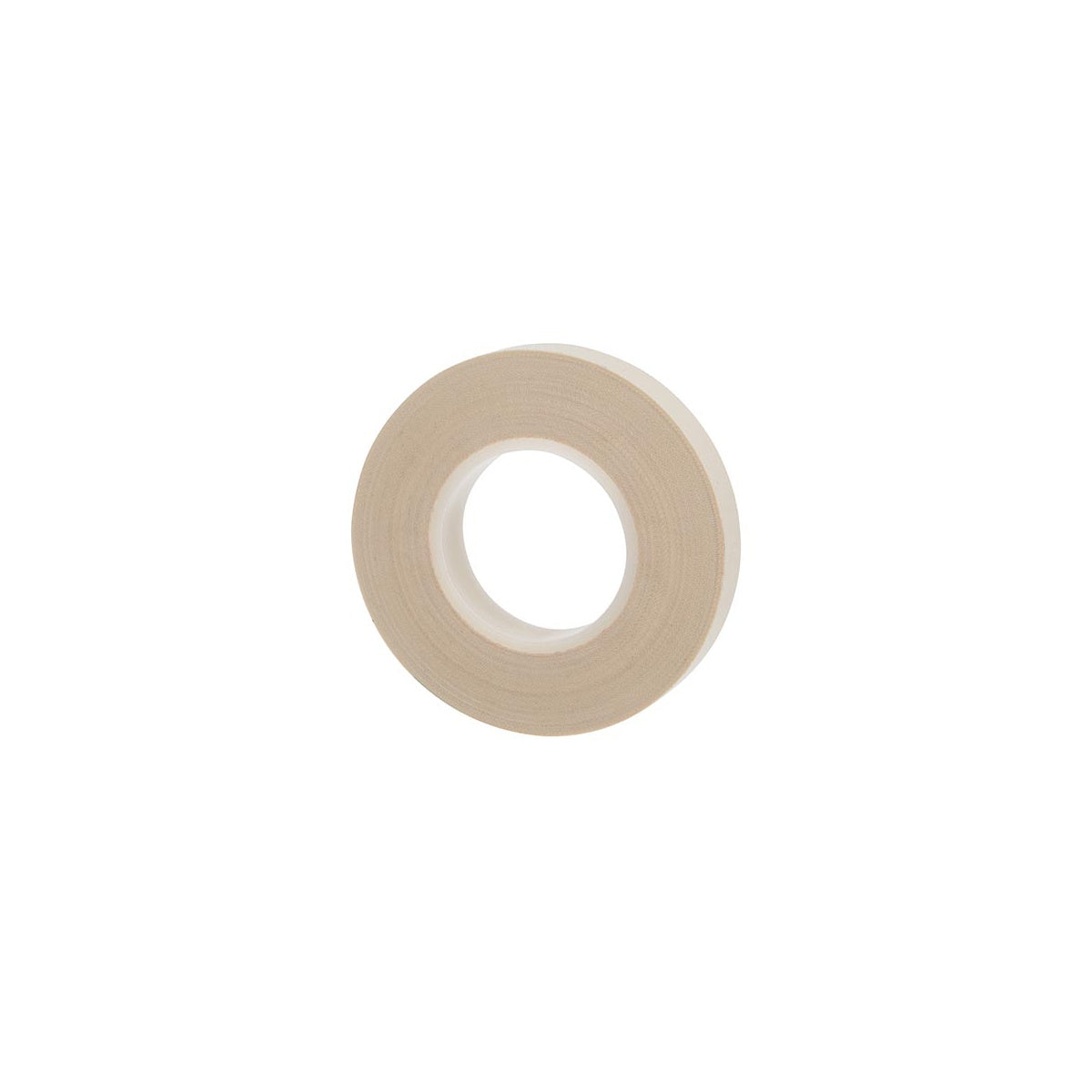

Glass Cloth Tape, .75in
SKU: #390745
Part: #WW-GC-75
UPC: 662381365682
Glass Cloth Tape, .75in
SKU: #390745
Part: #WW-GC-75
UPC: 662381365682
Total Price: $24.42 per each Sold in increments of 1 each
Description
Glass Cloth Tape, .75in – High Temperature Electrical Tape
Glass Cloth Tape, .75in by NSI Industries, is designed for insulating and protecting high temperature electrical connections on solid dielectric cable up to 600 volts. This tape is suitable for electrical distributors and lighting solutions providers requiring durable wire and cable protection, as well as switchgear suppliers needing high-performance binding and harnessing materials. Its woven glass fabric construction combined with a thermosetting rubber-based adhesive ensures reliable adhesion and mechanical strength in demanding environments.
Specifications
- Width: 0.75 in
- Length: 66 ft
- Thickness: 7 mils (0.007 in)
- Color: White
- Tensile Strength: 171 lb/in
- Elongation at Break: 5%
- Adhesion to Steel: 0.97 lb/in
- Dielectric Breakdown: 2.5 kV
- Insulation Resistance: 5000 MOhm
- Service Temperature Rating: 266 °F
- Manufacturer Part #: WW-GC-75
- Product Weight: 0.1 lb
Features
- Woven glass fabric backing for high mechanical strength
- Thermosetting rubber-based pressure-sensitive adhesive
- High temperature resistant up to 266 °F
- Excellent tear and abrasion resistance
- Suitable for binding, harnessing, and securing high temperature connections
