Features

• Available in 13 colors
• Dual wiring code label allows connector to be wired to either T568A or T568B
• Individual port configurability allows specification flexibility
• Robust one-piece lead-frame design increases power-carrying capacity and efficiency, while providing improved durability
• Narrow connector allows high port density in a small area
• Will exceed IEEE 802.3bt standard up to 0.7 amps (140 watts) continuously
• Supports high-megabit and shared-sheath applications
• Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
• IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts), Type 4 (90 Watts)
• Cisco UPoE (60 Watts), UPoE+ (90 Watts)
• Power over HDBaseT™ PoH (95 Watts)
• UL 2043 Plenum Certified

Specifications

• Country of Origin: United States
• RoHS Compliant: False

Standards and Certifications

• ACA: Compliant
• CSA: Certified
• FCC: Part 68 Compliant
• NEC: Article 800 Compliant
• TIA/EIA: TIA-568-B
• UL: cULus Listed

Material Specifications

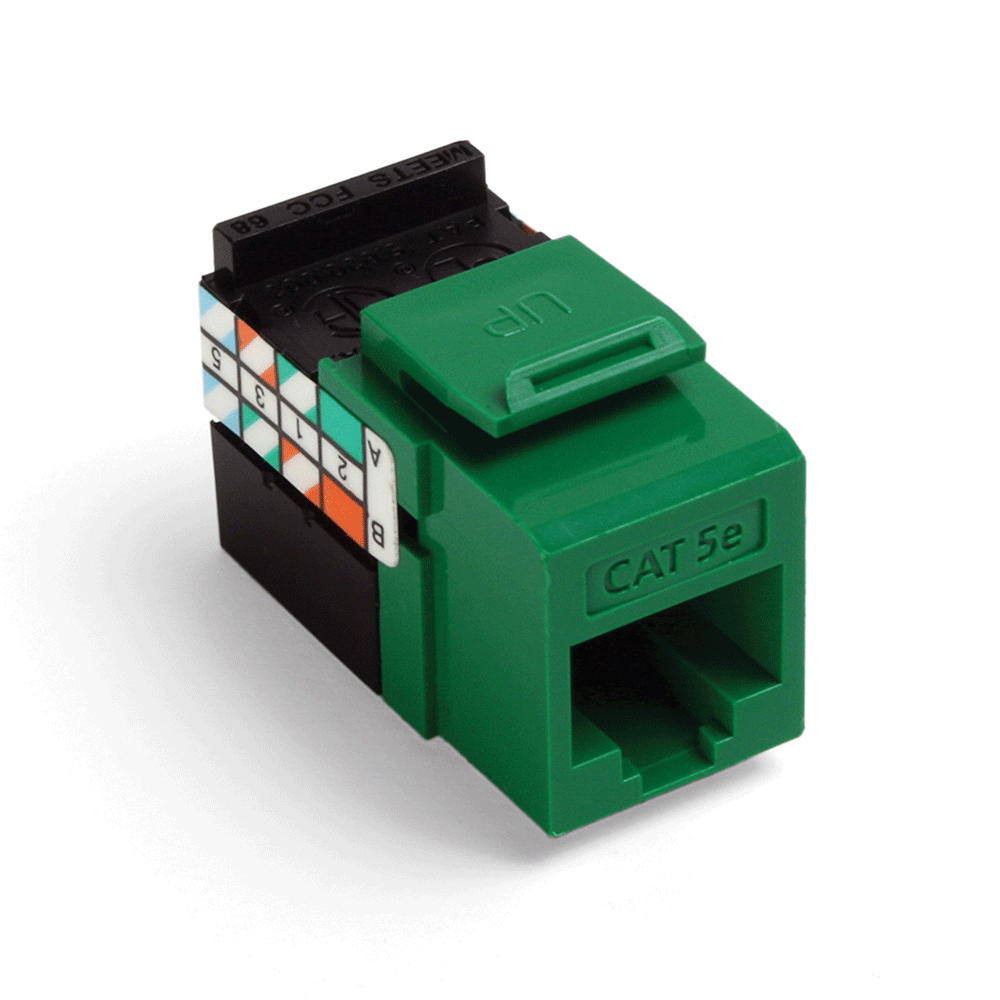

• Body Color: Green
• Body Material: High-Impact Fire-Retardant Plastic
• Contact Base Material: Phosphor Bronze

Product Features

• Brand: GigaMax
• Category Rating: Cat 5e
• Color: Green
• Flammability: Rated V-0 per UL 94
• Module Style: Connector
• Packaging: Single Pack 1/bag
• Shielding: UTP
• Standards and Certifications: TIA/EIA cULus Listed
• Warranty: 1 Year Limited

Mechanical Specifications

• Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
• Connector Feature: Channel-Rated
• Position / Conductor: 8P8C
• Product ID: Permanently laser-engraved
• Style Name: GigaMax
• Termination Type: 110 Punchdown
• Wiring Standard: T568A T568B

Performance Specifications

• Module Type: Category 5e

Downloads

Product Specification

Instruction Sheet

Dimensional Drawing

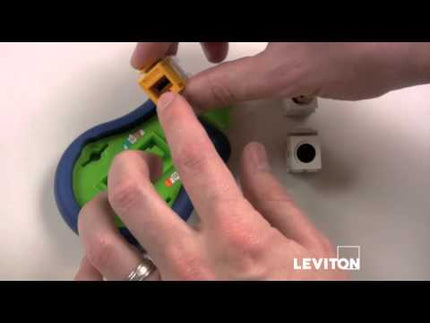

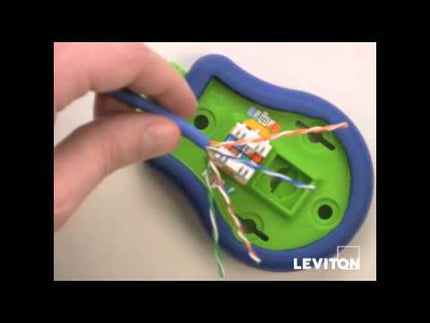

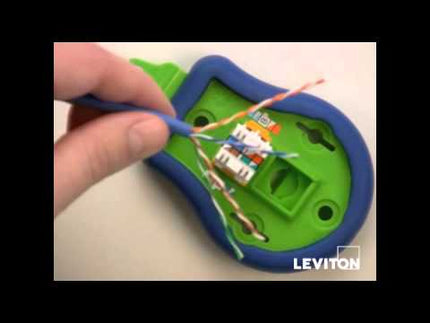

Videos
