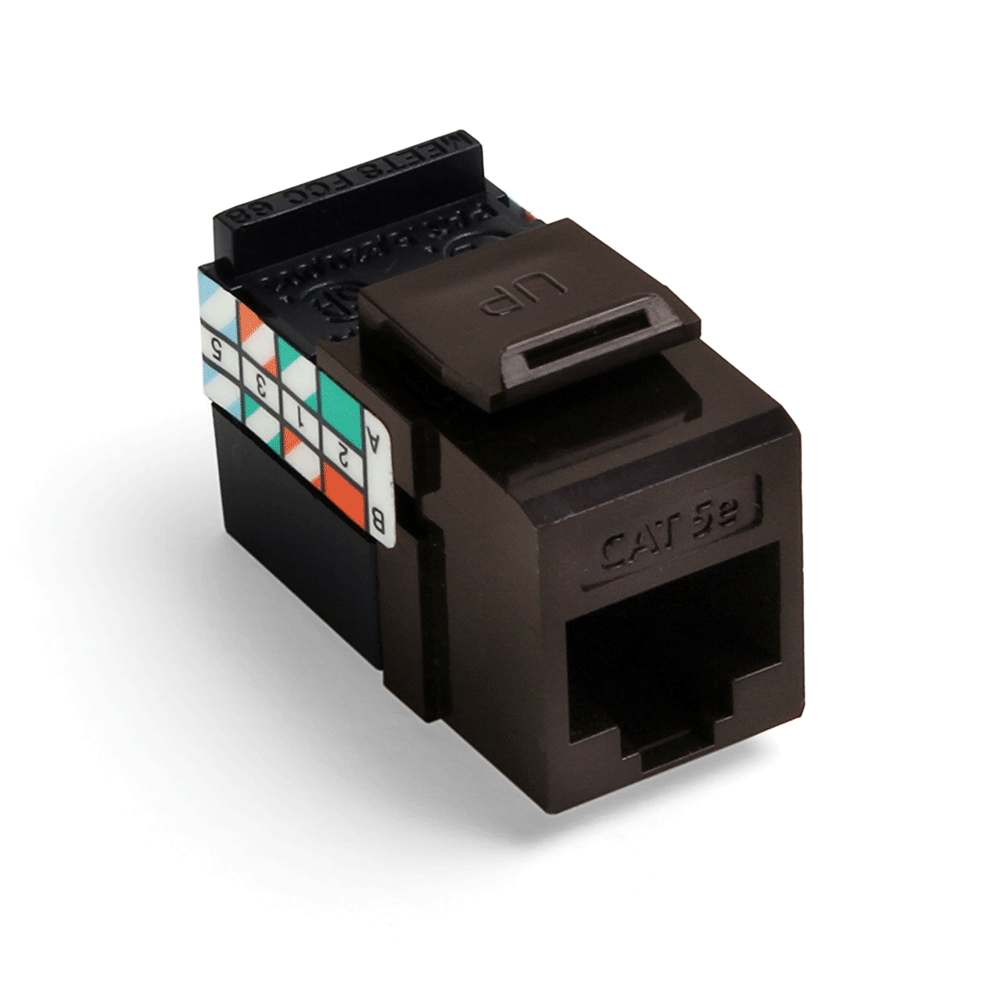

GIGAMAX™ Cat 5e QUICKPORT™ Jack, Brown - Category 5e UTP Connector

The GIGAMAX Cat 5e UTP QUICKPORT Jack is designed for use with any Category 5e UTP structured cabling system. This modular jack features a one-piece narrow design that supports high port density in a compact area, making it suitable for residential, MDU, and high-megabit applications. It is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable connectivity components and switchgear suppliers needing compliant network interface modules.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 5G108-RB5
• Body Material: High-Impact Fire-Retardant Plastic
• Color: Brown
• Product Weight: 1.1250 oz
• Country of Origin: United States
• Flammability Class: Rated V-0 Per UL 94
• Compliance Standards: ANSI/TIA-568.2-D (Cat 5e), ISO/IEC 11801-1 (Class D), EN 50173-1 (Class D), ANSI/TIA-1096-A, c(UL)us Listed
• Operating Temperature: -10 ºC to +60 ºC (+14 ºF to +140 ºF)
• Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Humidity: 95% relative humidity, non-condensing
• Dimensions: 29.9 mm (L) x 22.5 mm (H) x 16.1 mm (W)
• Termination: 110-type IDC with solder-plated phosphor bronze contacts

Features

• Supports both T568A and T568B wiring schemes with dual wiring code labels
• One-piece narrow design enables high port density in limited space
• Robust lead-frame design increases power-carrying capacity and durability
• Exceeds IEEE 802.3 standard up to 0.7 amps per conductor continuously
• Compatible with QUICKPORT housings for surface-mount, flush-mount, modular furniture outlets, patch panels, and patch blocks
• Supports high-megabit and shared-sheath applications
• Available in 13 colors for port identification and specification flexibility
• UL 2043 Plenum Certified and RoHS 3 compliant
• Made in the USA
